2681-G 11/06
Before starting installation of your new enclosure, carefully read all instructions
and lay out parts to become familiar with their identity.
USE OF ANCHORS
Anchors are furnished with every enclosure. However, the use of anchors is not recommended when attaching your enclosure
to a fiberglass unit or wall surround with board reinforced mounting areas. Mounting holes in this case should be drilled with
an 1/8" drill bit.
Mounting of this unit on tile requires the use of anchors. Special care must be taken not to crack the tile. Before drilling holes
in the tile, lightly chip glazed surface of tile at the desired locations. Drill holes using a 3/16" masonry drill bit. Insert anchors
into the holes making certain that ring on large end of anchor meets the surface of the tile.
CLEANING
SEALING
The use of a caulking compound can assure a water-tight seal when applied along outside edge of the enclosure where metal
and bath meet. If desired, caulk inside of enclosure where jambs meet walls.
C leaning and care of your enclosure is important to its lasting beauty. We suggest using a nonabrasive liquid cleaner.
Never use scouring powder or pads.
Do not try to cut the mirrors or glass used in this enclosure.
Tempered glass and mirrors will disintegrate if cut.

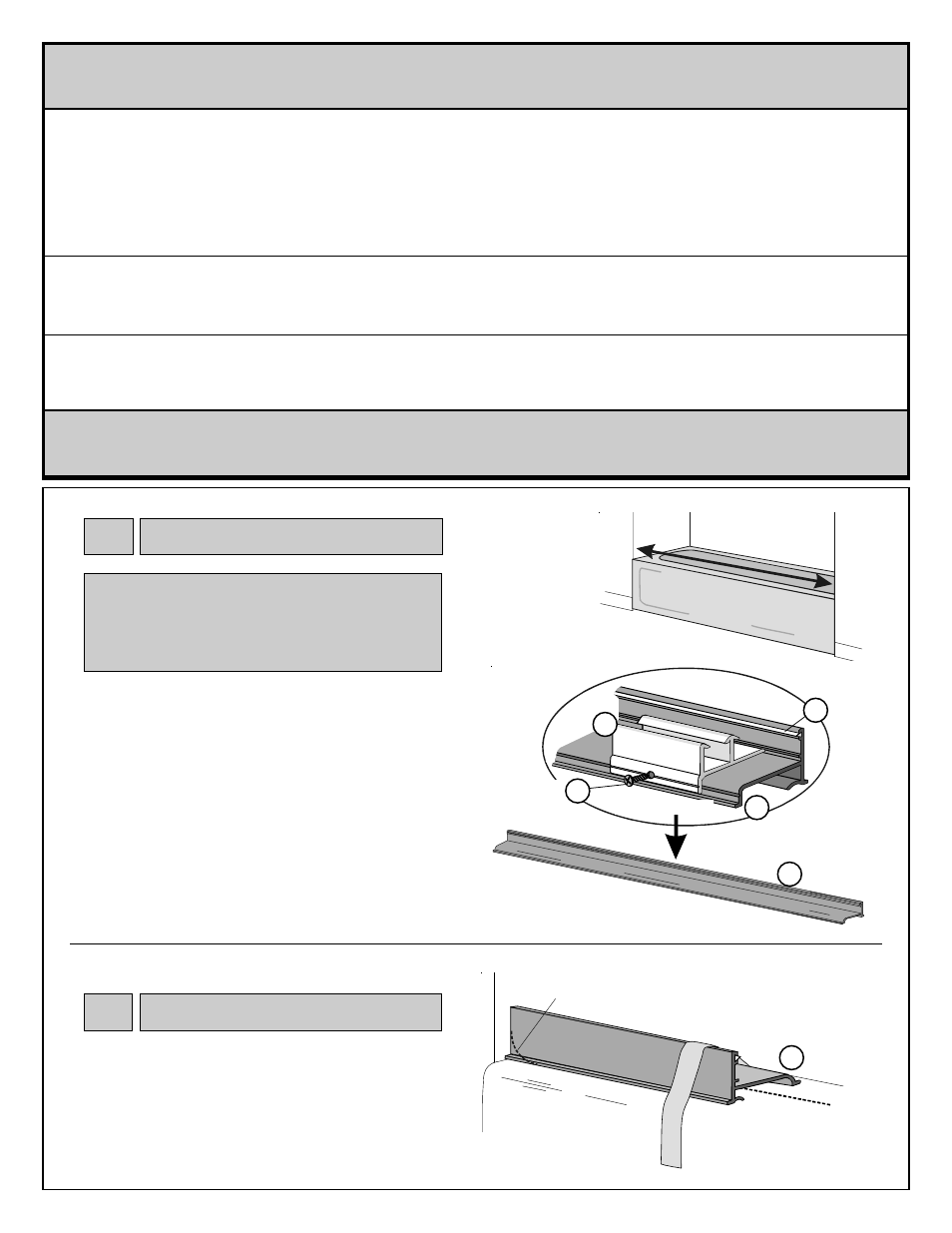

Measure wall to wall opening at tub level and cut sill to
that measurement.
Slide vinyl track guide (J) into small groove on upright
of sill. Trim ends flush with ends of sill.
Locate center of sill. Position guide (G) at center of sill
with curved leg fitting over curve of sill, and back of guide
fitting under small lip on back upright of sill.
Position 1/8" drill bit in small groove on curved leg of
guide, and drill through guide into sill. Secure guide to
sill with 8A x 3/8" pan head screw (N).
Measure
INSIDE OF BATH
Vinyl Track
Guide
Sill
A
J
8A x 3/8" Pan
Head Screw
Sill A
Place guide
at center of sill
N
Guide G
Due to the manufacturing process, there may be
rack marks present at one end of your sill and
header. Sill and header must be trimmed to fit your
individual opening. When cutting sill and header,
make certain to trim off end with rack marks.
1 Sill
(A)
/ Guide
(G)
2 Sill
(A)
Position sill on centerline of tub with tall edge toward
outside of tub. If necessary for a smooth fit, file corners
of sill to fit contour of your unit. Tape sill to tub with
masking tape. This will help hold sill in place while
positioning jambs.
File to fit contour
of unit if needed
Masking
Tape
OUTSIDE OF BATH
Centerline
Sill
A
