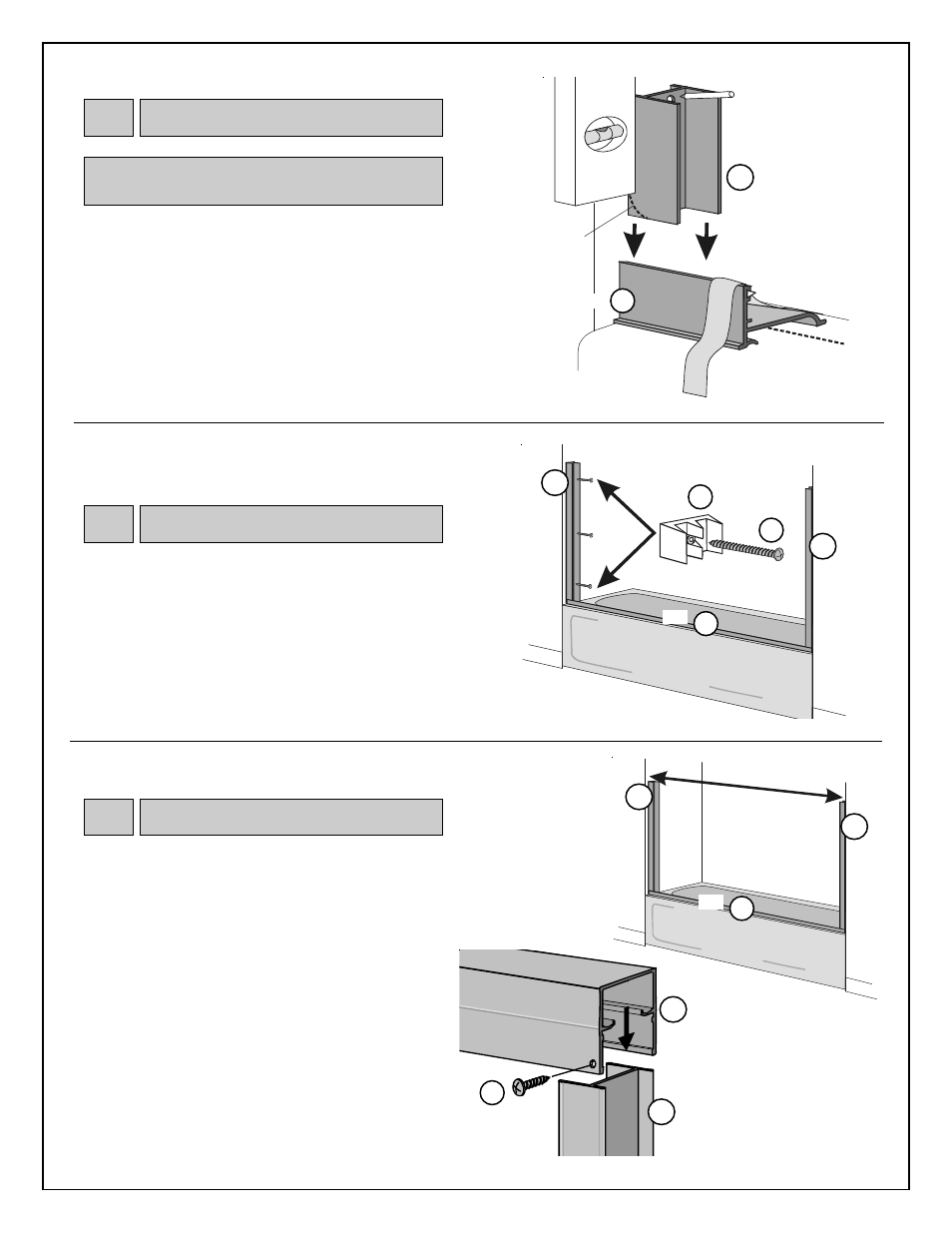

Measure from wall to wall (over the top of both jambs)
and cut header (C) to that measurement.
Lower header over jambs until seated squarely on legs
of both jambs.
Secure header to jambs by drilling a 1/8" hole through
header into jambs on inside of tub near walls. Join
using 8A x 3/8" pan head screws (N).
Position jamb (B) against wall with short legs toward
wall and notched end of jamb resting on sill. If neces-
sary for a smooth fit, file back of jambs (short legs) to fit
contour of your unit. Align jamb vertically using a level
and mark wall through prepunched holes. Repeat
procedure with remaining jamb.
Remove jambs from tub and drill where marked using
1/8" drill bit.
Reposition jambs on tub and mount to wall using
8A x 1 1/4 " pan head screws (I). Top and bottom
holes are mounting positions for bumpers (H).
When anchors (M) are used holes should be drilled
using 3/16" drill bit. (Use masonry bit for tile.) B
Sill
Mark wall through
pre-punched
holes and drill.
Level
File to fit
contour of
unit if
needed
Masking Tape
B
B
Jamb
Jamb
Jamb
Jamb
B
B
OUTSIDE OF BATH
Jamb
Bumper
H
8A x 1 1/4"
Pan Head
Screw
I
OUTSIDE OF BATH
N
INSIDE OF BATH
Jamb
8A x 3/8"
Pan Head
Screw
Header
B
C
A
Sill
Measure
A
Centerline
A
Sill
3 Jambs
(B)
4 Jambs
(B)
/ Bumpers
(H)
5 Header
(C)
