2CC6 4/05

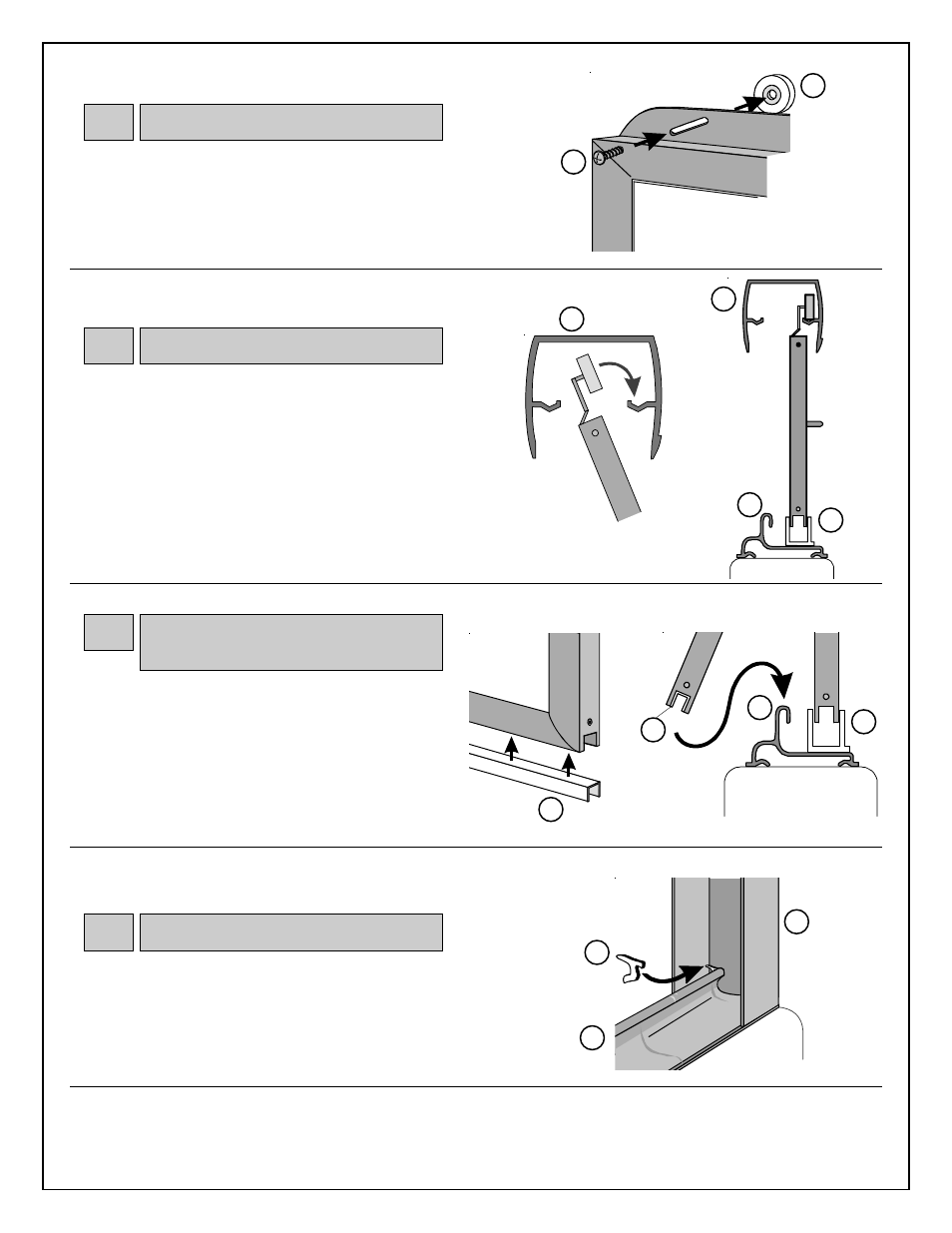

Mount rollers (H) to top channel of doors using
8-32 x 3/8" truss head screws (I). Rollers are to be
mounted on same side of doors as towel bars and at
the midpoint of slots. Rollers may be positioned up or
down to adjust for out of plumb conditions.
Lift inside door panel into header with towel bar facing
inside of bath. Seat rollers on roller track inside of
header while guiding bottom of door into guide on sill.
Inside
Door
Panel
Header
Guide
Water
Deflector
O
Jamb
Roller
INSIDE OF BATH
8-32 x 3/8"
Truss Head
Screw
Header
N
Snap door silencer (E) into bottom of outside door
panel.
Lift outside door into header with towel bar facing
outside of bath. Position bottom channel of door over
front high ridge of sill as rollers are seated in header.
Place water deflector (O) in position between high
ridge of sill and side of jamb.
Repeat for opposite side.
Inside
Door
Panel
Tub
Outside
Door
Panel
Door
Silencer
Door
Silencer
Outside
Door
Panel
Inside
Door
Panel
E Sill
Guide
A
N
E
Seal unit by caulking along outside edge of enclosure where metal and bath meet, especially where sill and tub meet. If
desired, caulk inside enclosure where jambs meet walls.
Sill
A
Sill
A
B
OUTSIDE
OF BATH
OUTSIDE
OF BATH
OUTSIDE
OF BATH
6 Rollers
(H)
7 Hanging Inside Door Panel
8 Door Silencer
(E)
/ Outside Door
Panel
9 Water Deflector
(O)
C
H
I
C
