2CC6 4/05
Before starting installation of your new enclosure, carefully read all instructions
and lay out parts to become familiar with their identity.
USE OF ANCHORS
Anchors are furnished with every enclosure. However, the use of anchors is not recommended when attaching your enclosure
to a fiberglass unit or wall surrounds with board reinforced mounting areas. Mounting holes in this case should be drilled with
an 1/8" drill bit.
Mounting of this unit on tile requires the use of anchors. Special care must be taken not to crack the tile. Before drilling holes
in the tile, lightly chip glazed surface of tile at the desired locations. Drill holes using a 3/16" masonry drill bit. Insert anchors
into the holes making certain that ring on large end of anchor meets the surface of the tile.
CLEANING
SEALING
The use of a caulking compound can assure a water-tight seal when applied along outside edge of the enclosure where metal
and bath meet. If desired, caulk inside of enclosure where jambs meet walls.
C leaning and care of your enclosure is important to its lasting beauty. We suggest using a nonabrasive liquid cleaner.
Never use scouring powder or pads.
Do not try to cut the mirrors or glass used in this enclosure.
Tempered glass and mirrors will disintegrate if cut.

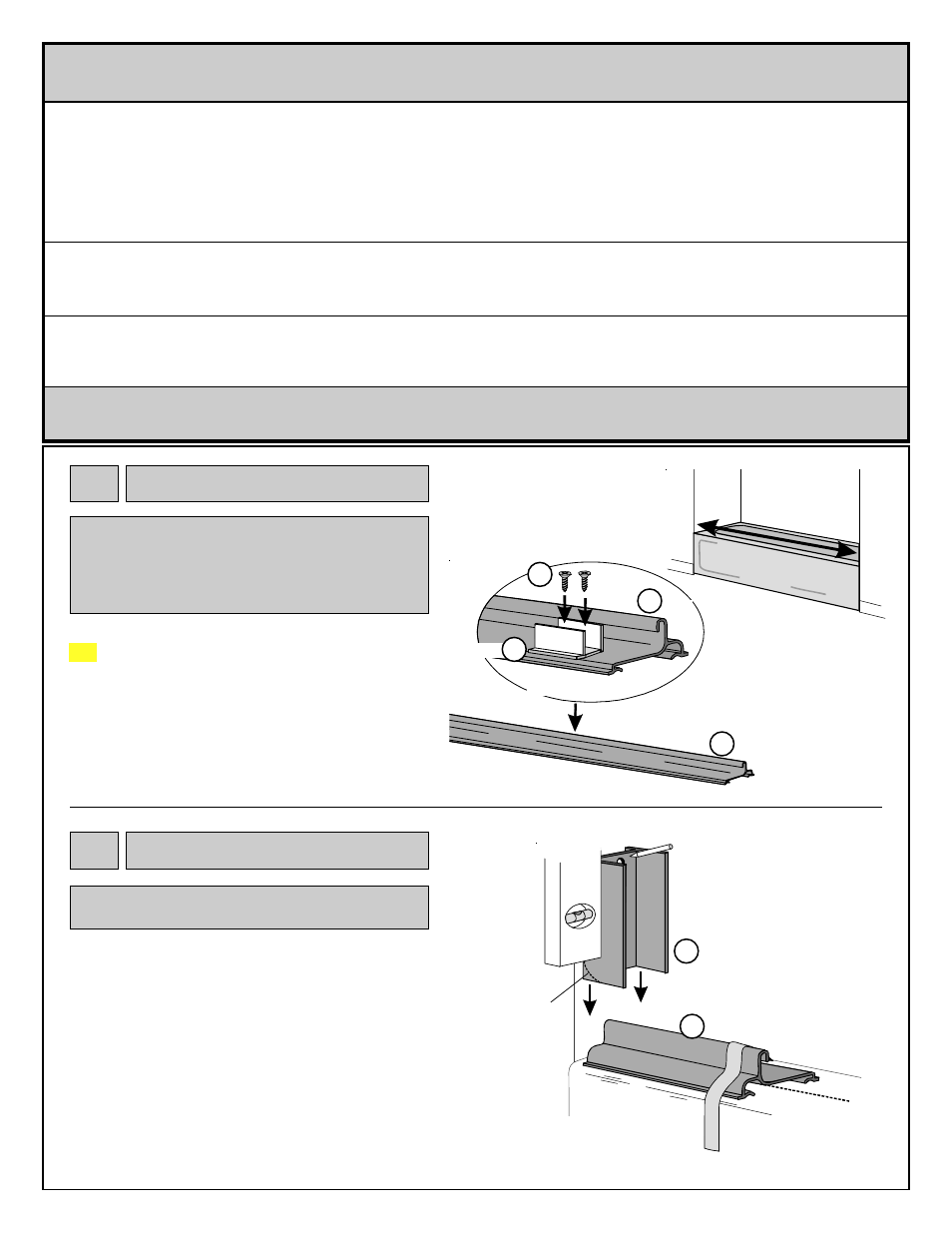

Measure wall to wall opening at tub level and cut sill (A)
3/4" less than that measurement.
Position guide (N) at center of sill with small lip of guide
to tubside edge of sill. Attach guide by peeling off
protective cover from tape and pressing onto sill.
Secure guide to sill by drilling with 1/8" drill bit through
guide into sill, and fasten using 8B x 3/8" flat head
screws (M).
Position sill on centerline of tub with tall edge of sill
toward outside of tub. Tape sill to tub with masking
tape. This will help hold sill in place while positioning
jambs.
Place one jamb (B) against wall with short legs toward
wall and bottom resting firmly on sill. If necessary for a
smooth fit, file back of jamb (short legs) to fit contour of
your unit. Align jamb vertically using a level and mark
wall through prepunched holes. Repeat with remaining
jamb.
Remove jambs and drill where marked using 1/8" drill
bit.
Jamb
Level
Sill
B
Centerline
Masking
Tape
Mark wall
through
prepunched
holes.
A
When anchors (F) are used holes should be drilled
using 3/16" drill bit. (Use masonry bit for tile.)
Sill A
8B x 3/8 Flat
Head Screw
Guide
Sill
A
N
Measure
File to fit
contour
of unit if
needed.
Place guide at
center of sill.
OUTSIDE OF
BATH
INSIDE OF BATH
M
1 Sill
(A)
2 Jamb
(B)
Due to the manufacturing process, there may be
rack marks present at one end of your sill and
header. Sill and header must be trimmed to fit your
individual opening. When cutting sill and header,
make certain to trim off end with rack marks.
