Bc b b, Jamb, Bumper – Coral Industries Provincial Classic Bypass with SSL Sill - 2CC6 User Manual
Page 3: Header, Towel bar
2CC6 4/05

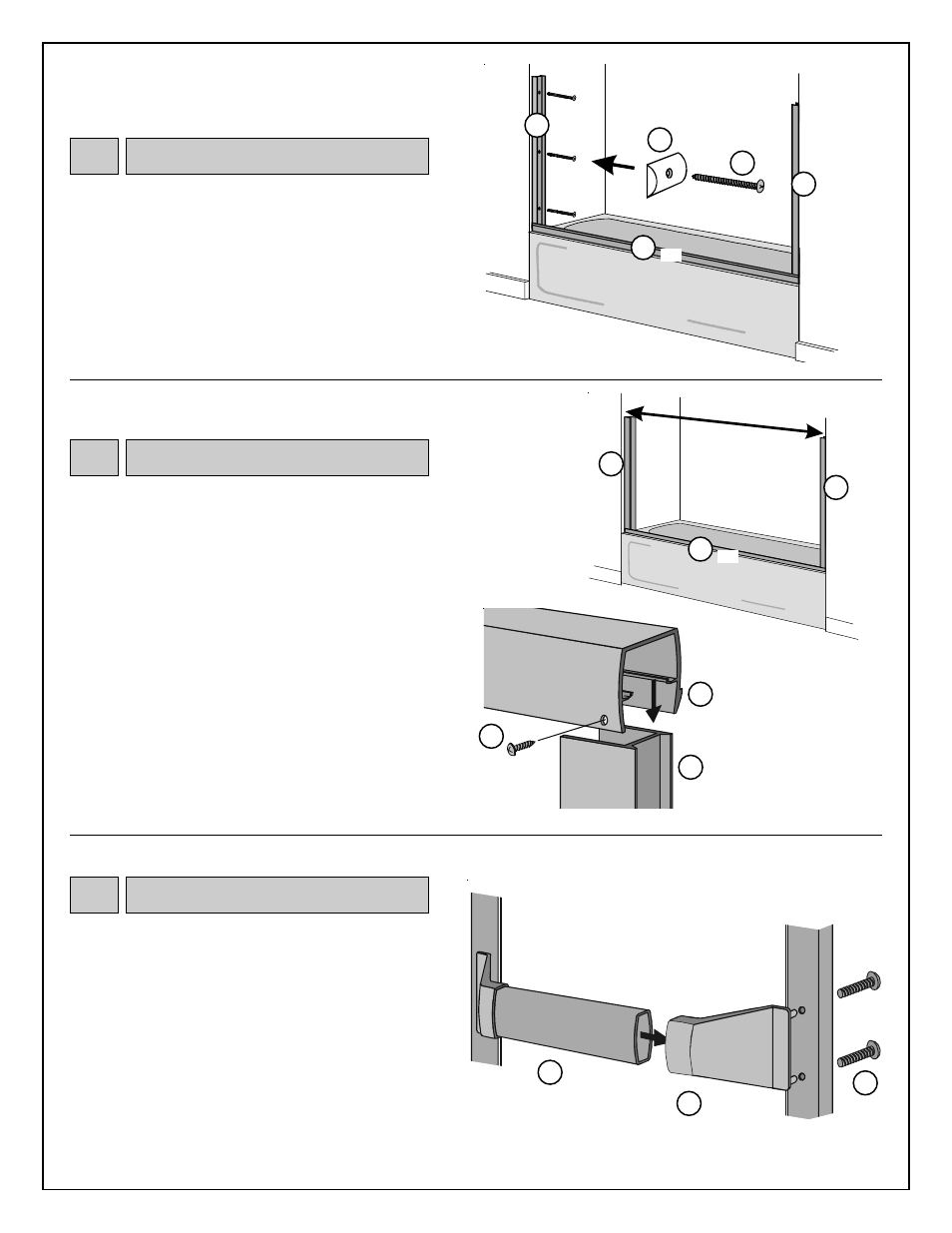

Measure from wall to wall (over the top of both jambs)
and cut header (C) to that measurement.
Lower header over jambs until seated squarely on legs
of both jambs.
Secure header to jambs by drilling a 1/8" hole through
header into jambs on inside of tub near walls. Use
8A x 3/8" truss head screws (J) to secure header in
place.
Reposition jambs on tub and mount to wall using
8A x 1 1/4" pan head screws (K). Mount bumpers (G)
in middle holes.
Towel bar for outside panel faces outside of bath while
towel bar for inside panel faces inside of bath.
Mount one towel bar bracket from towel bar kit (P) onto
door channel using 8-32 x 3/8" truss head screws.
Insert towel bar (D) into mounted bracket. Slide second
towel bar bracket onto opposite end of towel bar and
secure to door.
Repeat for remaining door panel.
Jamb
B
Jamb
B
8A x 1 1/4"
Pan Head
Screw
G
Bumper
B
C
B
B
Jamb
8A x 3/8"
Truss Head
Screw
Jamb
Header
Jamb
K
Sill
A
Sill
A
J
INSIDE OF BATH
OUTSIDE OF BATH
3
Jamb
(B)
/ Bumper
(G)
4
Header
(C)
5
Towel Bar
(D)
P
8-32 x 3/8"
Truss Head
Screw
D
Towel Bar
P
Towel Bar
Bracket
