Due to the manufacturing process, there may be rack
marks present at one end of your sill and header. Sill
and header must be trimmed to fit your individual
opening. When cutting sill and header, make certain to
trim off end with rack marks.
Measure
Jamb B
Jamb B
8A x 1 1/4"
Pan Head
Screw G
Bumper
Sill
A
OUTSIDE OF BATH

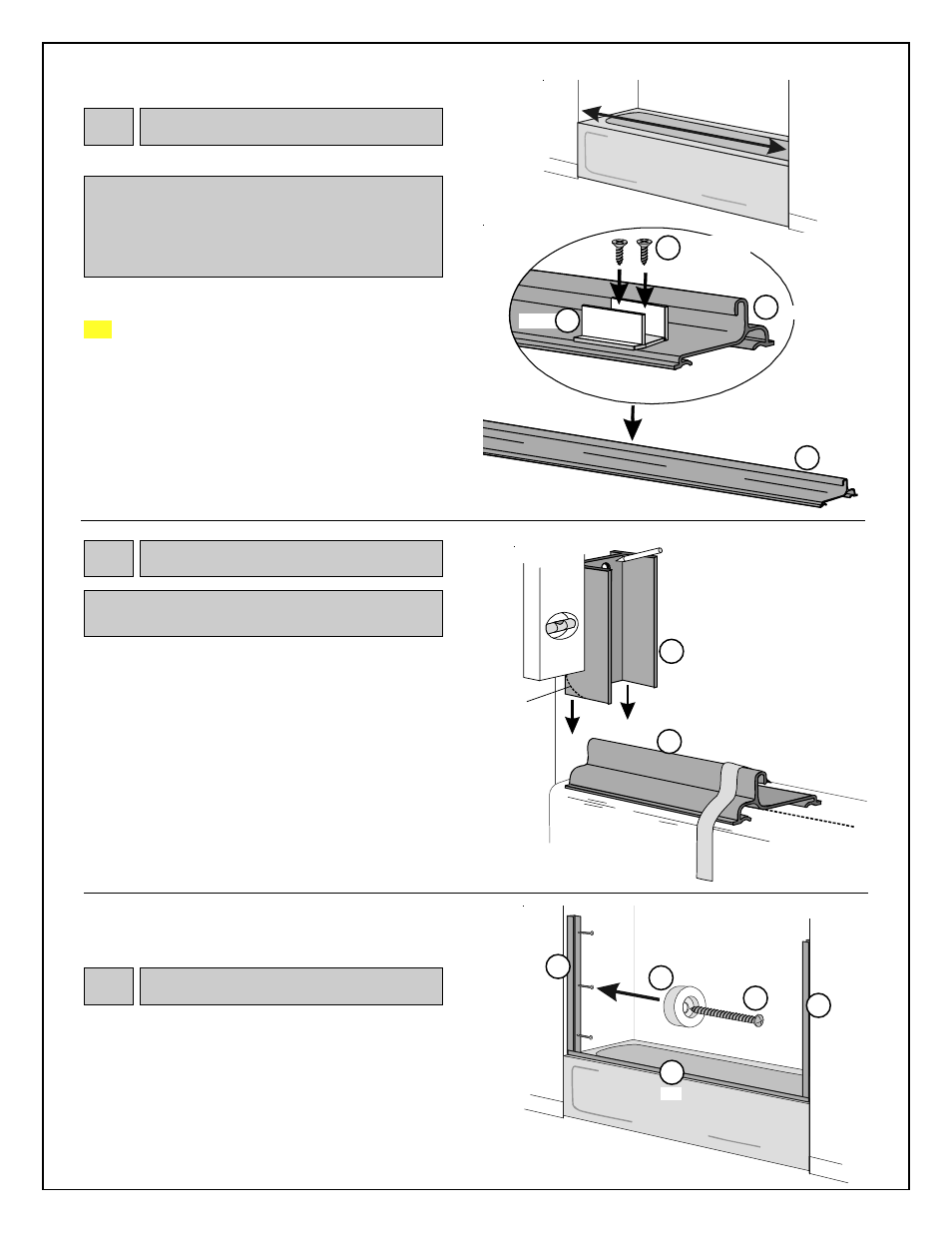

Measure wall to wall opening at tub level and cut sill (A)
3/4" less than that measurement.
Locate center of sill. Attach guide (O) to sill, at center, by
peeling protective cover from tape, and pressing guide
in place on sill.
Drill through guide into sill using 1/8" drill bit. Secure
using 8B x 3/8" flat head screws (N).
Jamb
Level
Sill
B
Centerline
Masking
Tape
Mark wall
through
prepunched
holes.
A
Sill
A
8B x 3/8 Flat
Head Screw
Guide
Sill
A
O
File to fit
contour
of unit if
needed.
Place guide
at center of sill.
OUTSIDE OF
BATH
INSIDE OF BATH
N
When anchors (F) are used holes should be drilled
using 3/16" drill bit. (Use masonry bit for tile.)
Position sill on centerline of tub with tall edge of sill
toward outside of tub. Tape sill to tub with masking
tape. This will help hold sill in place while positioning
jambs.
Place one jamb (B) against wall with short legs toward
wall and bottom of jamb on sill. If necessary for a
smooth fit, file back of jamb (short legs) to fit contour of
your unit. Align jamb vertically using a level and mark
wall through prepunched holes. Repeat with remaining
jamb.
Remove jambs from tub and drill where marked using
1/8" drill bit.
Reposition jambs on tub and mount to wall using
8A x 1 1/4 " pan head screws (J).
Middle holes are mounting positions for bumpers (G).
3 Bumpers
(G)
1 Sill
(A)
/ Guide
(O)
2 Jambs
(B)
J
