Drip Sweep
(D)

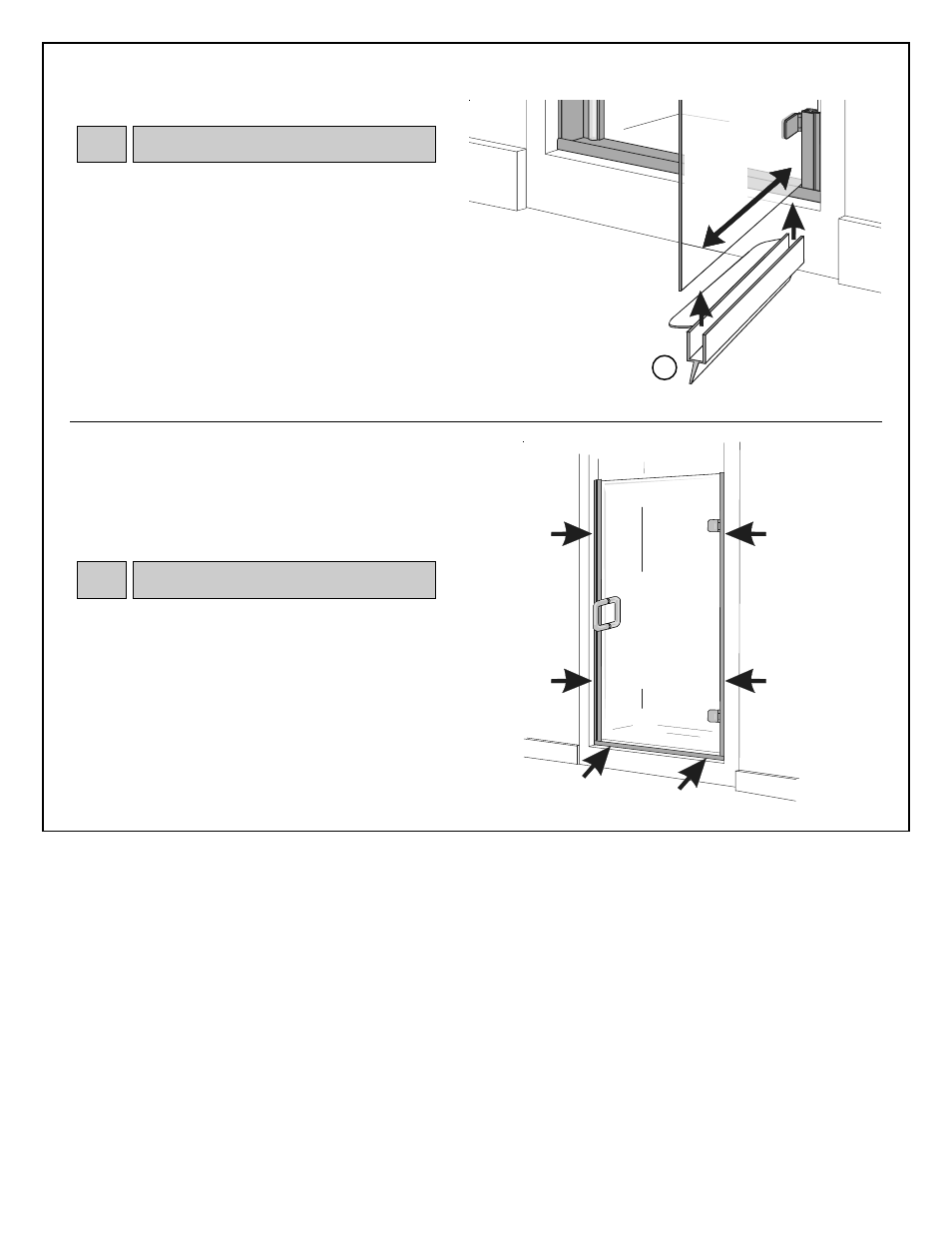

Measure width of door glass at bottom.
Trim vinyl drip sweep (D) to door glass width minus 1/8”.
Trim only from hinge end of drip sweep. Contour cut end of
drip sweep fin to remove sharp point.
Press drip sweep onto bottom edge of door glass with fin
facing inside of shower and edge of drip sweep flush with
edge of glass on hinge side of door. (Drip sweep will be 1/8”
from edge of glass on opening side of door.)
13
Caulk
Seal unit by caulking along outside of enclosure where metal
and bath meet, especially where sill meets threshold. If
desired, caulk inside of enclosure where jambs meet walls.
Vinyl Drip Sweep
D
Caulk
OUTSIDE OF
SHOWER
Fin faces
inside of
shower.
Drip Sweep
length =
Door Width
minus 1/8”
Caulk
