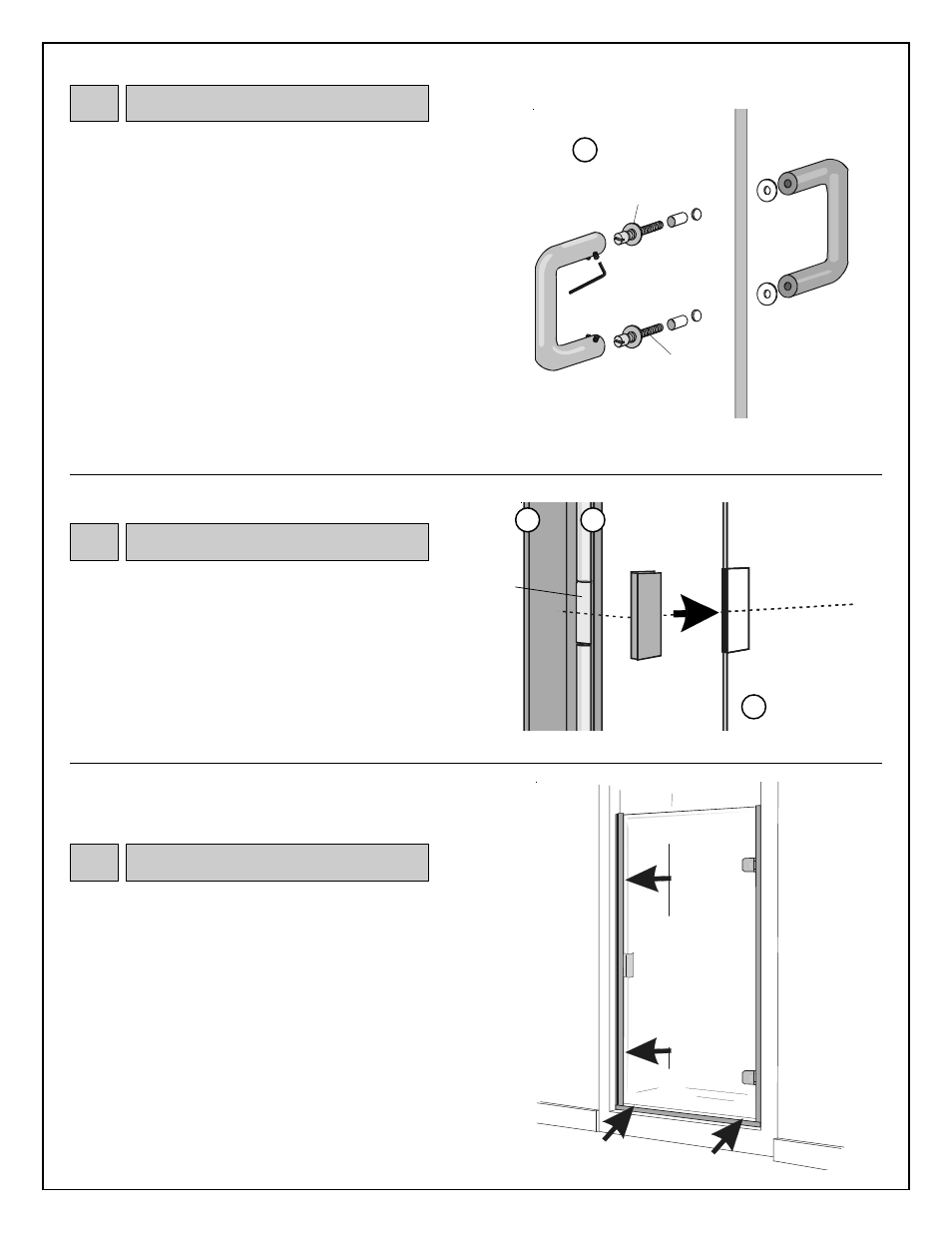

9 Push / Pull Handle Kit
(F)
Handles will be mounted on glass before hanging door
panels.
Push / Pull handle kit (F) comes with parts assembled in the
order they will be once installed on glass. Disassemble parts.
Place bushings in holes in glass. Trim as needed so that
bushings are flush with surface of glass. Place one plastic
washer on each connector screw and insert screws (from
inside surface of glass) through bushings in glass.
Place second plastic washer on exposed end of connector
screws on outside surface of glass. Holding exterior handle
in place on outside surface of glass, tighten connector screw
to secure handle.
On inside surface of glass, slip interior handle over
connector screws and tighten with 3/32" allen wrench.
Repeat for remaining handle.
Exterior
Handle
Plastic
Washer
Handle
Connector
Screw
Bushing
Plastic
Washer
INSIDE OF SHOWER
3/32 Allen
Wrench
Interior
Handle
Push/Pull Handle Kit F
10 Magnetic Catch Kit
(K)
Wrap handle vinyl, from magnetic catch kit (K), around
edge of door glass adjacent to metal slide in door stop.
Tap magnet holder, with magnet attached, over vinyl.
Magnet should face inside of shower.
Check alignment of door in opening. Check to see that
door closes evenly and there is an even reveal of space
across bottom of door glass.
Slight adjustments can be made, if necessary, by carefully
loosening allen screw on one hinge at a time and
adjusting plastic spacer within hinge until correct alignment
is achieved. Completely tighten allen screw on one hinge
before loosening remaining hinge so that door glass is
always held securely by at least one hinge.
Vinyl Door Seal C
Magnetic
Door Stop
B
Metal
Slide
Magnet Holder
with Magnet
(Magnet faces
inside of shower)
Handle Vinyl
Magnetic
Catch Kit
K
OUTSIDE OF SHOWER
Check for even
alignment of
door in opening.
Check for even reveal of
space across bottom of door glass.
11 Align Door Panel
