Coral Industries Hyaline Swing Door (Low Profile), (1/4 Frameless) - 4HJ User Manual
Page 3
4HJ-GP 10/06

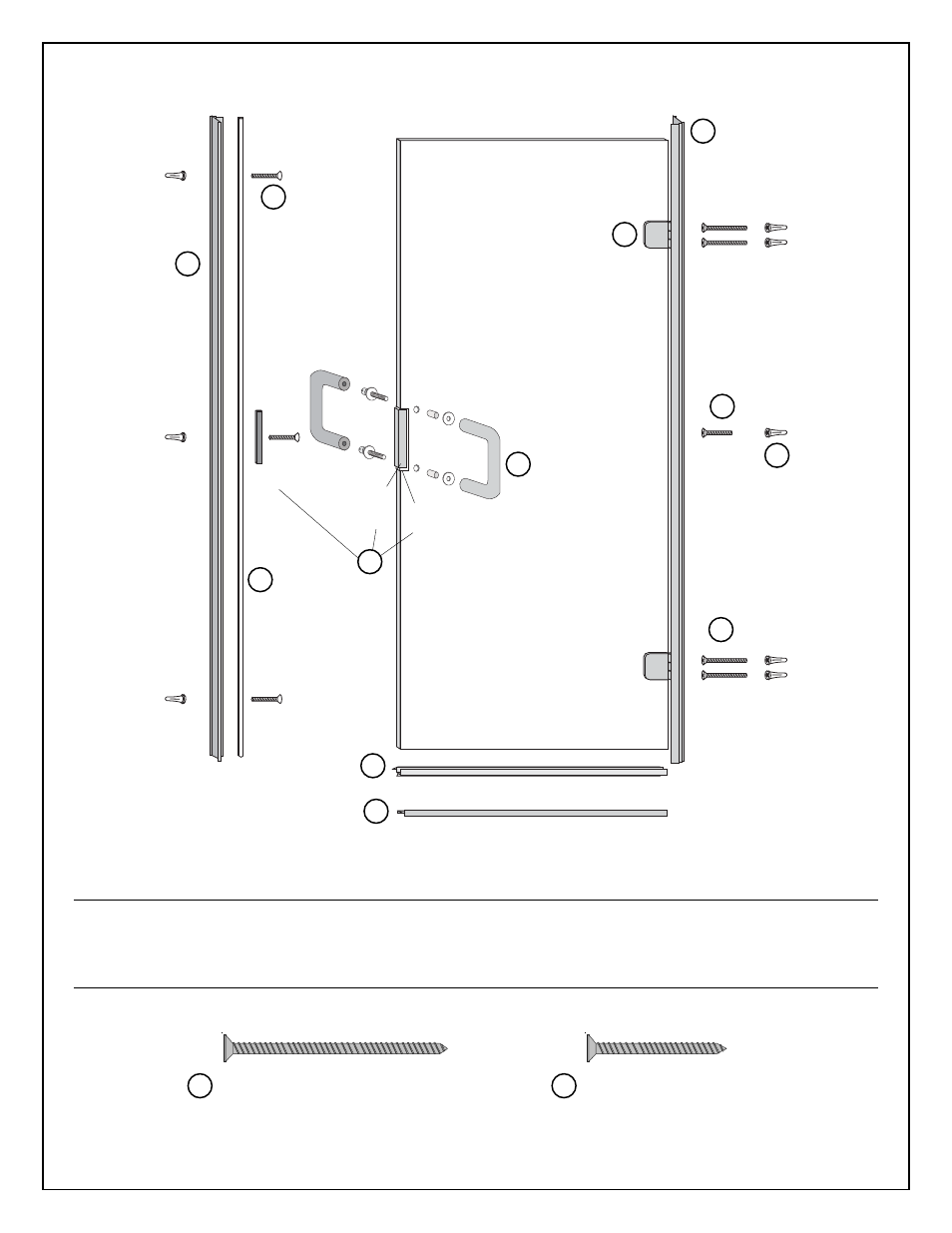

OUTSIDE OF SHOWER
H810
1 1/4" FLAT
HEAD SCREW
G
A001 SILL
A
V001 VINYL DRIP
SWEEP
D
H006
HINGE
E
F
HTG6
PUSH/PULL
HANDLE KIT
H462
2" FLAT HEAD
SCREW
H
V678
VINYL
DOOR
SEAL
B
A081
HINGE / MAGNETIC
DOOR STOP
A081
HINGE / MAGNETIC
DOOR STOP
B
H810
1 1/4" FLAT HEAD
SCREW
G
HANDLE
VINYL
MAGNET
HOLDER
WITH
MAGNET
METAL
SLIDE
MAGNETIC
CATCH
KIT
EXTERIOR
HANDLE
INTERIOR
HANDLE
C
K
H002
ANCHOR
L
Care should be taken when standing raw glass on its edge. Glass may shatter if corners are bumped or edge is rested
on a rough floor surface. Cardboard, wood blocks, or a similar surface is a safe resting surface for glass.
G
8A x 1 1/4" Flat Head Screw
(H810 - Used for securing Jambs
to walls)
H
8A x 2" Flat Head Screw
(H462 - Used for securing
Patch Hinges to walls)
