Coral Industries Steam Swing Door - 4S3 User Manual

Page 4

4S3-GP 6/02

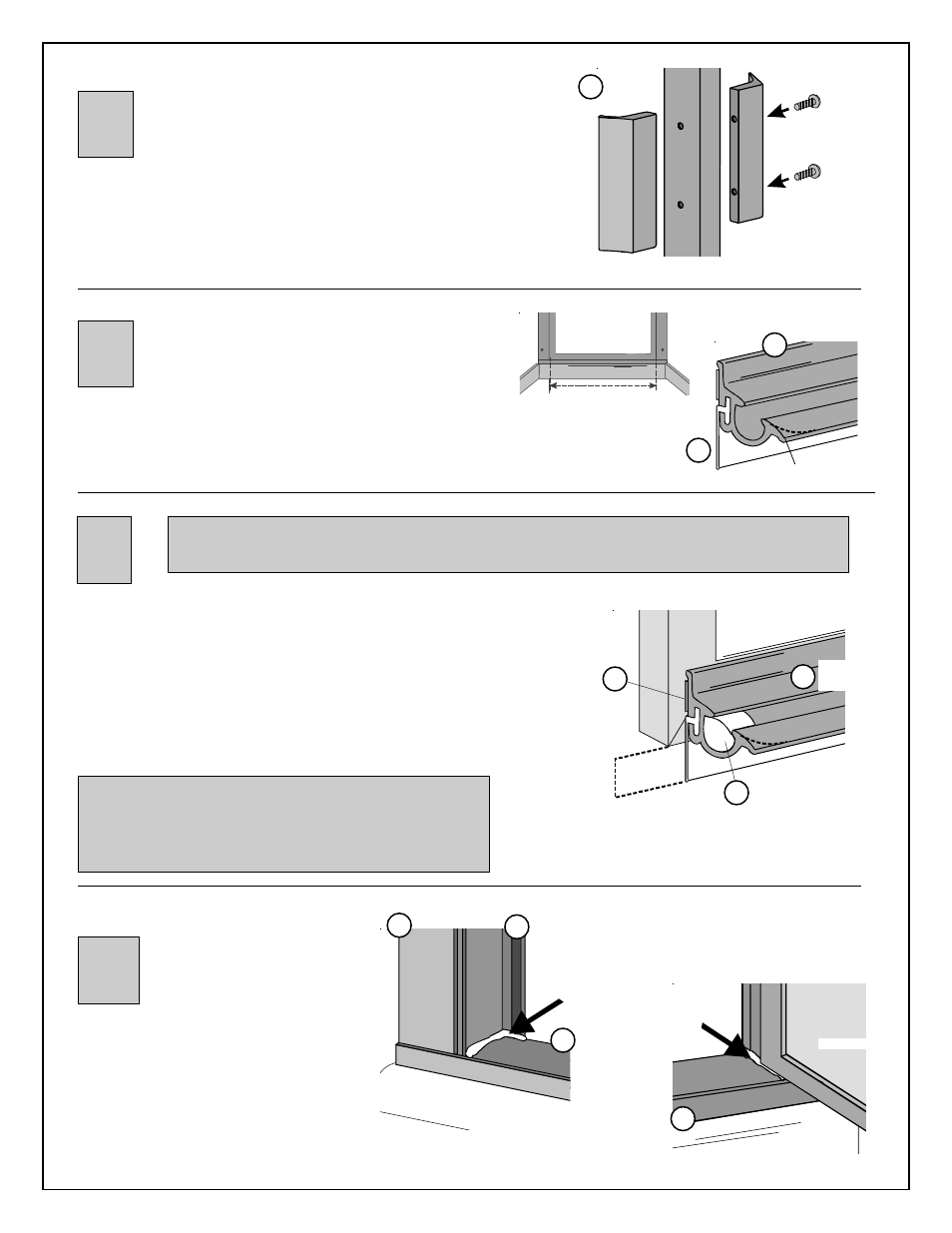

Mount interior and exterior pull handles, from pull handle kit (L),
onto door panel using 6-32 x 1 1/4" pan head screws provided.

The use of a caulking
compound will assure a
water-tight seal of your
enclosure. Apply caulk
along outside edge of

enclosure where metal and shower meet,
especially where sill meets threshold. If
desired, caulk inside of enclosure where
jambs meet walls.

On openng side of door, caulk joint on sill
where magnetic door stop and sill meet.
On opposite side, caulk where hinge
door stop and sill meet.

6-32 x 1 1/4"

Pan Head

Screw

Interior Handle

Exterior

Handle

OUTSIDE OF SHOWER

Pull

Handle

Kit

OUTSIDE OF SHOWER

Jamb

Hinge

Door

Stop

Caulk

Magnetic
Door Stop

Sill

Door Panel

Sill

Caulk

Handle for your door may be pre-installed. If so,
disregard this step and continue installation.

From inside shower, measure width of door panel
at bottom. Drip rail (E) should be 1/2" shorter than
door width. If longer, cut to proper length.

Slide vinyl sweep (F) into slot on back of drip rail. Trim ends
even with edges of drip rail.

Smooth cut end of drip rail fin with a file to remove sharp point.

Drip Rail

Sweep

INSIDE

OF SHOWER

Measure

Drip Rail

Contour

Make certain that bottom channel of door is clean and dry before mounting drip rail. After mounting,
drip rail should not be removed or repositioned. Adhesive on tape needs 72 hours curing time for
maximum bond.

Aluminum drip rail may be additionally secured by drilling
with 1/8" drill bit through drip rail into bottom channel.
Attach using 8A x 3/8" truss head screws. When drilling in
door panel, make sure drill does not hit glass. Glass is
seated approximately 1/2" into channel.

With door in closed position, place drip rail on bottom channel of
door on inside of shower. Position so that bottom edge of sweep
extends approximately 1/2" below bottom of door.

Mark location for drip rail, peel protective cover from tape (H) and
press into place.

Insert drip rail plug (P) into groove of drip cap on opening side of
door.

Drip Rail

Tape

INSIDE OF SHOWER

Drip Rail Plug

1/2"

Sweep

extends 1/2"

below bottom

channel.

Door

Panel

Drip

Rail
