Coral Industries Steam Swing Door - 4S3 - Manual (Page 3)

4S3-GP 6/02
Position hinge door stop, which is attached to door panel, into jamb on
opposite side from magnetic door stop. For safety purposes, door should
be installed to open out from shower.
If magnetic strips do not seal tightly, reverse polarity by
removing strip from door stop and replacing it with the previous
top end as the bottom end.
Slide magnetic strip (K) into slot on magnetic door stop (D). Trim ends
even with door stop using scissors.
Choose which will be the opening side of your door. Door is normally
installed to open on the side of unit nearest to showerhead. On opening
side of unit, slide magnetic door stop into jamb with magnetic strip facing
outside of shower. Slide vinyl steam seal (in slot of header) to rest flush
against magnetic door stop.
4
5
Magnetic Strip
(facing outside of shower)
Magnetic
Door Stop
Jamb
OUTSIDE OF SHOWER
Hinge Door Stop
(attached to door)
Jamb
Door
Panel
On units with clear, painted glass, the painted
surface of glass faces outside of shower.
On units with tinted, painted glass, the painted
surface of glass faces inside of shower.
K
D B
OUTSIDE OF SHOWER
Header C
B
Header C
INSIDE
OF
SHOWER
INSIDE
OF
SHOWER
Door Door
Door may be installed
to hinge from either
wall jamb.
Adjust magnetic and hinge door stops until magnetic strip
aligns properly on door panel and door closes evenly at top
and bottom. Once desired alignment of parts has been
achieved, from inside of shower, drill four evenly spaced
holes through leg of jambs (1/4" from edge) into hinge and
magnetic door stops. Secure using 8A x 3/8" truss head
screws (J).
Secure header by drilling, from inside of shower, through
header into jambs. Secure using 8A x 3/8" truss head
screws.
When securing door stops to jambs,
do not drill through front side of jamb.
Jamb
Jamb
INSIDE OF SHOWER
8A x 3/8 "
Truss Head
Screws
Header C
1/4"
J
B
6
3
Header
Steam
Seal
Jamb
OUTSIDE
OF
SHOWER
B
C
G
Measure
Long leg of
header is
toward inside of
shower with
vinyl steam
seal facing
outside of
shower.

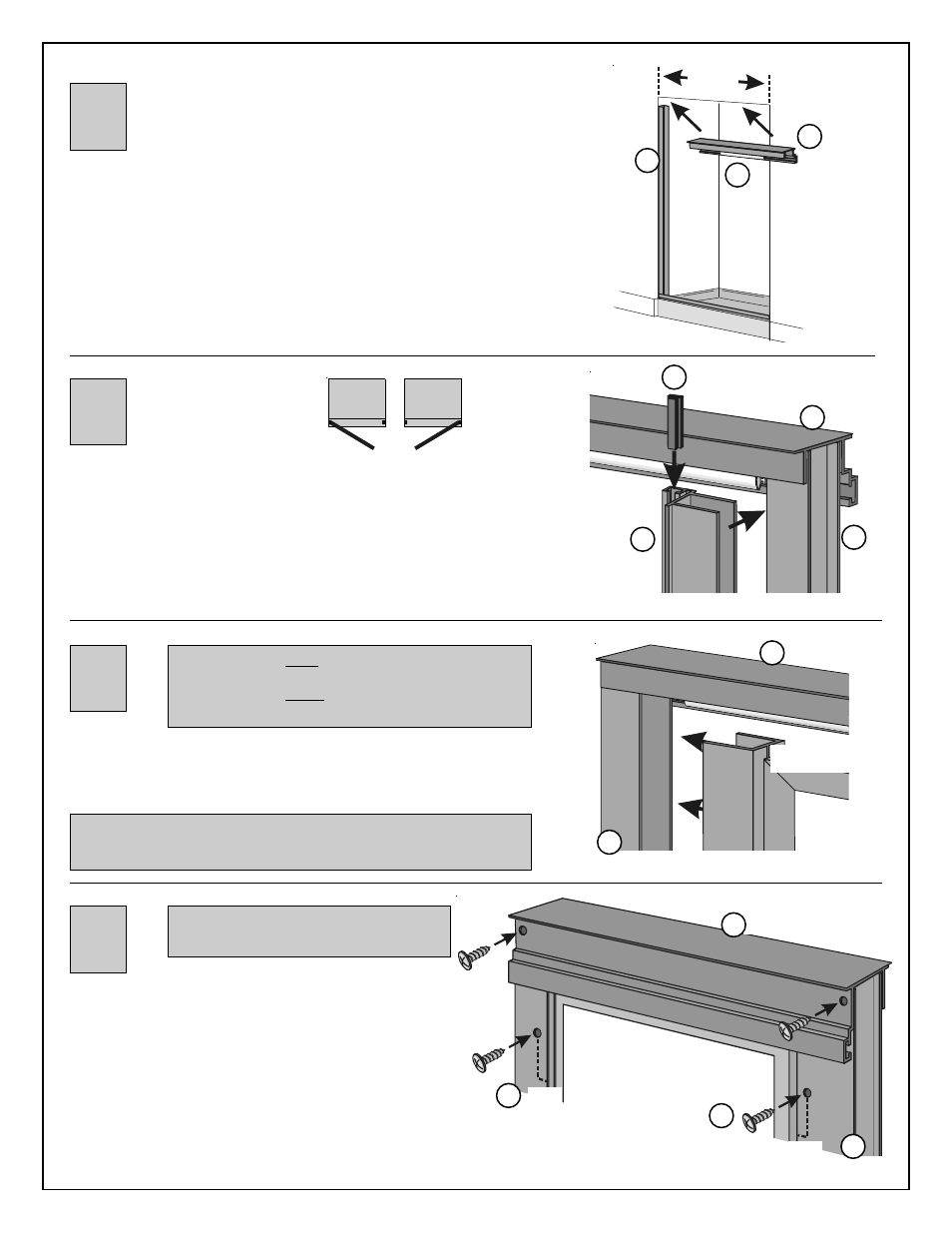

Make certain that steam seal (G) is inserted in slot of header (C). Slide
steam seal towards center of header.
Measure wall to wall opening at top of jamb and cut header to that
measurement. Place header in position over jamb with long leg of header
toward inside of shower and vinyl steam seal facing outside of shower.
Hold header in place while positioning remaining jamb on wall. Secure
jamb to wall using 8A x 1" pan head screws. Header should rest on top of
jambs.
1/4" B
