4S3-GP 6/02

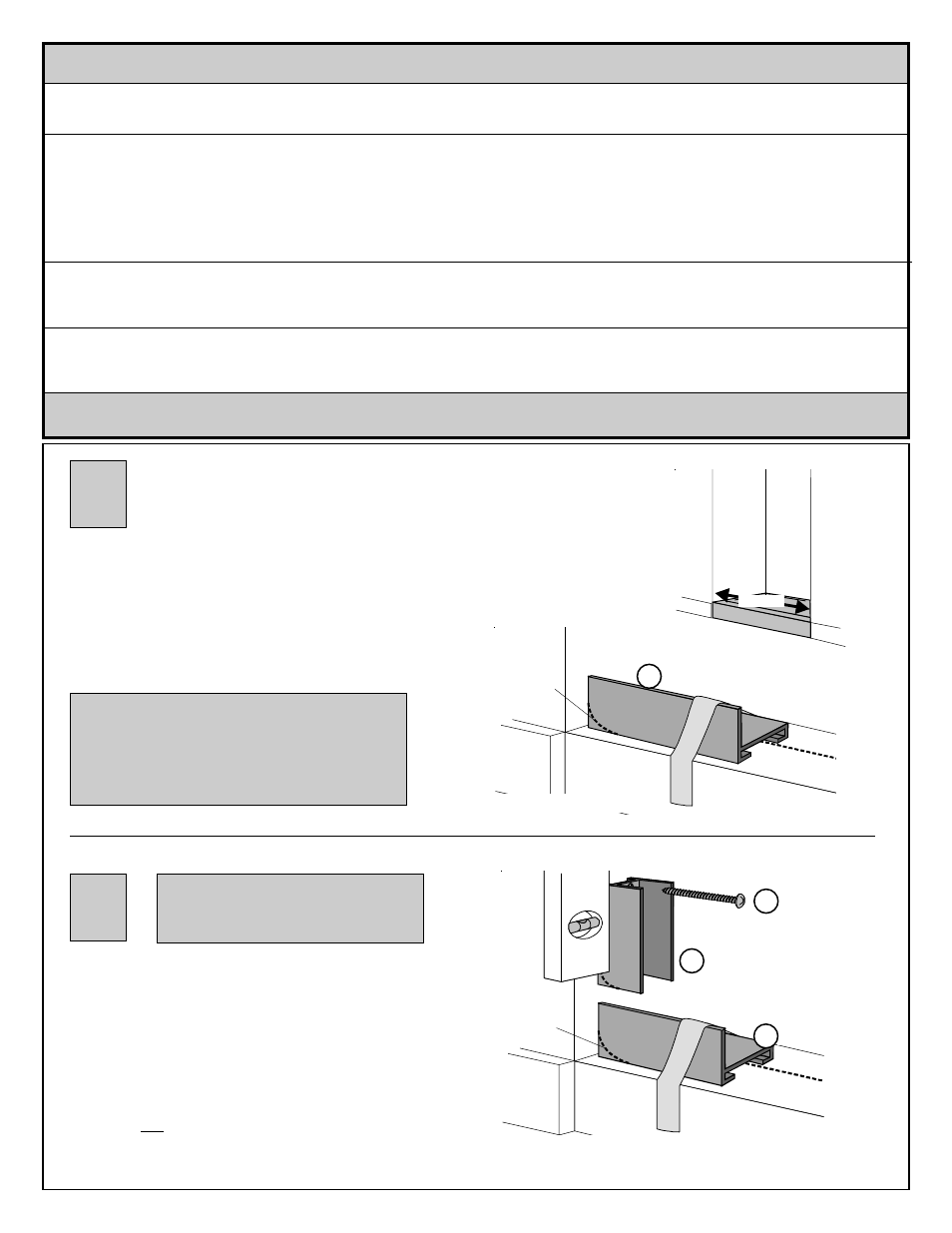

Place jambs (B) on sill with short legs against wall. Align
vertically using a level and mark wall through prepunched
holes. Remove jambs and drill where marked using 1/8"
drill bit.
If necessary, file back edge (short legs) of jambs to fit
contour of your unit.
Reposition one jamb on wall and secure using 8A x 1" pan
head screws (I).
Contour
as
needed
Jamb
B
Level
Before starting installation of your new enclosure, carefully read all
instructions and lay out parts to become familiar with their identity.
Do not try to cut the mirrors or glass used in this enclosure.
Tempered glass and mirrors will disintegrate if cut.
CLEANING
Cleaning and care of your enclosure is important to its lasting beauty. We suggest using a nonabrasive liquid cleaner. Never use
scouring powder or pads.
SEALING
The use of a caulking compound can assure a water-tight seal when applied along outside edge of the enclosure where metal and bath meet.
If desired, caulk inside of enclosure where jambs meet walls.
Anchors are furnished with every enclosure. However, the use of anchors is not recommended when attaching your enclosure to a fiberglass
unit or wall surrounds with board reinforced mounting areas. Mounting holes in this case should be drilled with a 1/8" drill bit.
Mounting of this unit on tile requires the use of anchors. Special care must be taken not to crack the tile. Before drilling holes in the tile, lightly
chip glazed surface of tile at the desired locations. Drill holes using a 3/16" masonry drill bit. Insert anchors into the holes making certain that
ring on large end of anchor meets the surface of the tile.
USE OF ANCHORS
INSTALLATION INSTRUCTIONS
Threshold
Centerline
Masking
Tape
Sill
File sharp
corners of sill as
necessary to fit
contour of your
unit
Sill
A
Centerline
Measure
When anchors (M) are used, holes
should be drilled using 3/16" drill bit.
(Use masonry bit for tile.)
8A x 1" Pan
Head Screw
I
1
2
OUTSIDE OF SHOWER
Measure width of shower opening at threshold and
cut sill (A) to that measurement. If necessary, file
sharp corners of sill to fit contour of your unit.
Position sill on center of threshold with tall edge of sill
toward outside of shower. Tape sill to threshold with
masking tape to hold in place while positioning jambs.
OUTSIDE OF SHOWER
Due to the manufacturing process, there may
be rack marks present at one end of your sill
and header. All sills and headers must be
trimmed to fit individual openings. When
cutting sill and header, make certain to trim off
end with rack marks.
A
