OUTSIDE
OF
SHOWER

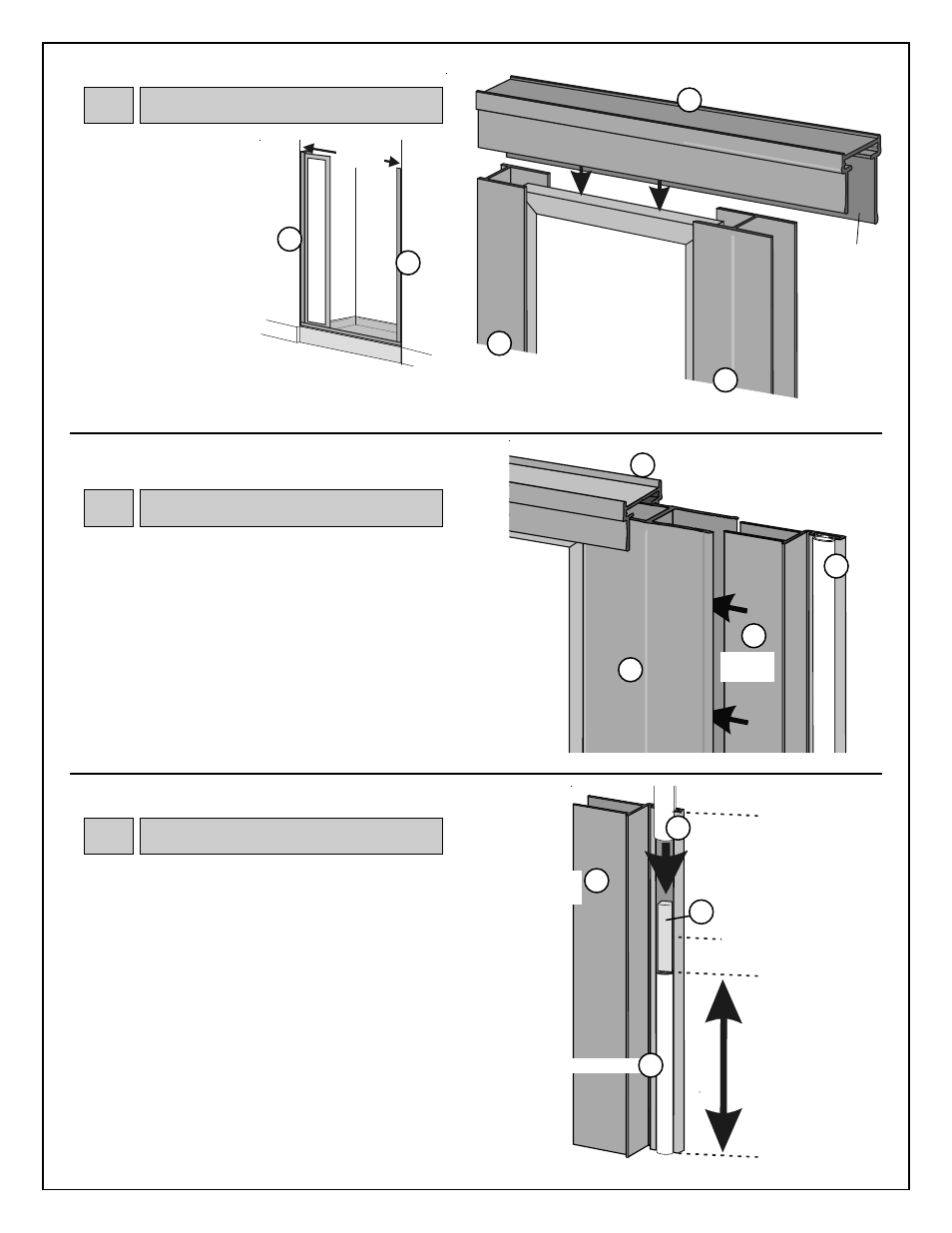

Measure from wall to wall
over top of both jambs
and cut header (C) to
that measurement.
Position header so that
long leg is toward inside
of shower. Lower into
place over jambs and
panel.
OUTSIDE OF SHOWER
Header
In-Line Panel
Long Leg of
Header
faces inside
of shower
B
Jamb
4 Header
(C)
C
D
Double Channel
Wall Measure
B
Jamb
Jamb
B
Wall
Vinyl door seal must be removed, trimmed into two pieces,
and replaced in open channel of magnetic door stop with
metal slide (attached to magnet in magnetic catch kit (M))
in between vinyl pieces.
Remove vinyl door seal from channel. Mark center of
magnetic door stop. Trim vinyl door seal to fill open channel
of door stop from sill to 2” below center mark.
Insert metal slide (attached to magnet in magnetic catch kit)
in channel on top of vinyl. Insert remaining piece of vinyl in
channel on top of metal slide. Trim vinyl flush with door stop
at top of unit.
Choose which will be the opening side of your door.
Door is normally installed to open on side nearest to
showerhead.
Slide magnetic door stop (E) into jamb or double
channel on opening side of door, making certain that
vinyl door seal (V) faces outside of shower.
Vinyl
Door
Seal V
2” Below Center
Center
Magnetic
Door Stop
Metal Slide
V Vinyl Door Seal
Cut vinyl door seal to fill
area between sill and 2”
below center mark.
E
M
Trim Vinyl Door Seal
flush with top of
Magnetic Door Stop
6 Magnetic Catch Kit
(M)
Vinyl
Door
Seal V
Magnetic
Door Stop
E
D
Double Channel
In-Line
Panel
Header C
5 Magnetic Door Stop
(E)
