0FJ-P 8/08
Due to the manufacturing process, there may be rack
marks present at one end of your sill and header. Sill
and header must be trimmed to fit your individual
opening. When cutting sill and header, make certain
to trim off end with rack marks.
Place jamb (B) on sill with short legs against wall. If
necessary for a smooth fit, file back edge (short legs) of
jamb to fit contour of your unit.
Align jamb vertically on wall using a level. Mark wall through
prepunched holes and remove jamb. Drill where marked
using 1/8" drill bit. Repeat for remaining jamb on opposite
wall.
Reposition jambs and mount to wall using 8A x 1" pan
head screws (J).
Contour
as
needed
Jamb
B
Level

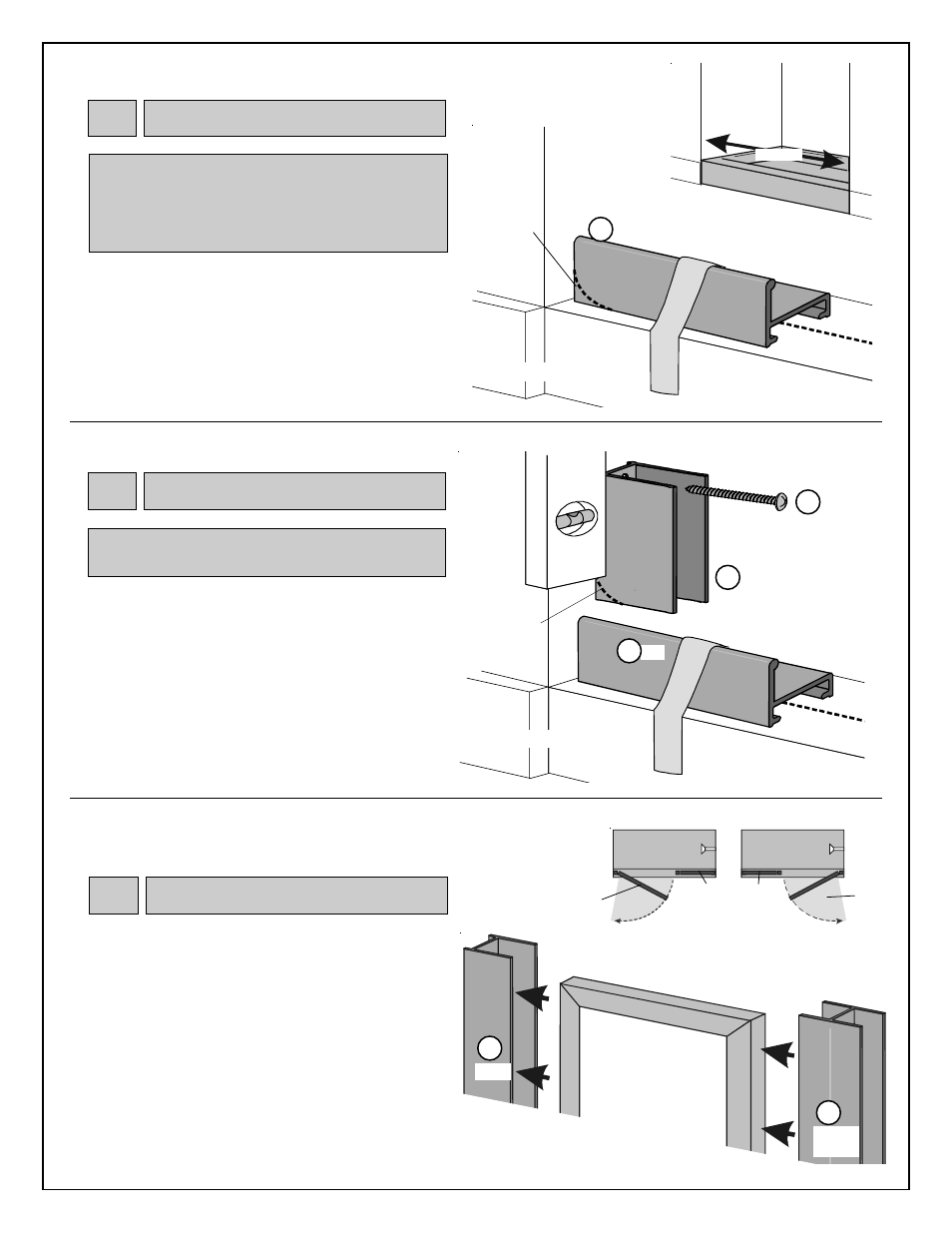

Measure opening at threshold of shower and cut sill (A) to
that measurement. If necessary, file sharp corners to fit
contour of your unit.
Mark centerline on threshold. Position sill on centerline
with tall edge of sill toward outside of shower. Tape sill to
threshold with masking tape to hold in place while
positioning jambs.
Threshold
Centerline
Masking
Tape
Sill A
File sharp
corners as
necessary
to fit
contour of
your unit
Sill
A
Centerline
Measure
8A x 1" Pan
Head Screw
J
OUTSIDE OF SHOWER
OUTSIDE OF SHOWER
2 Jambs
(B)
When anchors (L) are used, holes should be drilled
using 3/16" drill bit. (Use masonry bit for tile.)
1 Sill
(A)
Decide on the arrangement of your door panel and
in-line panel. Panel may be installed on right or left side
of door. Door is nomally installed to open on side
nearest to showerhead.
Insert panel into wall jamb with bottom of panel resting
on sill. Only position panel at this time. Parts will be
drilled and secured after door is in place and
adjustments have been made for proper alignment.
Slide double channel (D) over in-line panel with bottom
resting on sill.
Jamb
D
Double
Channel
B
OUTSIDE OF SHOWER
3 In-Line Panel / Double Channel
(D)
Panel may be
installed on right or
left side of door.
INSIDE OF
SHOWER
INSIDE OF
SHOWER
Door
Panel
In-Line
Panel
In-Line
Panel
Door
Panel
In-Line Panel
