Coral Industries Style Swing Door/ILP (1/4 Frameless) - 670 - Manual (Page 7)

670 7/09
The use of a caulking compound will assure a water-tight seal
of your enclosure.
Apply caulk along outside edge of enclosure where metal and
shower meet, especially where sill (bottom of enclosure)
meets base.
If desired, caulk inside of enclosure where jambs meet walls.
Z
Glazing =
Measurement + 1/4"

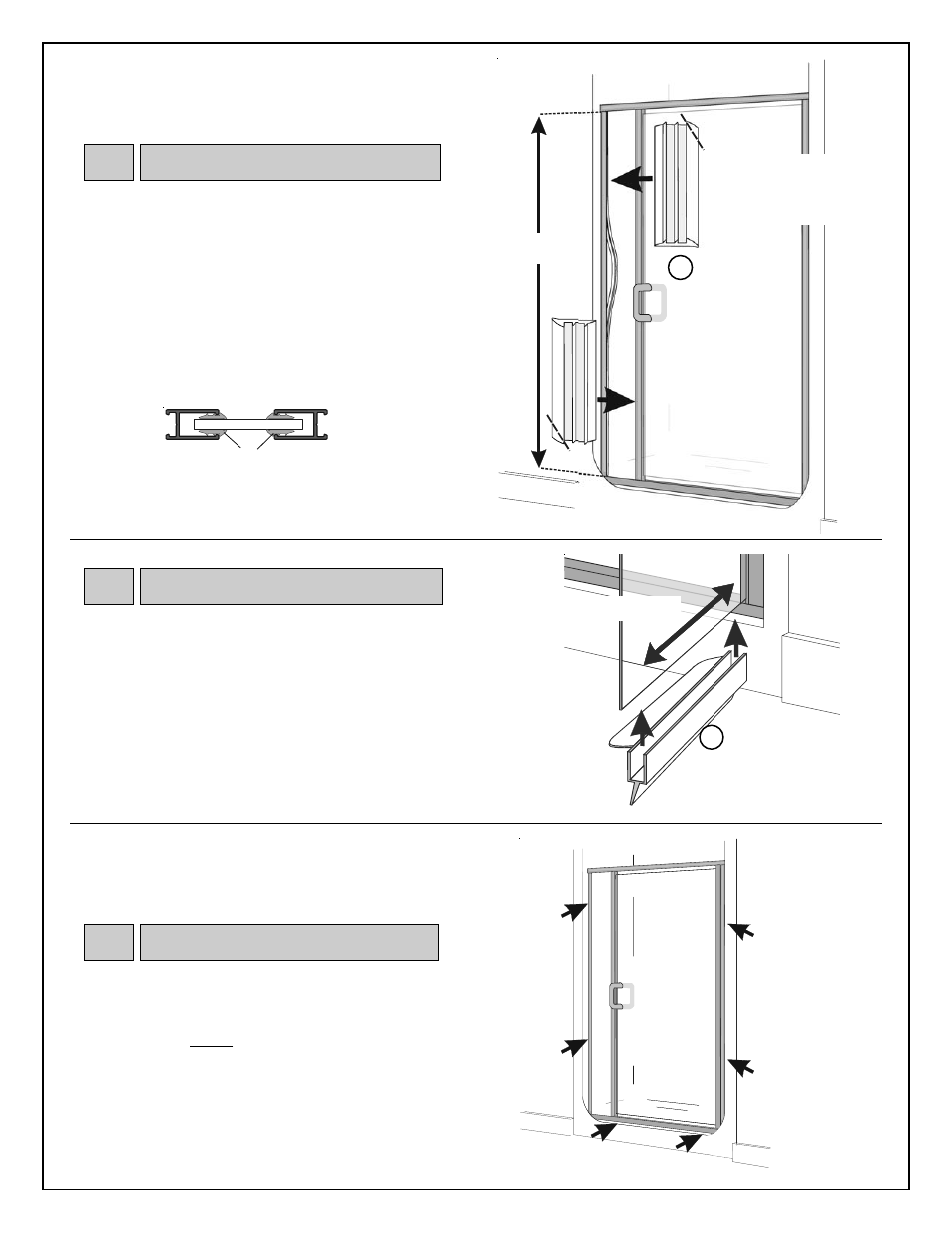

Vertical
Glazing
OUTSIDE OF SHOWER
Measure length of panel glass from header to sill and
add 1/4”. Cut two pieces of vertical glazing (Z) and apply
on inside and outside of panel between glass and jambs.
Repeat for opposite side of panel glass.
For a smoother fit in corners where horizontal and vertical
glazings meet, the ends of vertical glazing may be trimmed
at a 45
0 angle. Trim only the exterior ridge of glazing. Do
not trim glazing that fits inside metal once installed.
12 Vertical Glazing
(Z) Ends of vertical glazing may
be trimmed at a 45° (on exterior
ridge only) for a smoother fit in
corners where vertical and
horizontal glazing meet.
14 Caulking
VERTICAL CROSS SECTION
Vertical
Glazing
Jamb Jamb
Caulk
Caulk
Measure width of door glass at bottom.
Trim vinyl drip sweep (D) to door glass width minus 1/8”.
Trim only from hinge end of drip sweep. Contour cut end of
drip sweep fin to remove sharp point.
Press drip sweep onto bottom edge of door glass with fin
facing inside of shower and edge of drip sweep flush with
edge of glass on hinge side of door. (Drip sweep will be 1/8”
from edge of glass on opening side of door.) D Vinyl Drip
Sweep Fin faces inside
of shower.
OUTSIDE OF
SHOWER
13 Vinyl Drip Sweep
(D)
Drip Sweep length =
Door Width minus 1/8”
