Coral Industries Style Swing Door/ILP (1/4 Frameless) - 670 - Manual (Page 5)

670 7/09

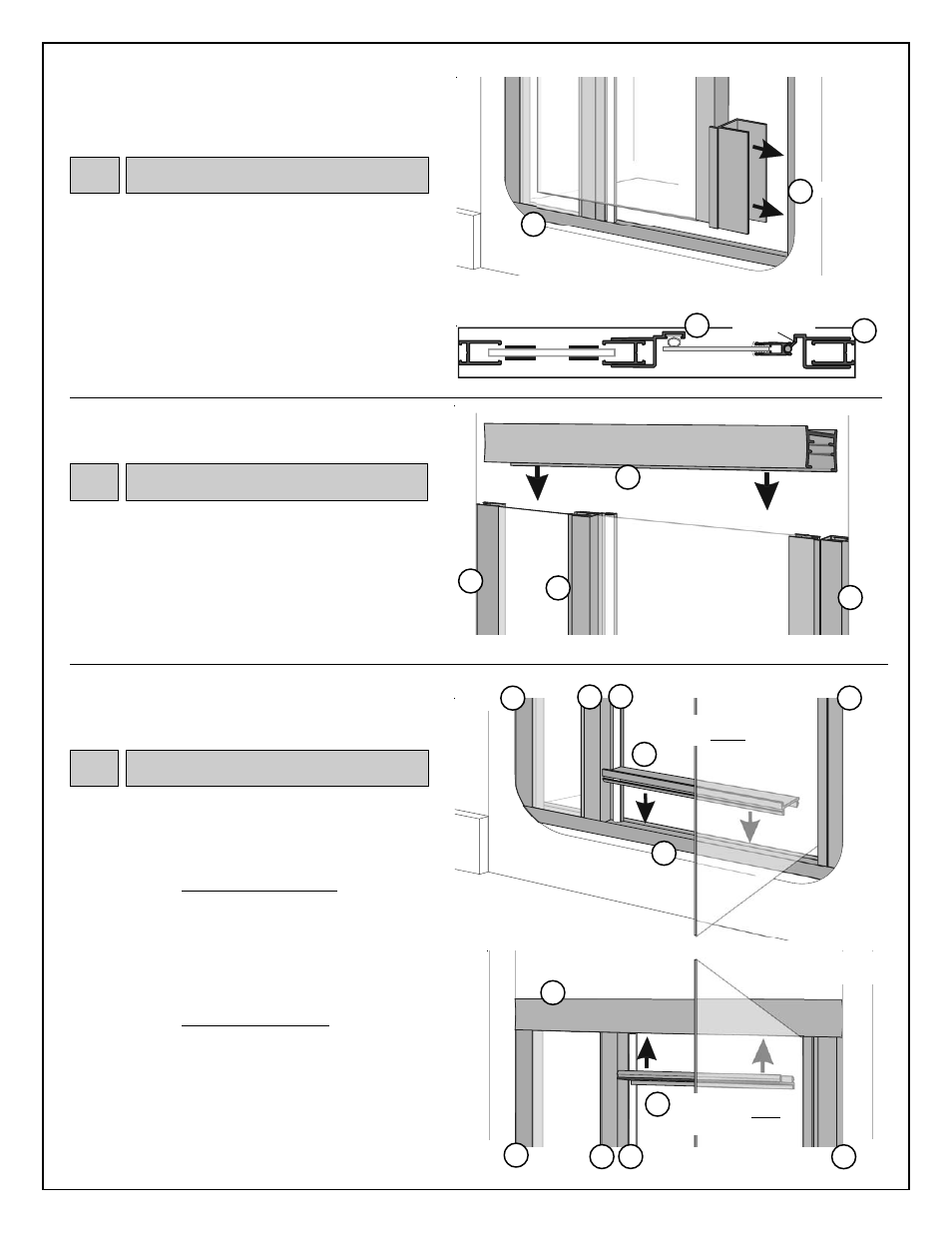

On opposite side of unit, place hinge door stop (which is
attached to door panel) over wall jamb with bottom of door
stop seated in sill. For safety purposes, door should be
installed to open out from shower.
Door Panel
A
Sill
Hinge Door
Stop
attached to
Door Panel
OUTSIDE OF SHOWER
B Jamb
7 Hinge Door Stop and Door Panel
Magnetic
Door Stop E
Jamb
B
Door Panel
Hinge Door Stop
Measure from wall to wall (over the top of both jambs) and
cut header (C) to that measurement.
Lower header into place over jambs.
B
Jamb
C
Header
B
Jamb
B
Jamb
OUTSIDE OF SHOWER
At bottom of door, snap sill / header insert (D) into sill with
tall edge of insert toward outside of shower.
At top of door, snap sill / header insert (D) into header with
tall edge of insert toward inside of shower.
B
C Header
B Jamb B
OUTSIDE OF SHOWER
Jamb Jamb
D Top Sill/Header Insert -
tall edge toward inside
of shower
B
A
Sill
B Jamb
B
Jamb
Jamb
D
Bottom Sill/Header Insert -
tall edge toward outside of shower
E
Magnetic Door Stop
E
Magnetic Door Stop
8 Header
(C)
9 Sill / Header Inserts
(D)
