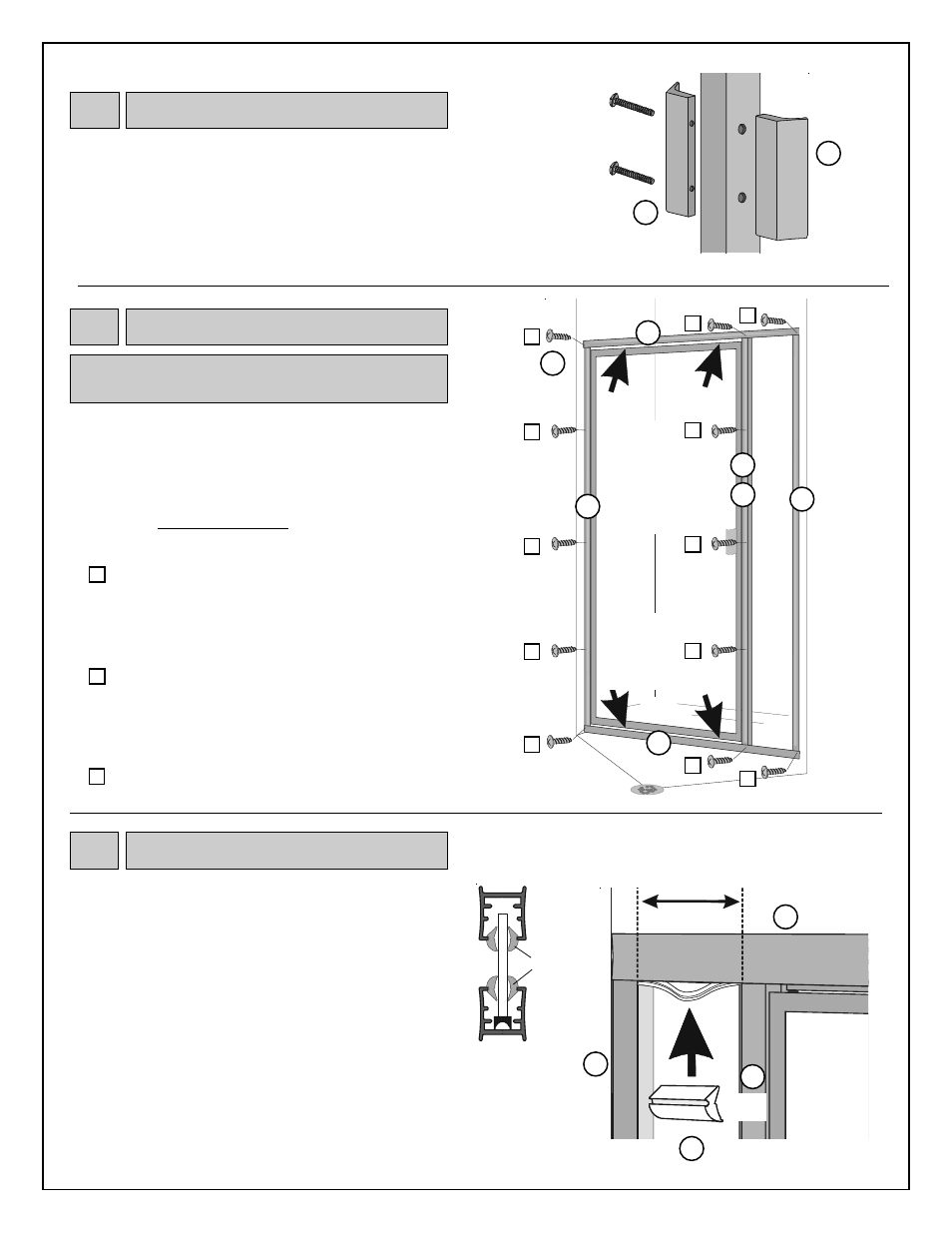

Mount pull handles, from pull handle kit (M), using
6-32 x 1 1/4" pan head screws provided. Screw heads should
be on the inside of shower.
Handle for your door may be pre-installed. If so, disregard
this step and continue installation.
9 Handle
(M)
OUTSIDE OF SHOWER
6-32 x 1 1/4"
Pan Head
Screw
Interior
Handle
Exterior
Handle
M
M
Check alignment of door, panel glass, panel jamb, and magnetic
door stop. Adjust as needed so that door closes evenly, there
is an even reveal of space at top and bottom of door, and
magnetic slide aligns with handle magnet.
Once desired alignment of parts has been achieved, secure
parts together from inside of shower using 8A x 3/8" pan head
self-drilling screws (N).
Attach hinge door stop to wall jamb in five locations - at
top of unit, securing header, jamb and door stop together;
at bottom of unit, securing sill, jamb and door stop
together; and at three points evenly spaced between top
and bottom.
Attach magnetic door stop to panel jamb in two locations
- at top, securing header, magnetic door stop and panel
jamb together; at bottom, securing sill, magnetic door
stop and panel jamb together; and at three points evenly
spaced between top and bottom.
Attach opposite wall jamb to header at top and sill at
bottom.
When drilling or screwing into metal, make certain that
glass is clear from area. Do not hit glass with drill bit.
Jamb
B
Jamb
and
Hinge Door Stop
B Jamb and
Magnetic
Door Stop E
C
Header
A
INSIDE OF
SHOWER
Sill
N
8A x 3/8" Pan
Head Self-
Drilling Screw
10 Aligning / Securing Verticals
a
b
c
a
b
c
a
b
a
c
Vinyl glazing is used to cushion and secure glass in metal.
There are two types of vinyl glazing included in your unit -
horizontal (Y) and vertical (Z). The horizontal glazing is
thicker and will be installed first. Water may be used to
lubricate glazing and make installation easier. Glazing is
designed to fit tightly. A wooden block may be used to press
vinyl into place.
Measure width of panel glass from wall jamb to panel jamb and
add 1/4". Cut 2 pieces of horizontal glazing to this
measurement, one for inside and one for outside of panel.
Press ends of glazing into place first, fitting glazing into gap
between metal and glass. Work toward center, pressing
glazing into place.
Repeat for inside of shower and for bottom of panel on inside
and outside of shower.
11 Horizontal Glazing
(Y)
C
B
Wall
Jamb
Header
OUTSIDE OF
SHOWER
Glazing =
Measurement + 1/4"
Y
Horizontal Glazing
Door Panel
B
Panel
Jamb
HORIZONTAL
CROSS SECTION
Horizontal
Glazing
Header
Sill
Check for even
reveal of space
at top and
bottom of door
glass
B
a
a
b
b
b
