Coral Industries 7000 Swing Door/ILP - 600 - Manual (Page 3)

600 7/09

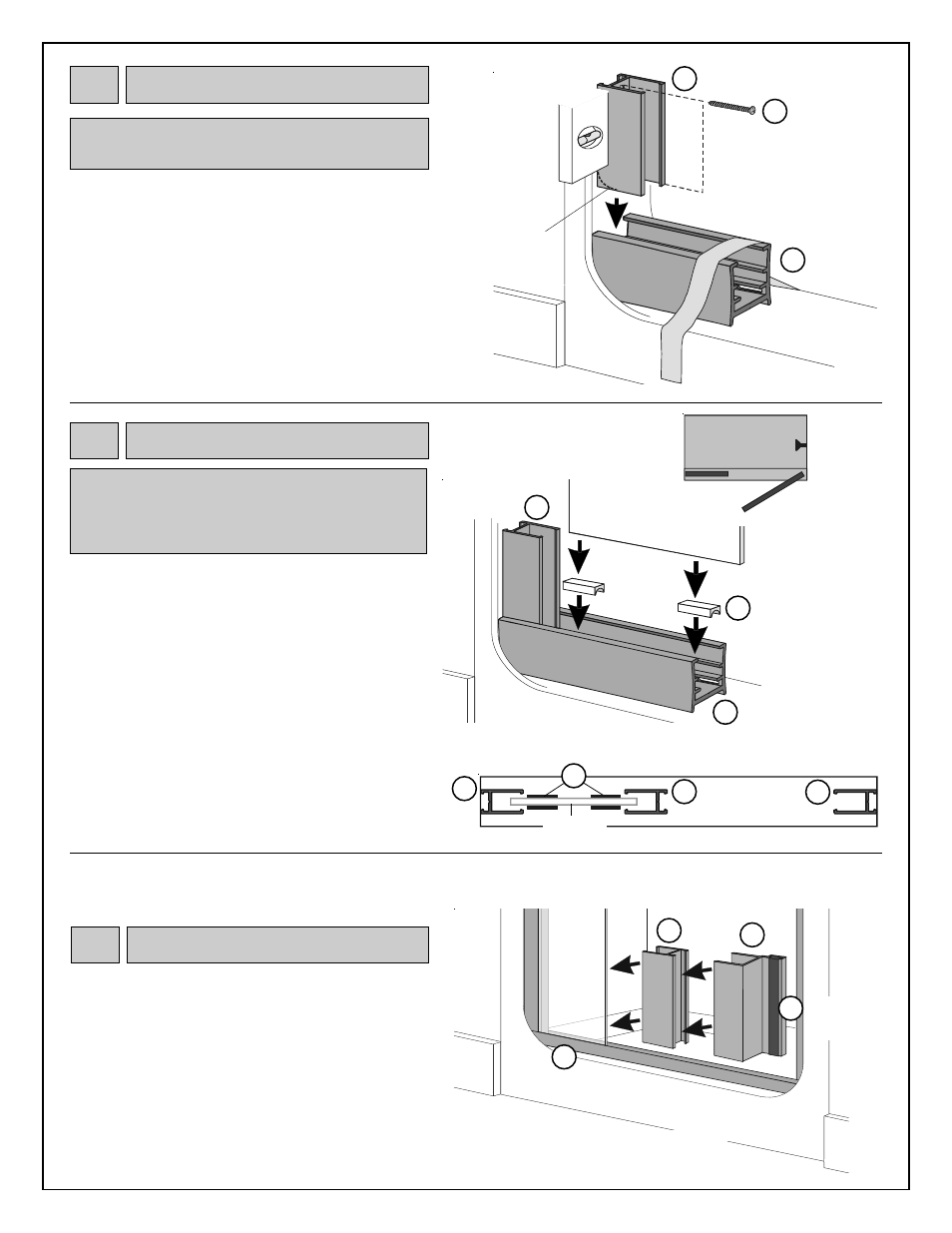

Position jamb (B) on sill with short legs against wall and
bottom of jamb inside sill. If necessary, file sharp edges on
bottom of jamb to fit rounded corners of your unit.
Align jamb vertically using a level. Drill mounting holes
through jamb into wall using 1/8" drill bit. Mounting holes are
normally located 3" from top and bottom of jamb and at
center.
Secure jamb to wall using 8A x 1 1/4" pan head screws (L).
Repeat for opposite side.
Level
Sill A
OUTSIDE OF
SHOWER
Drill 3" from top and bottom
of jamb, and at center.
Jamb B
File sharp edges
to fit rounded
corners of your unit
if needed.
When anchors (H) are used, holes should be drilled
using 3/16" drill bit. (Use masonry bit for tile.)
Decide which will be the opening side of your door. Door is
normally installed to open on the side of unit nearest to
showerhead.
Setting blocks (X) are used in sill to provide a resting
surface for panel glass. On panel side of unit, place one
setting block in sill at edge of wall jamb. A second setting
block should be placed in sill to support opposite corner of
panel glass once glass in placed in unit. Measure panel
glass and position remaining setting blocks accordingly.
Place panel glass in wall jamb with bottom of glass resting
on setting blocks in sill, and side of glass seated in wall
jamb 3/8".
X Setting
Blocks
OUTSIDE OF
SHOWER
Panel Glass
A Sill
Jamb
B
The following instructions call for glass to seat in
verticals 3/8". This distance may be adjusted
from 1/4" - 1/2" to accommodate out-of-plumb
walls and allow for a better fit of parts.
Place remaining jamb over panel glass with long legs of
jamb fitting over edge of glass 3/8", and bottom of jamb
seated in sill.
Slide magnetic door stop (E) over jamb, with bottom of
door stop seated in sill and magnetic strip (F) facing
outside of shower.
B
Jamb
A
Sill
E
Magnetic
Door Stop
OUTSIDE OF SHOWER
F Magnetic Strip
faces outside
of shower
8A x 1 1/4"
Pan Head Screw L
4 Setting Blocks
(X)
/ Side Panel
5
Jamb
(B)
/ Magnetic Door Stop
(E)
Jamb
B
Jamb
B
Jamb
B
Setting Blocks
X
Panel Glass
3 Jambs
(B)
Showerhead
Normal
opening side
OVERHEAD
VIEW
Panel
Door
