4

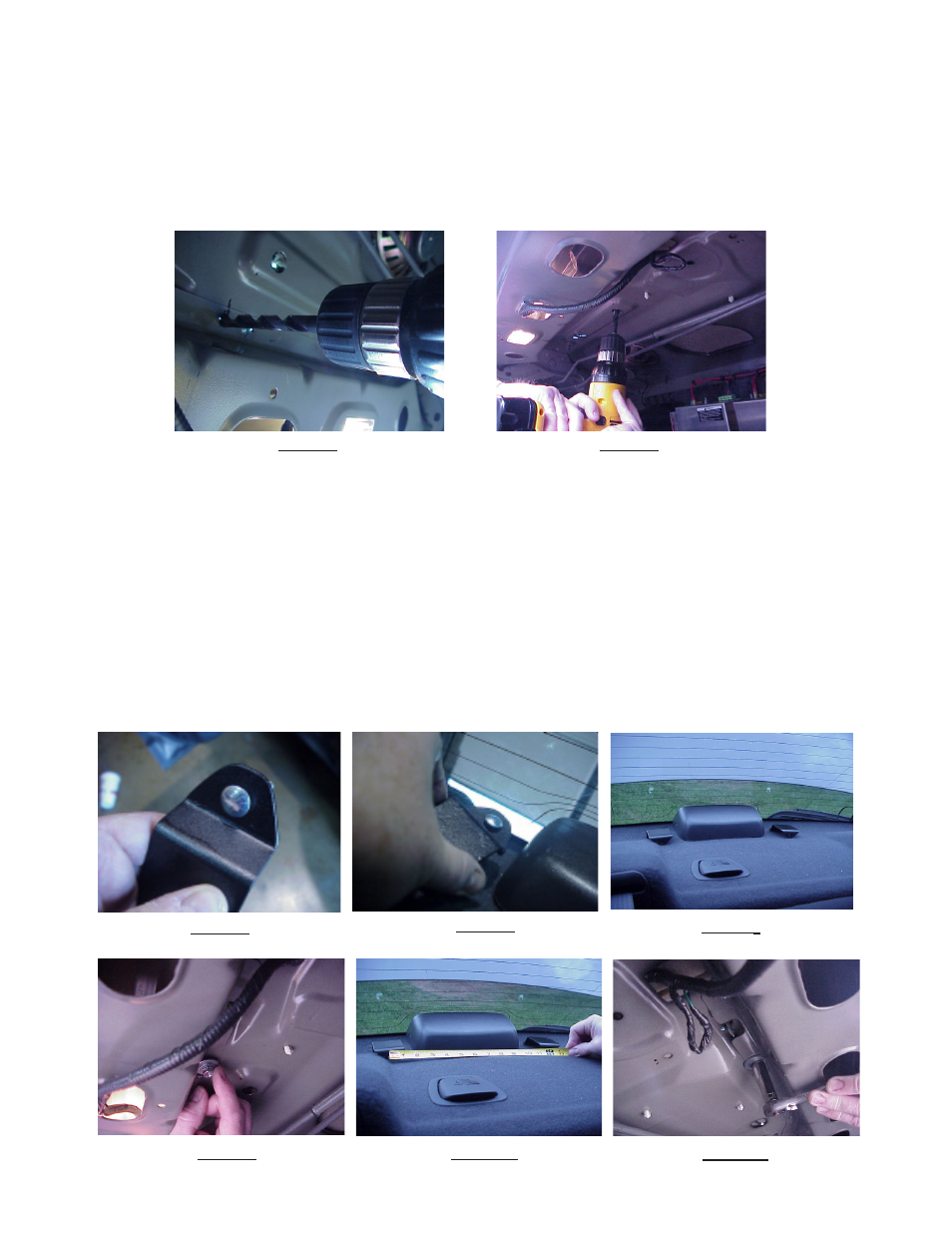

FIGURE 6 FIGURE 7
Step 6 Insert the 1/4-20 x 1.50 long carriage bolts through the square holes in the mounting brackets
(as shown in Figure 6).
Step 7 Install the mounting brackets (as shown in Figures 7 and 8) and thread two fender washers and a 1/4-20 locking
nut onto each of the carriage bolts from inside the Crown Victoria's trunk (see Figure 9). Leave the nuts loose at this time.
Step 8 Position the mounting brackets so that they are 12"across between the centers of the mounting holes and the pas-
senger side bracket is firmly against the slight hump in the rear deck's fabric (see Figure 10).
Step 9 Tighten the mounting bracket nuts from inside the trunk of the Crown Vic (as shown in Figure 11).
Note: Only tighten the brackets tight enough to draw them down into the fabric of the rear deck but not so tight
that the brackets cannot be turned slightly as needed to center the WingMan™ Bar in the rear window and align
the mounting bolts.
FIGURE 8
FIGURE 9
FIGURE 4 FIGURE 5
Step 3 With a center punch and a hammer dimple the hole locations to keep the drill from walking off location.
Step 4 Drill the two mounting holes with a 3/8" drill (see Figure 4).
Step 5 Locate the existing hole in the trunk sheet metal on the driver's side of the Crown Vic and drill a 3/8" hole through
the fiberboard for the cable (see Figure 5).
FIGURE 10 FIGURE 11
