3

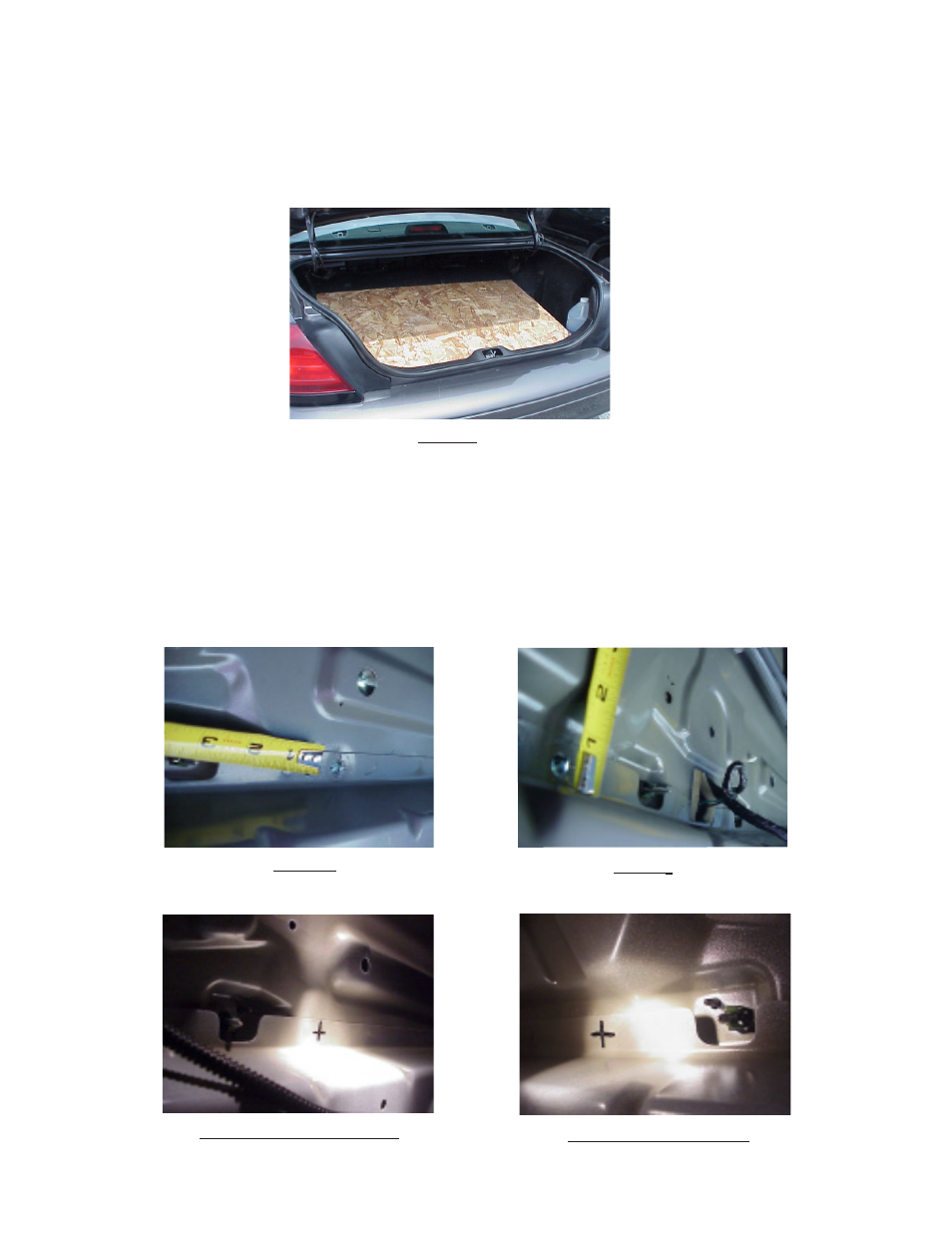

FIGURE 1
Installation Instructions
Step 1 Open the Crown Vic's trunk, move the spare tire from it's shelf to the bottom of the trunk, and place a piece of plywood or
boards over the spare tire well so that there is a flat level platform to work from (see Figure 1).This will provide a more comfortable
position for locating and drilling the mounting holes and the cable hole.
Step 2 Measure 3 inches from the center of the brake light mounting stud towards the outside of the Crown Victoria and mark the spot.
This is the side to side location of the light bar's mounting hole (shown in Figure 2). Measure 7/16" from the inner bend of the sheet
metal at the level closest to the spot welded seam in the Crown Vic's trunk and mark the spot. This is the front to rear location of the
mounting hole (shown in Figure 3). Repeat the step for the mounting hole at the opposite side of the brake light. Note: The final distance
between the two mounting holes will be approximately 12 1/8". When the marks are in the correct location they will look as shown in
Figure 2A for the Passenger side and as shown in Figure 3A for the Driver's side.
FIGURE 2 FIGURE 3
Brake Light-
Mtg Stud
.......
.......>
To Front of vehicle ---------->
<-->
---7/16" from bend
in sheet metal
<---------------
------
<------------------> <------------
-----
3" from Brake-------
Light Mtg Stud
FIGURE 2A(PASSENGER SIDE) FIGURE 3A(DRIVER'S SIDE)
