Code 3 WingMan for Crown Victoria User Manual
Page 4

4

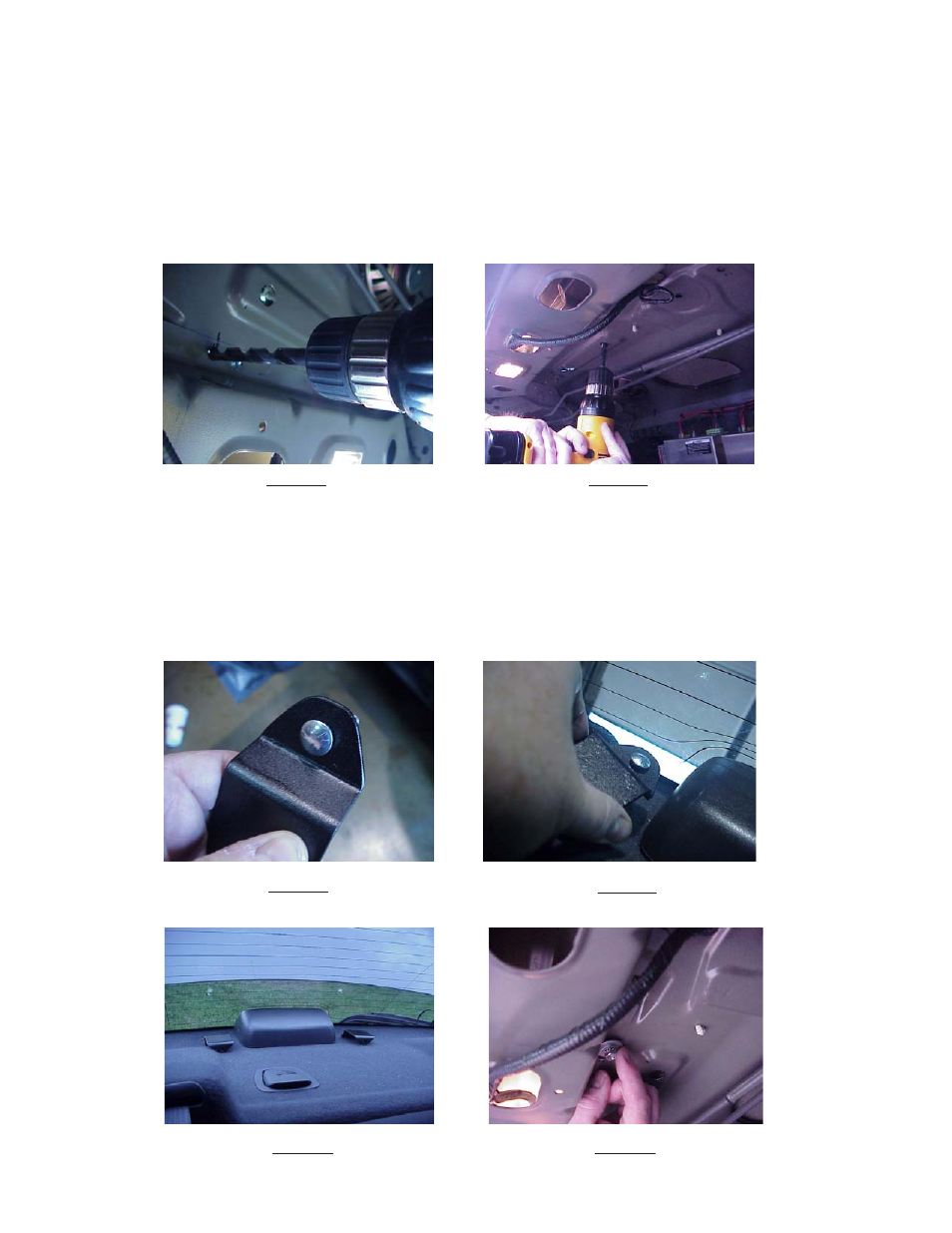

FIGURE 6
FIGURE 7
Step 6 Insert the 1/4-20 x 1.50 long carriage bolts through the square holes in the mounting brackets
(as shown in Figure 6).
Step 7 Install the mounting brackets (as shown in Figures 7 and 8) and thread two fender washers and a 1/4-20 locking nut
onto each of the carriage bolts from inside the Crown Victoria's trunk (see Figure 9). Leave the nuts loose at this time.
FIGURE
8
FIGURE
9
FIGURE 4
FIGURE 5
Step 3 With a center punch and a hammer dimple the hole locations to keep the drill from walking off location.
Step 4 Drill the two mounting holes with a 3/8" drill (see Figure 4).
Step 5 Locate the existing hole in the trunk sheet metal on the driver's side of the Crown Vic and drill a 3/8" hole through the
fiberboard for the cable (see Figure 5). Note: If you are installing a Double Stack Version of the Long WingMan that
is equipped with an ArrowStik, either drill the hole larger with a 3/4" diameter drill or drill an additional 3/8" hole
next to the first hole for the ArrowStik Cable!
