Code 3 Universal Mirror User Manual
Page 5
5

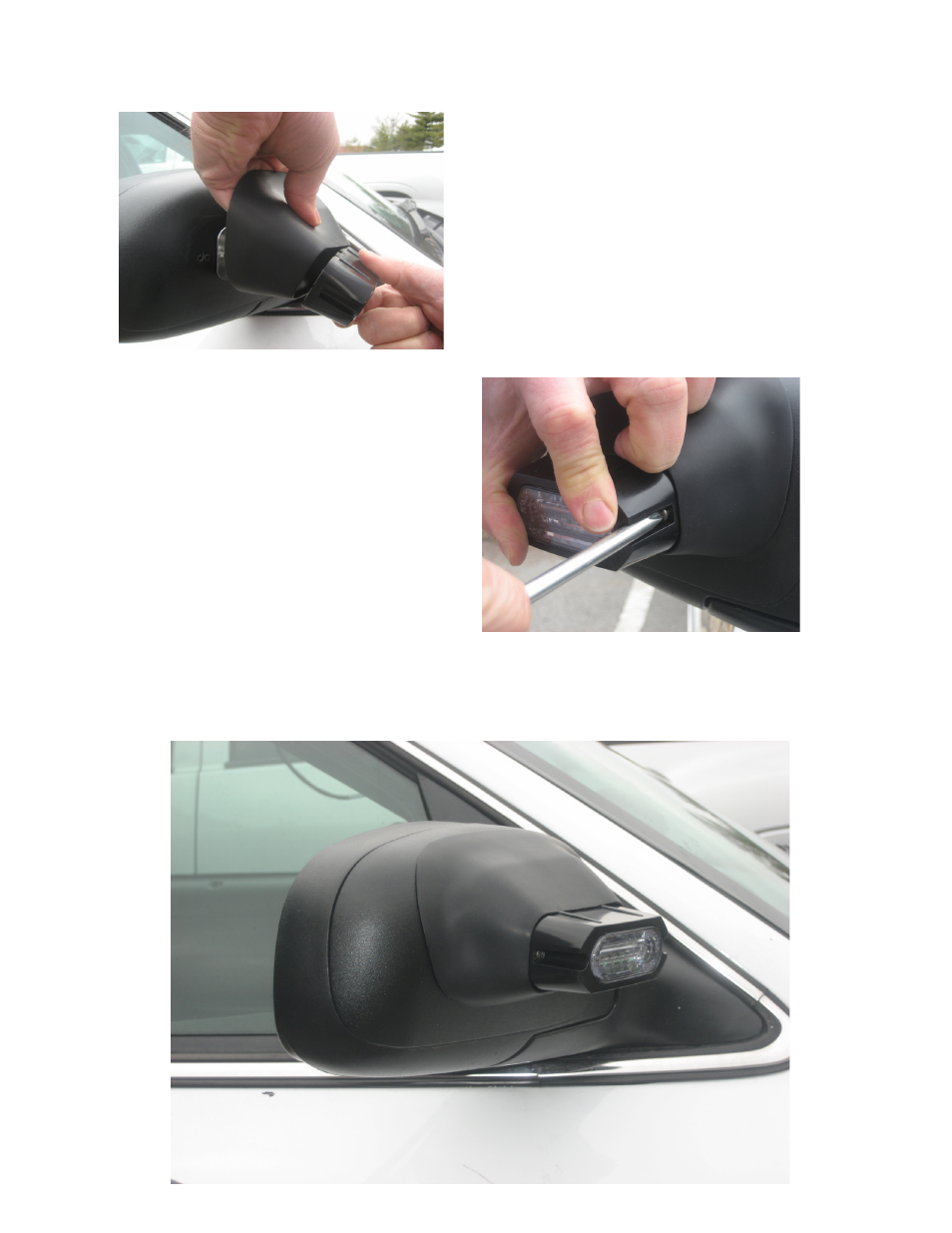

Step 5. Place light head and
cover over bracket assembly
installed on mirror housing
Step 6. Apply front-to-back
pressure to light head and
cover in order to seal cover
to mirror housing and seat
light head against bracket
assembly. Install screws
through front of light head
bezel and into bracket assy.
(Torque light head screws to 6-13 inch lbs)
(DO NOT exceed 13 inch lbs of torque)
(Completed Installation)
(Crown Vic Shown)
