Wiring Installation:
1. Use 11" wire tie wrap included in kit as a wiring snake for installing cable
through mirror housing.
2. Cut off the clinching end of the wire tie and discard (fig 1)
3. Using electrical tape, tightly wrap the cable to the wire tie (2-3 inches along
cable. (fig 2 & fig 3)
4.Push wire tie end through wireways between the door jam connection and the
mirror mounting locations in the assembly.
5. Depending on the model of vehicle being installed on, the mirror assmbly may
need to be removed from the door in order to feed wiring through the OEM wire
path and into the vehicle interior. Some models are easier to feed from the
door attaching point into the mirror rather than from the mirror inward.
6. Refer to the vehicle wiring guide to determine proper routing and interface for
the light head assembly being installed.
7. Refer to the T-Rex LED light head installation manual to determine setting of
(4) flash patterns available.
Wire functions:
a. Red- Power
b. Black- Ground
c. White- Pattern
d. Purple- Syncronization

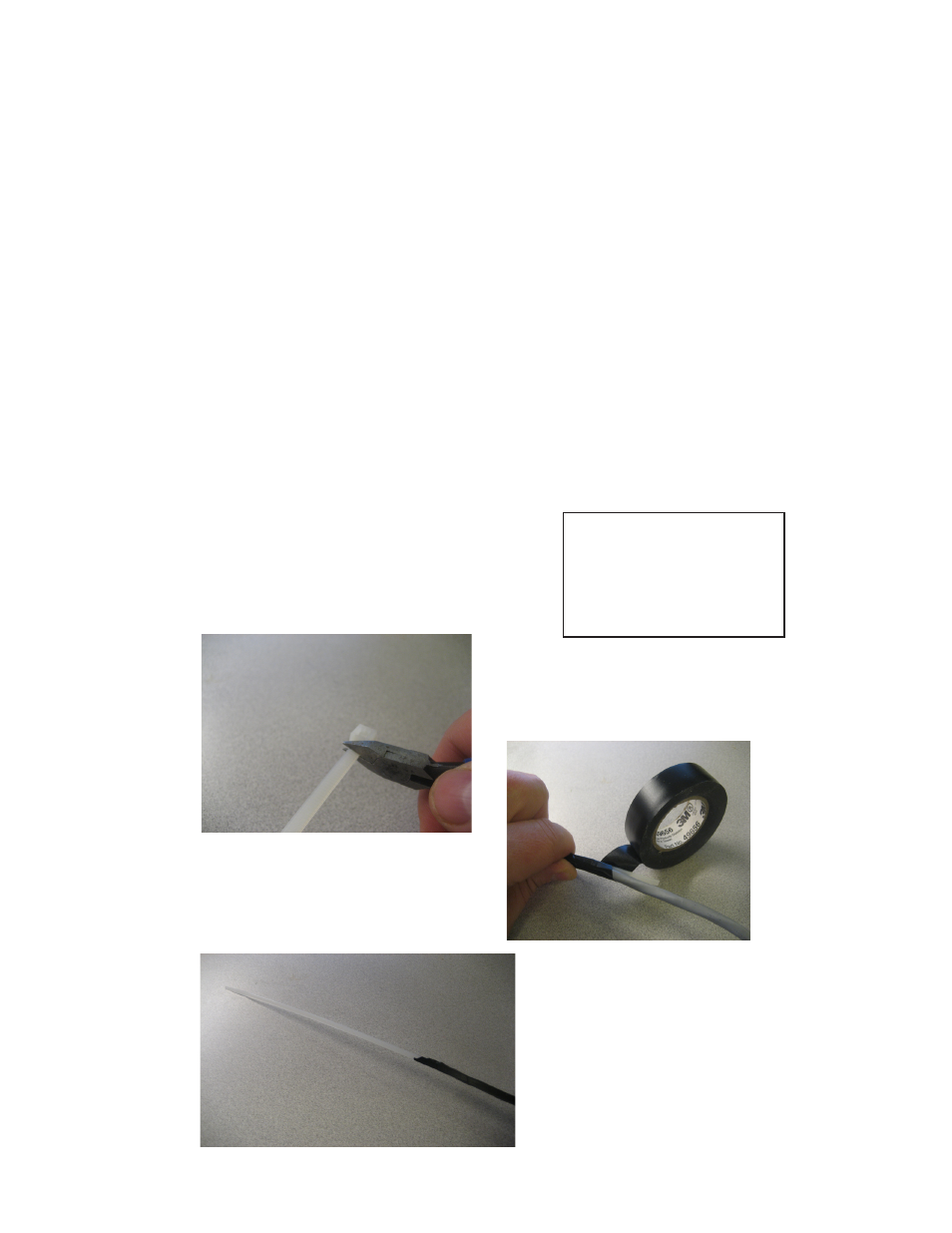

fig 1
