Code 3 TriCore NarrowStik Controller - Manual (Page 7)

7
Red, Red / White LED module Power +12V
White DIM Control wire
Brown
Orange
Tan INDIVIDUAL
Violet LED MODULE
Green CONTROL WIRES
Gray
Yellow
Blue
Blue Yellow Gray Green Tan Violet Orange Brown
DRIVER SIDE
PASSENGER SIDE
Cable Exit
Blue
Yellow
Gray Green Tan Violet
Orange
Brown
Brown
Blue
DRIVER SIDE
Cable Exit

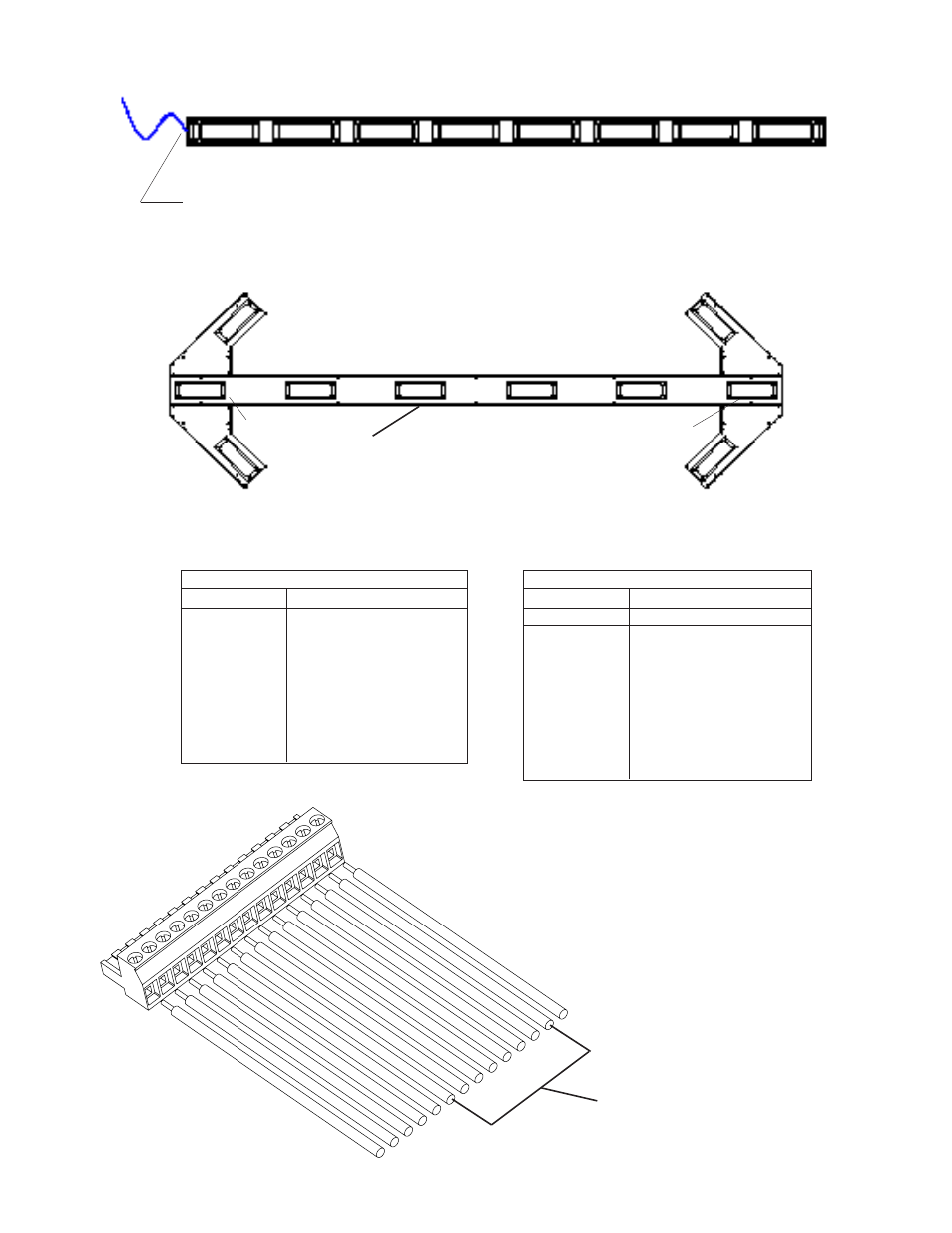

Figure 4
Wiring designations for a Rear Facing, Driver Side Cable
exit, system.
PASSENGER SIDE
11-wire Cable wire Designations
Narrowstik™ / WingMan™/ LC-Stik / Lightbar
Large LED Narrowstik™
Note: For a passenger side cable exit, or front
facing system the LED control wires will need
to be reversed. Wires are not shown reversed.
Red, Red / White LED module Power +12V
Brown
Orange
Tan INDIVIDUAL
Violet LED MODULE
Green CONTROL WIRES
Gray
Yellow
Blue
10-wire Cable wire Designations
AUX
BLUE
YELLOW
GRAY
GREEN
VIOLET
TAN
ORANGE
BROWN
EXTERNAL FLASH
WHITE (USED ONLY W NARROWSTIK 11 WIRE CABLE)
BACK LIGHTING
PROGRAMMING
CONTROL HEAD POWER
STANDARD 8 HEAD
WIRING CONNECTIONS
