Code 3 TriCore NarrowStik Controller User Manual
Page 11
11
EF
6
5
4
3
2
1
EF
5 Output / Head Operation
5 Output / Head operation can be determined by observing the Front Panel LED indicators when powered. All indicator
LEDs designated by the same number will function together 1, 2, 3-3, 4, 5. The two indicator LEDs designated by EF are
reserved for use in systems where the outboard positions will alternate during any arrow (LFT, CTR, RHT) pattern (see
End Flash Slide Switch on page 4)
5
4
3
3
2
1
8
8 Output / Head Operation
8 Output / Head operation can be determined by observing the Front Panel LED indicators when powered. All indicator
LEDs will function independently as designated by 1, 2, 3, 4, 5, 6, 7, 8.
7
6
5
4
3
2
1
6 Output / Head Operation
6 Output / Head operation can be determined by observing the Front Panel LED indicators when powered. All indicator LEDs
designated by the same number will function together 1, 2, 3, 4, 5, 6. The two indicator LEDs designated by EF are reserved
for use in systems where the outboard positions will alternate during any arrow (LFT, CTR, RHT) pattern (see End Flash slide
switch on page 4)

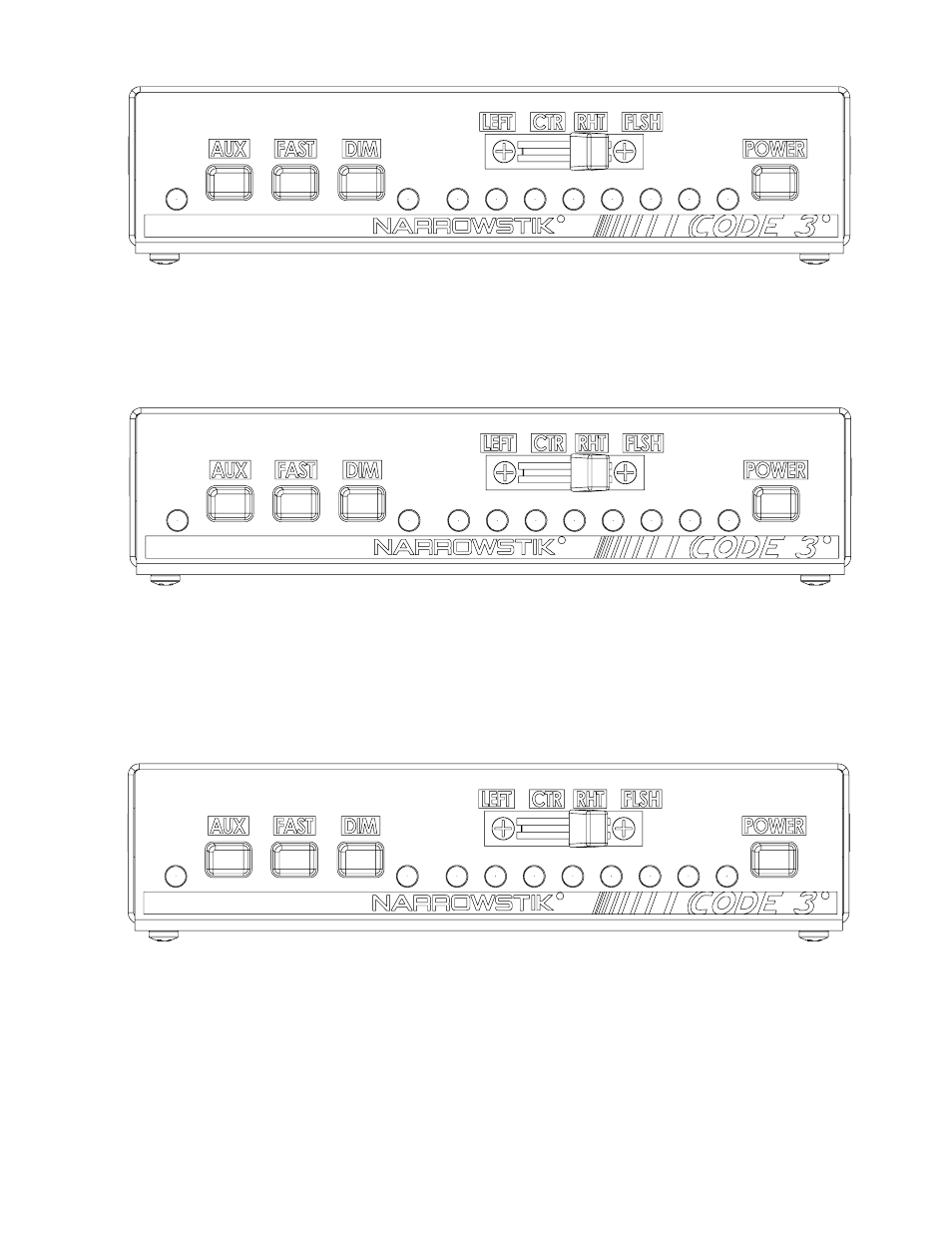

Figure 6
Front Panel indicator LED operation for 8, 6 or 5 head operation
EF
EF
