For Problems with the Upper Gasket during installation!
If you experience problems with the Upper Gasket during installation, follow the simple steps below.
1. Take (5) short pieces of masking tape and stick about 1/4 of an inch of the end of each piece of the
tape to the gasket as shown in Figure-11 below.
2. Pull the gasket back with the tape and stick the other end of the masking tape to the Unit's housing in
a location that won't interfere with the installation. Make sure you leave a little tail of the masking tape
loose so you can pull it loose easily later.
3. When you have the unit mounted and in the desired position/location with all of the fasteners tight-
ened just pull the tails of the tape loose from the unit's housing and then just pull it loose from the
gasket. The gasket will gradually flip up against the windshield and into it's final position.

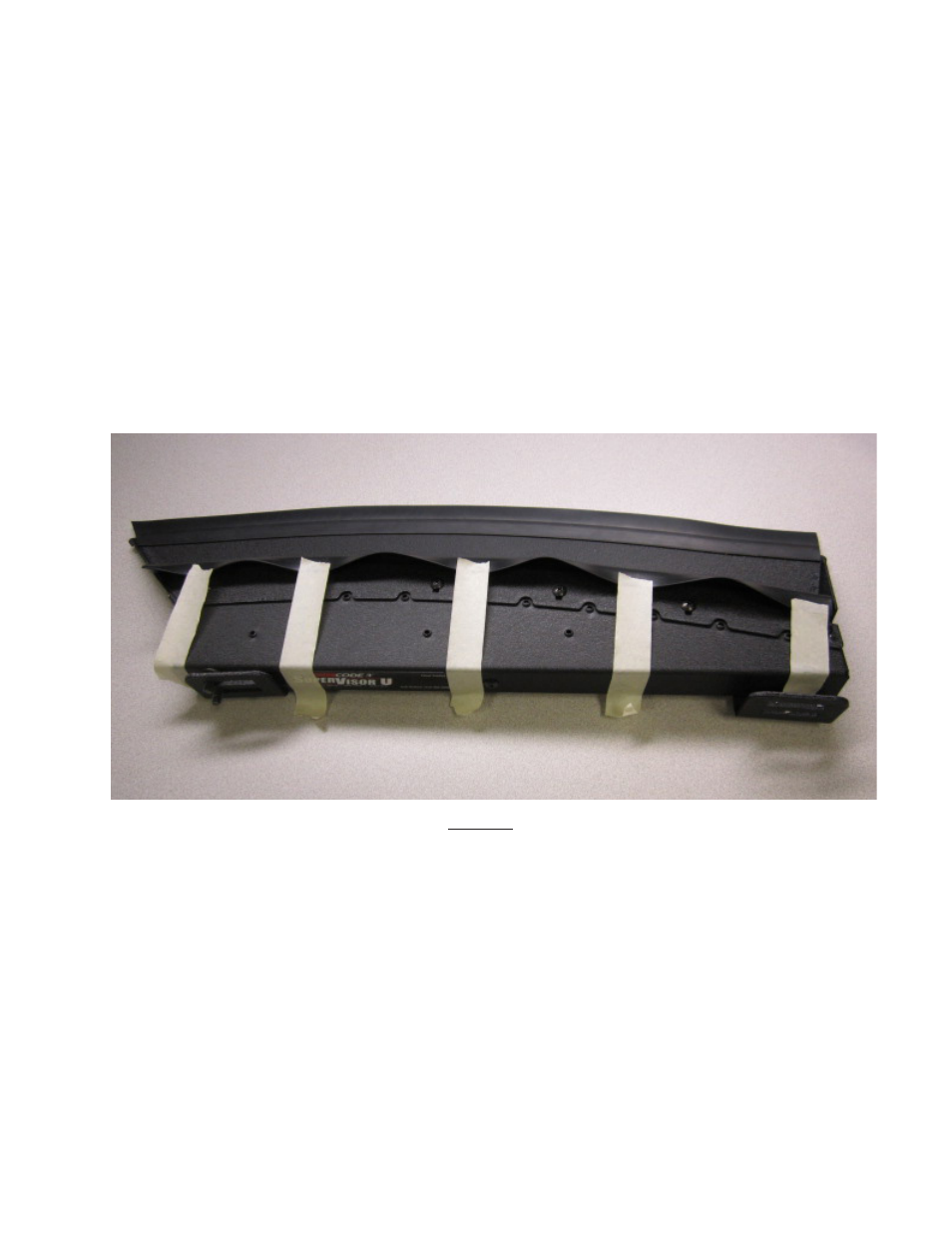

FIGURE 11
