Code 3 Stop/Turn/Tail - Manual (Page 5)

5

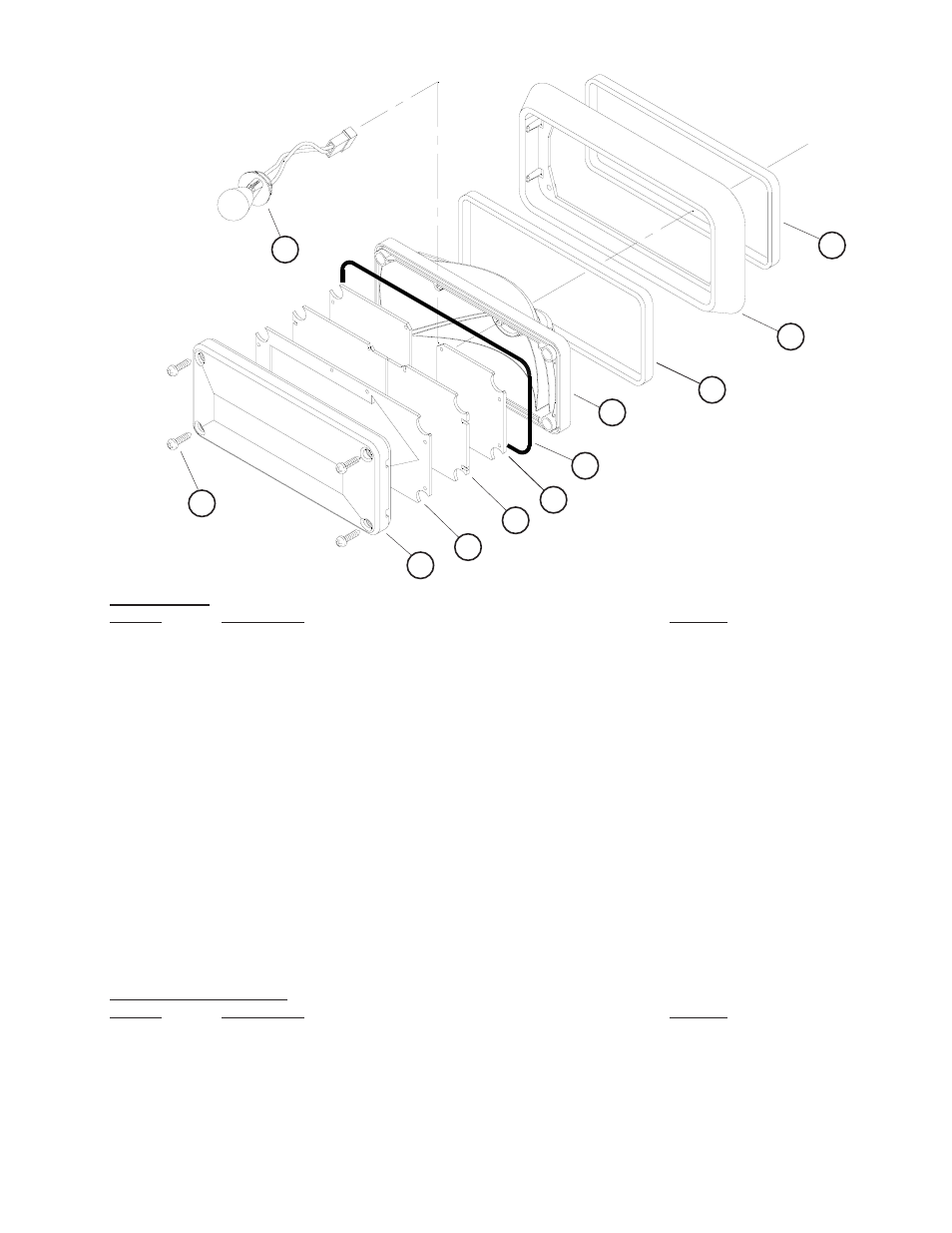

Parts & Exploded Views
Parts List
Ref No. Description Part No.
1 Lens T02271 (Clear)
T02272 (Red)
T02274 (Amber)
2 Filter Half (2 Shown) S81360M (Clear)
3 Reflector T07021
4 Gasket T05328
5 Dual Filament Lamp Assembly S81362M
6 Trim Bezel T07023
7 #6 Sheet Metal Screw, 1 1/2" long T07028
8 Rope Gasket T07005
9 Scene Light Filter (only with Reverse lights) T02291 (8° and 12°)
10 Turn Arrow Insert (only with Turn Signal lights) T05875
Parts Not Shown
Ref No. Description Part No.
Stack Housing T05872
Surface Mount Stack Housing T03824
1
2
10
8
9
3
4
6
4
5
FIGURE 5
7
