Code 3 PSE475 Remote Strobe Power Supply User Manual
Page 10
10
MULTIPLE FLASH MODES
By selecting the proper switching, any number of flash modes can be used.
Example: Triple Flash with Five Flash
FIGURE 7

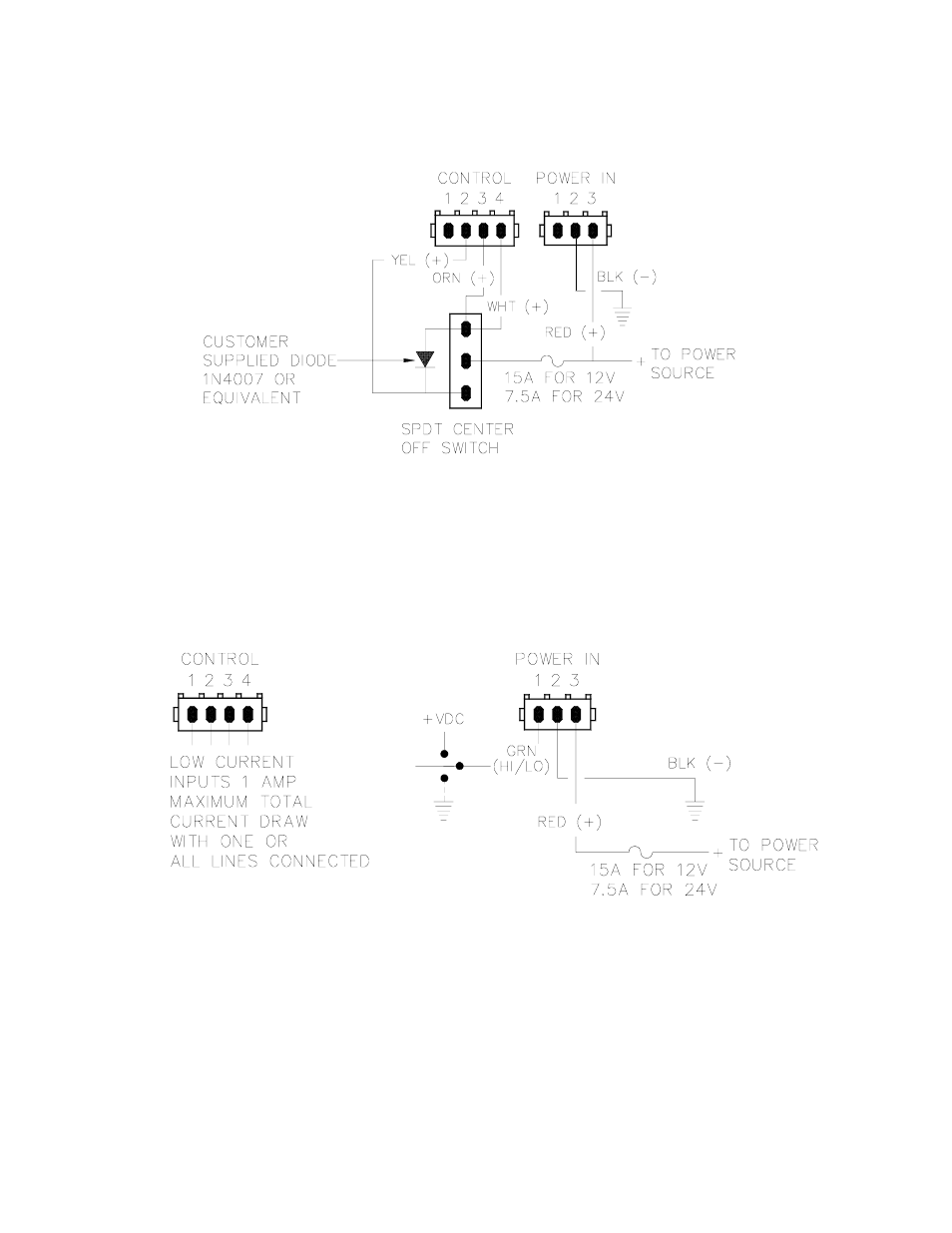

LOW CURRENT SWITCHING CONTROL
The PSE475 Power Supply utilizes low current switching. This means, if desired, the power in (RED) connec-
tion can be connected directly to the source (+), and the control connections can be used to switch the strobe
supply on or off using a low current source (+). See Figure 7.
4 OUTLETS ON-OFF-ON
HIGH POWER ONLY
