9

It may be necessary to retrofit the new 11-wire cable to a 5 output control system. The required connections are shown below, in Fig. 9, to
connect a 5 output control head or a 5 output RLS. Stand alone LED Narrowstiks and internal Lightbar LED Narrowstiks will follow the same
wire designations. Refer to the 5 output control head user manual, or RLS manual, for control head operation.

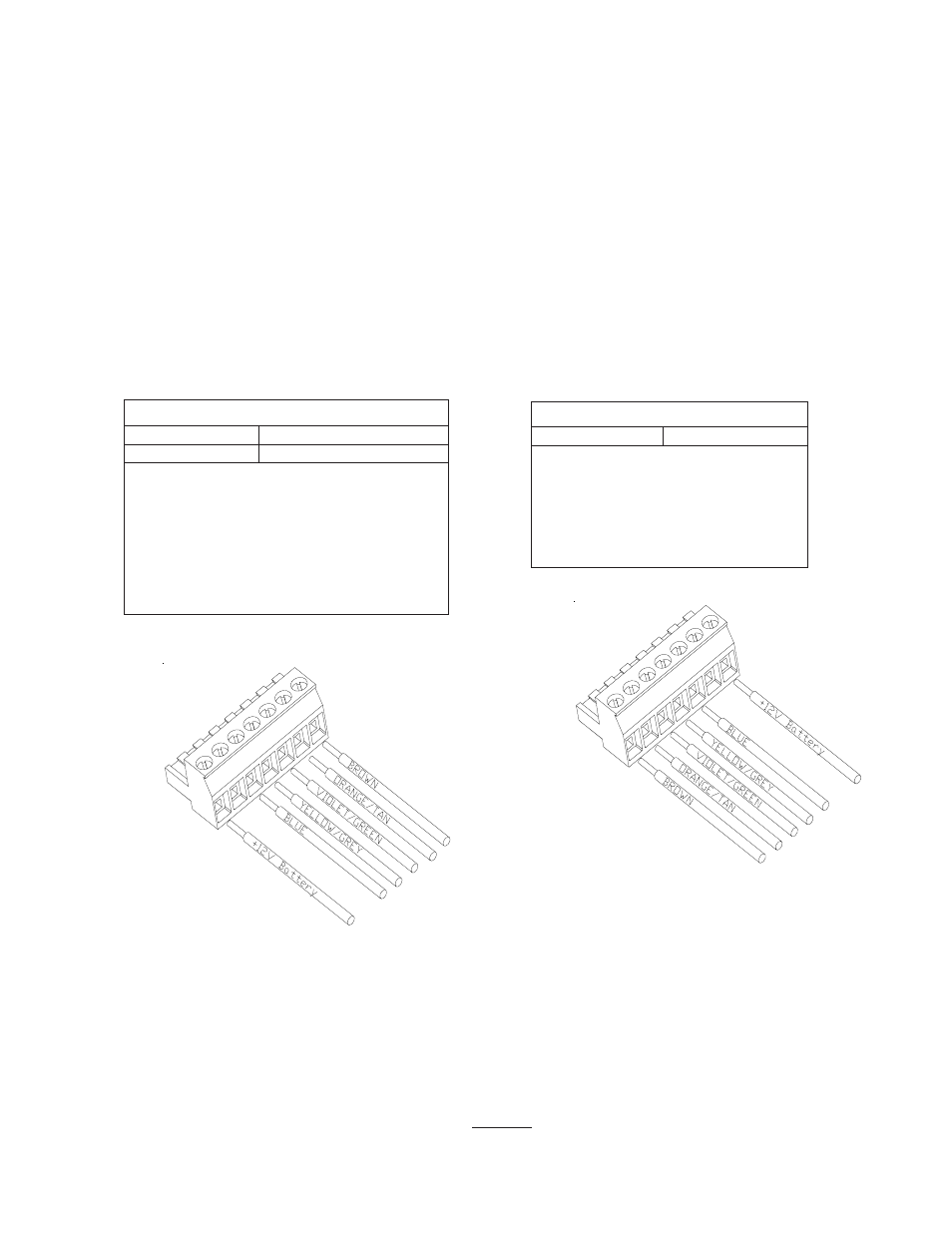

Connecting An 11-wire LED Narrowstik cable

to a 5 Outptut Control Head or RLS System

Figure 9

RED, RED/WHITE Power (+12V) wires
WHITE

LED DIM Control wire

BROWN
ORANGE
TAN

Individual

VIOLET LED Control Wires
GREEN
GREY
YELLOW
BLUE

New Standard 11-Wire Cabler Designations

As shown, the Orange and Tan, Violet and Green, and the Grey and Yellow wires will need to be paired into each single output as
indicated. Note that the each wire shown with two color designations is actually representing two individual wires into a
single output.

RED, RED/WHITE Power (+12V) wires

BROWN
ORANGE Individual LED Control
VIOLET Wires
YELLOW
BLUE

Existing 7-Wire Cable Designations

NASLDC, 5 Output Control Head Connections

RLS 5 Output Connections
