Code 3 LED X NarrowStik (Large Head) - Manual (Page 5)

5
Blue
Yellow Grey Green Tan Violet Orange
Brown
Brown
Blue
DRIVER SIDE
PASSENGER SIDE
Input Cable
STANDARD REAR FACING MOUNTING
BLUE
YELLOW
GREEN
VIOLET
GREY
ORANGE
BROWN
TAN
WHITE
RED, RED/WHITE Large L.E.D. Narrowstik® (+12V) wires
WHITE DIM Control wire
BROWN
ORANGE
TAN
INDIVIDUAL
VIOLET L.E.D. MODULE CONTROL WIRES
GREEN (SEE FIGURE 5)
GREY
YELLOW
BLUE
CONT HD PWR (+12V)
11-Wire Cable Wire Designations-Standard Rear Facing Mounting
Figure 5

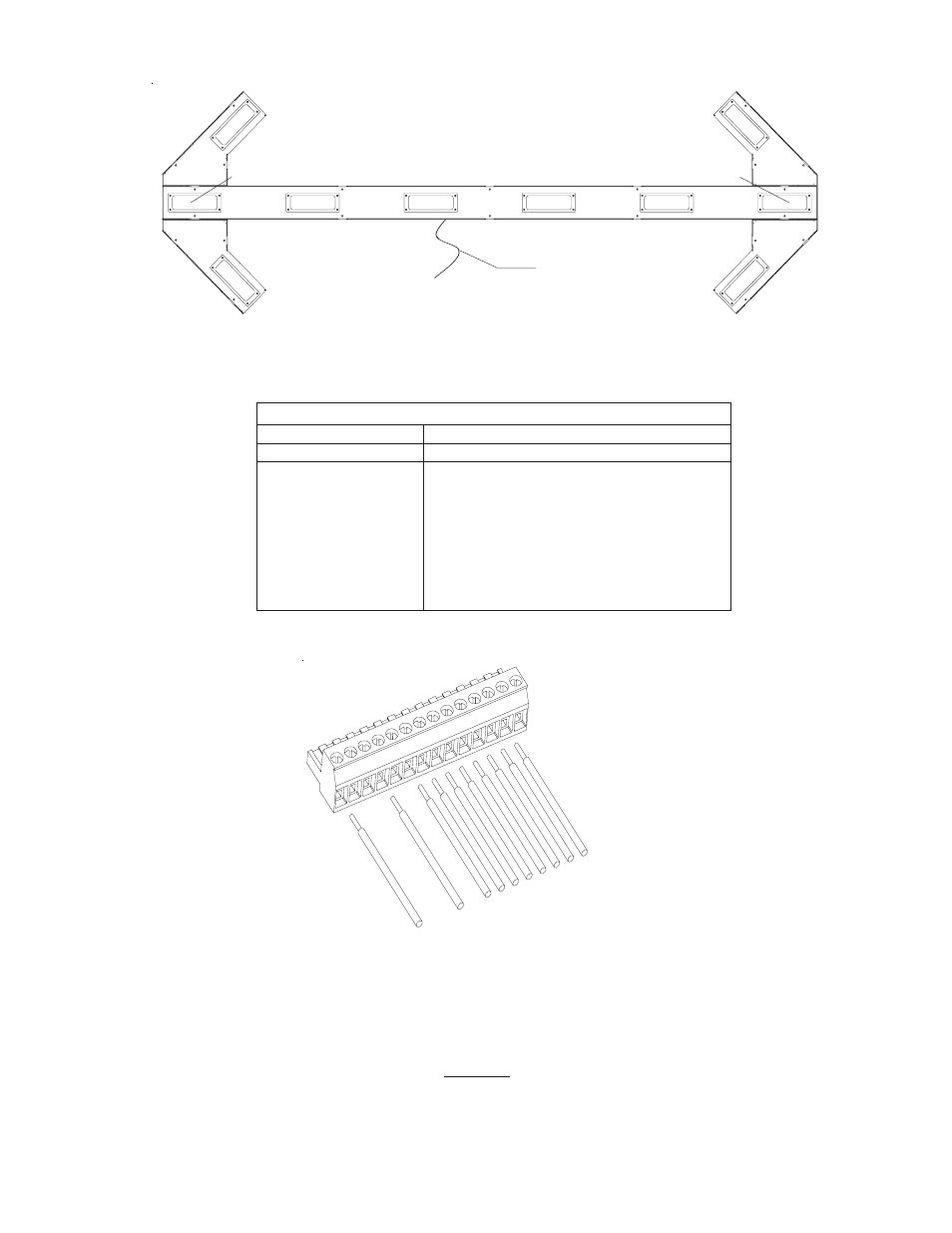

Rear Facing System Wiring
Large LED Narrowstik wire designations for standard rear facing mounting
