6

Steady burn Setting

The DEFENDER's® Steady Burn feature allows up to two (2) of the light bar's TriCore® light heads to be designated to operate in Steady Burn

mode. The Steady Burn TriCore light heads are always connected to connectors P9 & P10.

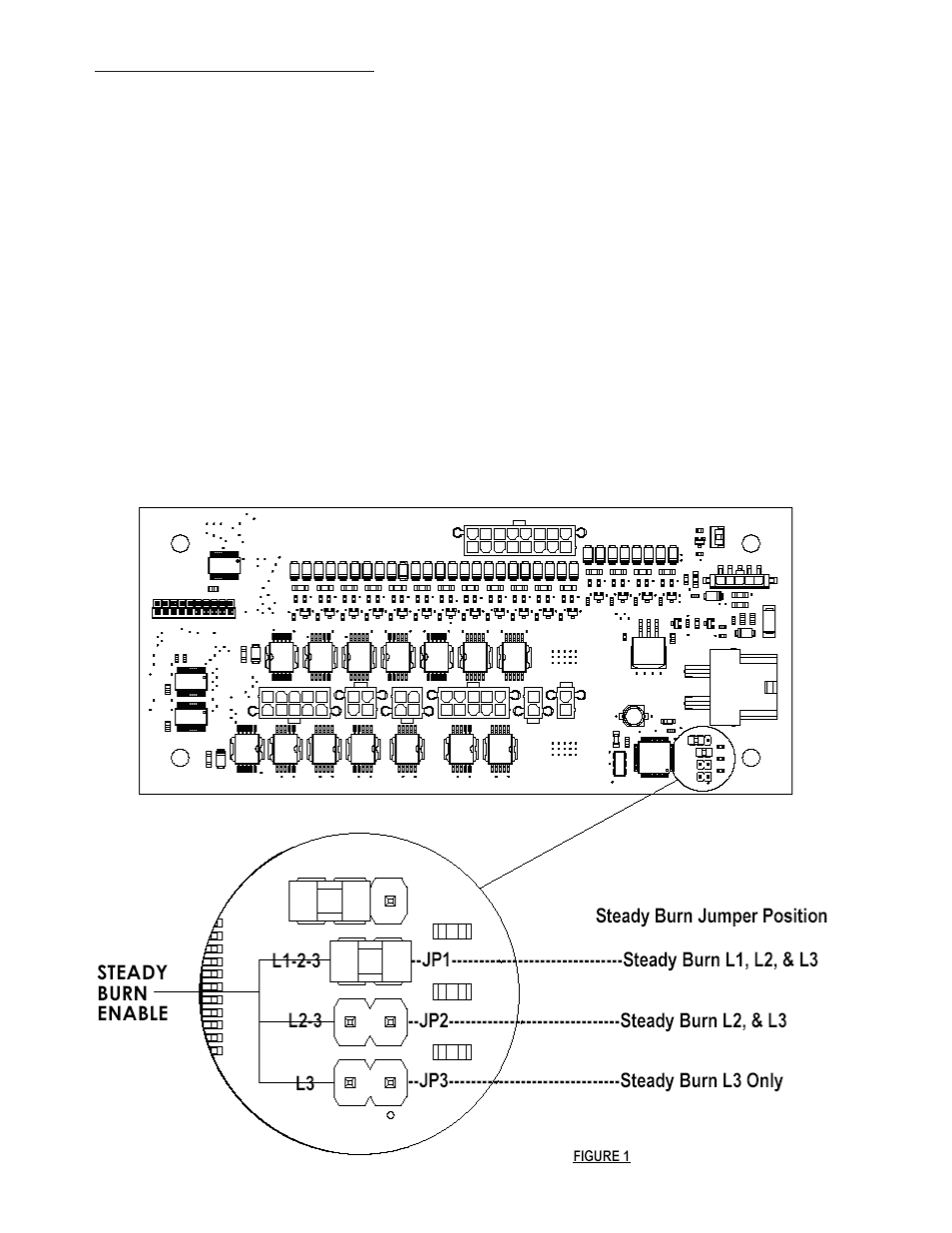

The Steady Burn outputs are enabled by the 3-Level control inputs. The DEFENDER may be configured so that Steady Burn TriCore light heads

are on when either L1, L2 or L3 are active (JP1 position); when L2 or L3 are active (JP2 position) or just when L3 is active (JP3 position). Simply

move the jumper to the appropriate location (JP1, JP2 or JP3). Refer to the detail in Figure 1.

FLASh PATTERN SELECTION NOTES:

*when the ArrowStik® Left and ArrowStik Right wires are both connected to +power, the Center-Out ArrowStik function is activated.

**when the Pattern Select wire is connected to +power and all other inputs are off, test mode is enabled to exercise all outputs in

sequence until +power is removed from the wire.

If the light bar is equipped with Steady burning TriCore® light heads, these heads are enabled with the 3-Level input wires. The

jumper plug must be moved to JP1, JP2 or JP3 to select the 3-Level input which will enable the Steady burning TriCore heads, (see

Figure 1).

The Steady burn function for both the Take Down and Alley lights will always override the wig/wag Flash function.

The Cruise Light function is mutually exclusive with all other functions. If any other input has +power applied, the Cruise Lights will

be turned off. Light bars with software T116XXV6 or greater, T117XXV6 or greater or T118XXV2 or greater or T514XXV0 or greater can

operate the Cruise Light Function and the Dim Function together. The Dim Function has no affect on the Cruise Lights.
