Code 3 21TR & 21TR Plus - Manual (Page 17)

17

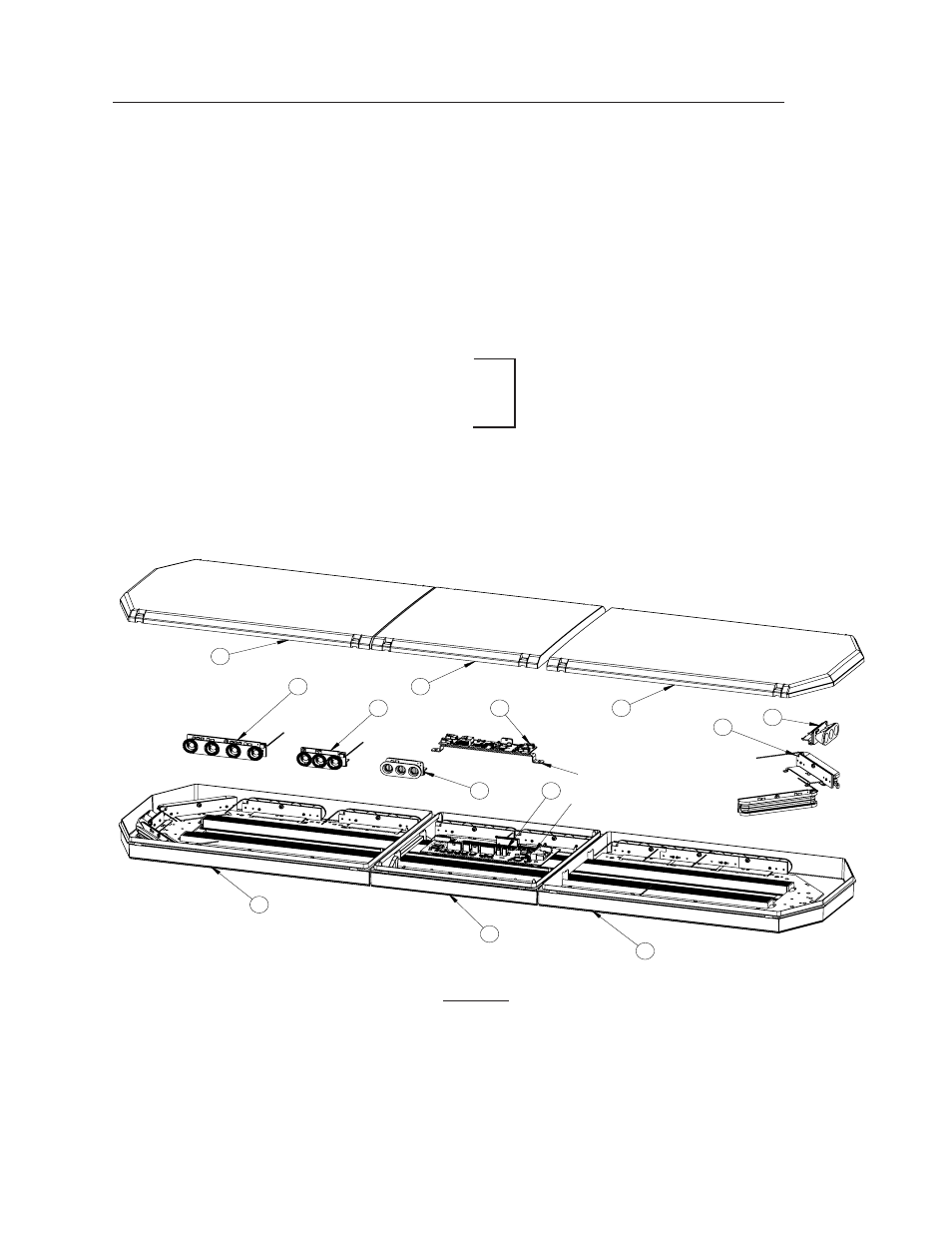

Parts List & Exploded View
(Reference numbers identify items shown in Figure 11)
Ref No. description Part No.
1 Bottom Outboard Lens - Clear T02361
2 Bottom Center Lens - Clear T02371
3 Outboard Lens Cap
Clear T03271
Red T03272
Blue T03273
Amber T03274
Black T03278
4 Center Lens Cap
Clear T03281
Red T03282
Blue T03283
Amber T03284
Black T03288
5 4LED Directional Module
6 6LED Corner Module
7 3LED Takedown/Alley Module
8 3LED Directional Module
9 21TR TM Central Controller T11568
10 21TR Plus TM Central Controller (shown in installed location) T11564
Call Factory
1
1
2
6
7
7
3
3
4
9
5
21TR Central Controller Shown
8
21TRPlus Central Controller Shown
as installed
10
FIGURE 11
Troubleshooting
All lightbars are thoroughly tested prior to shipment. However, should you encounter a problem during installation or during the life
of the product, follow the guide below for information on repair and troubleshooting. Additional information may be obtained from the
factory technical help line at 314-996-2800.
