xiv
CHAPTER 5: CONFIGURATION
5.1 CONFIGURATION OVERVIEW
The scale contains two main setup menus: The Setup (“F”) menu configures the factory settings for
your scale. The User (“A”) menu configures the COM1 serial communication port and enables some
user options. The Setup and User menus consist of several menu selections, each with its own sub-menu of
choices.
To set up the scale, you must first enter the appropriate menu mode. Once there, four of the front panel keys
become directional navigators to move around in the menus, and one key is used to save or SET the selections.
5.2 SETUP (“F”) MENU
The Setup (“F”) Menu is considered too technical for the operation guide. Please refer to the 630 Service
Manual for complete coverage.
5.3 USER (“A”) MENU
5.3.1 ENTERING THE USER MENU
1. Toggle the ON/OFF switch to the OFF (0) position.
2. Press and hold the 8 key while powering back on the scale. When the scale shows ”
A 1” you are in User Menu mode and you may release the 8 key.
5.3.2 NAVIGATING IN THE USER MENU
Use the directional keys shown in Figure 5-1 to move around in the User Menu Chart shown
in Figure 5-2 on the following page. Detailed descriptions of the User Menu can be found in
Table 5-1.
1. To move to a new “A” heading, use the 4 (left) or 5 (right) key to move right or left in the
User Menu Chart.
2. To move to the selection level, press the 2 (down) key once. The current saved
selection is shown.
3. To view the available selections for the current “A” heading, use the 4 (left) or 5 (right)
key to move through the selection field.
4. To save a new selection, press the ENT (Set) key .To exit without saving, press the 1
(up) key to return to the current “A” heading.
5. Repeat Steps 2 through 5 until the User Menu is programmed.

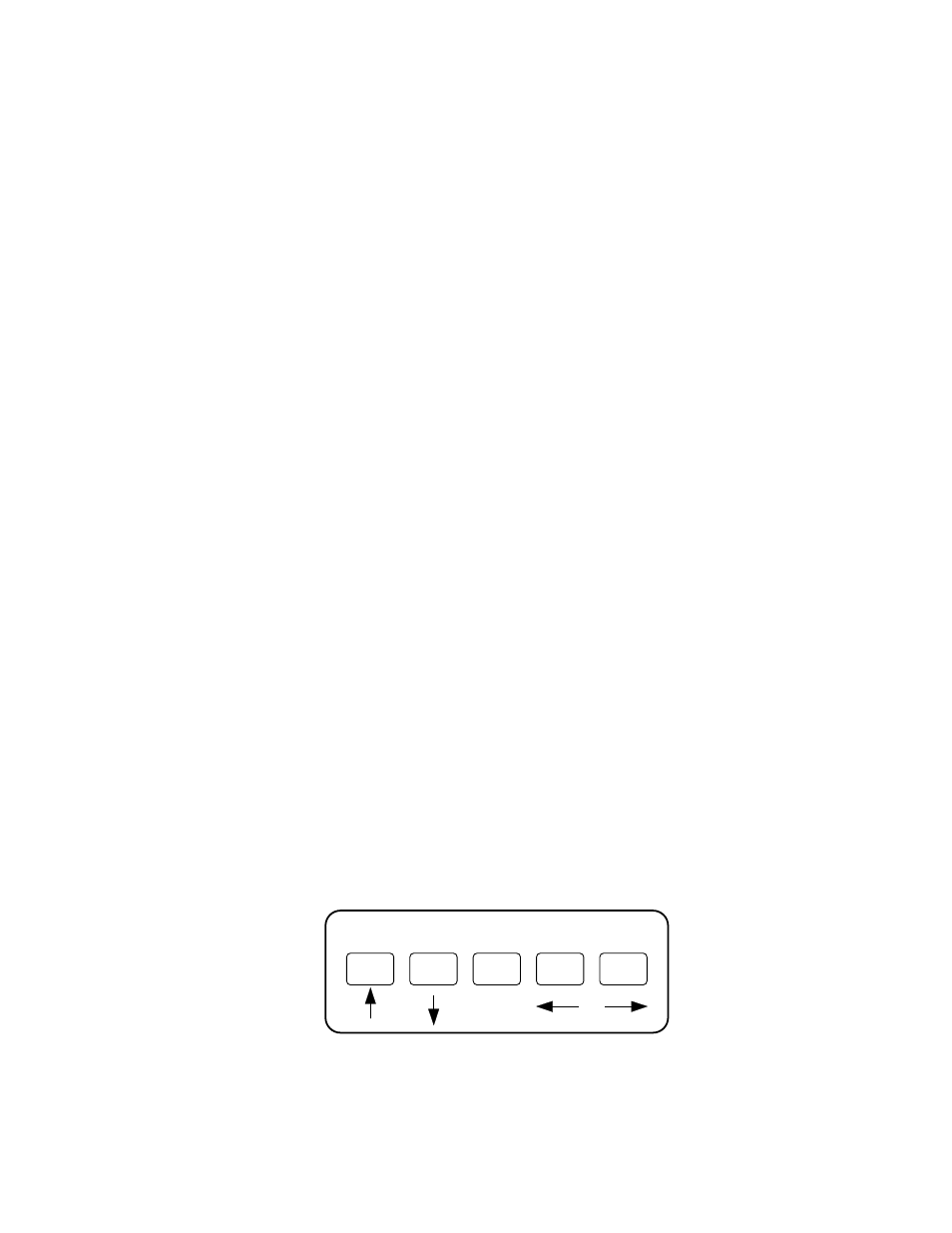

USER MENU MODE KEY FUNCTIONS
2
ENT
4 5
SET
1
Figure 5-1: User Menu Key Assignments
