7
ENGLISH

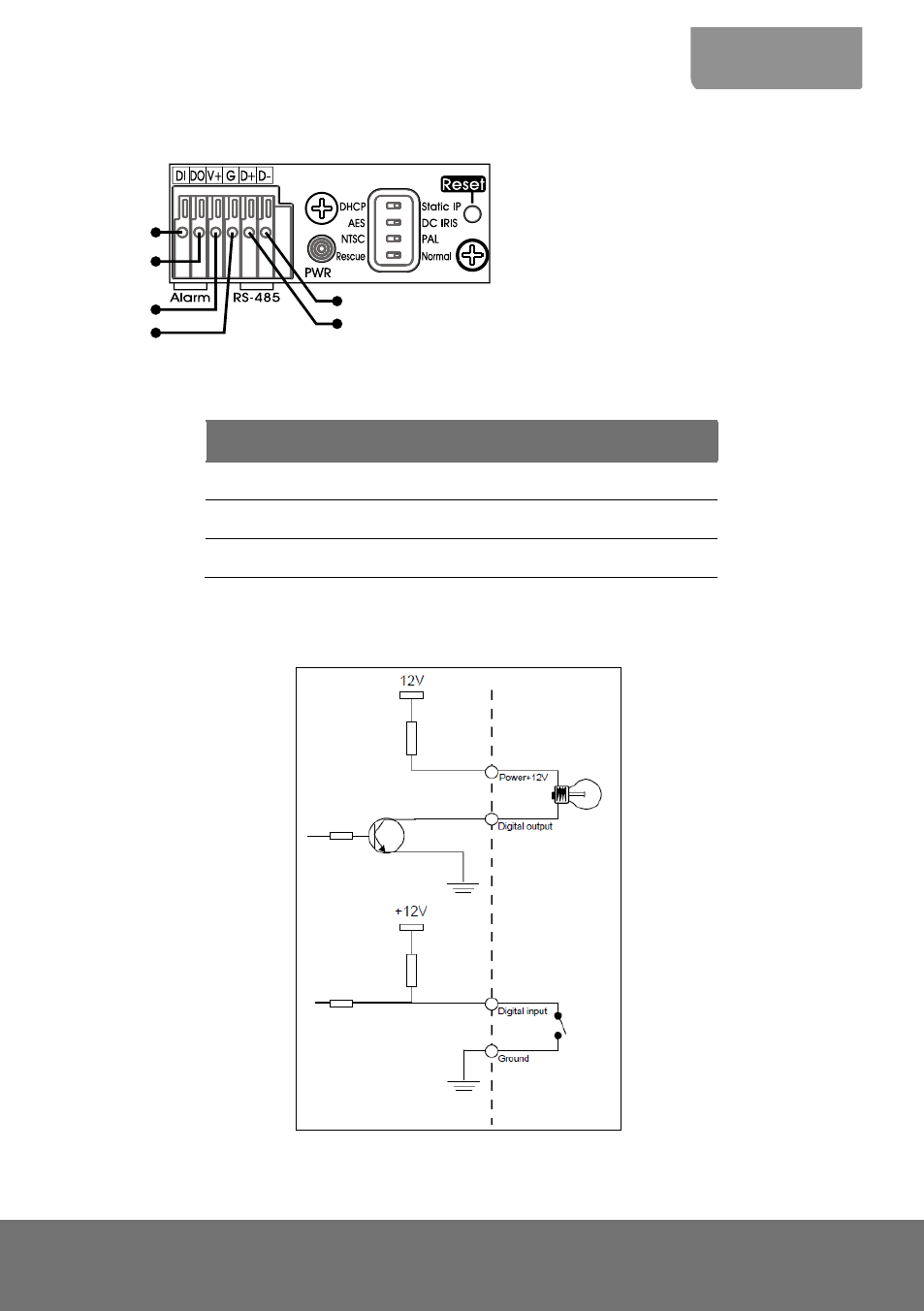

Connecting External Devices to I/O Terminal Block
(5)
(1)
(2)
(3)
(4)
(6)
(1) Alarm Data In
(2) Alarm Data Out
(3) Power 12V support 200mA
(4) Ground
(5) RS-485 (+)
(6) RS-485 (-)
Power LED
LED
Status
Steady Red
Power on
Blinking Red
Firmware update complete
No Light
Power off
Internal Connection Diagram of DI/DO
