9
ENGLISH

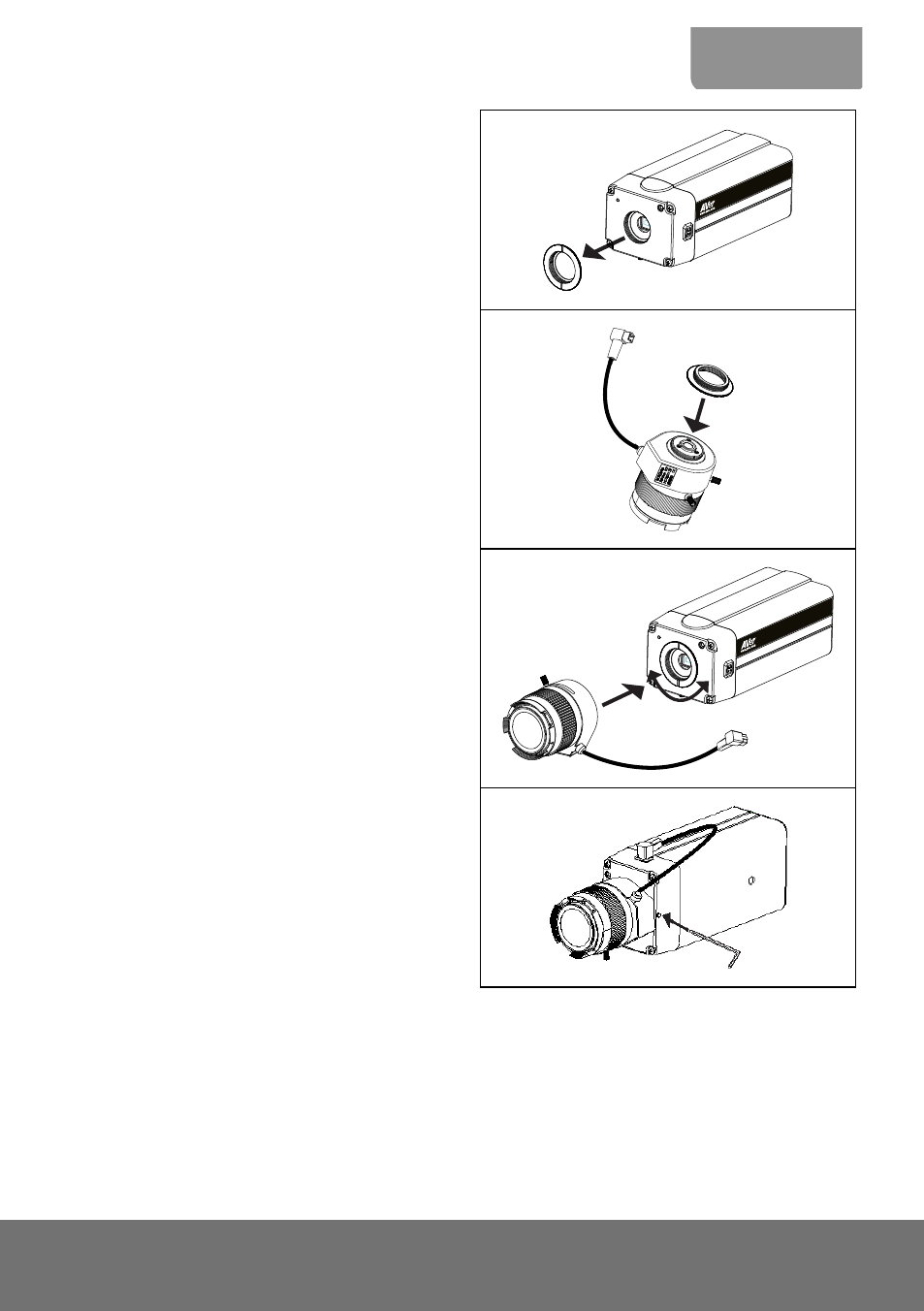

6. Remove the CS-mount ring from the IP
camera.
7. Screw the CS-mount ring to the CS-mount
lens.
8. Screw the CS-mount lens clockwise back.
Unscrew a little and plug the CS-mount lens
cable to the socket. Repeat this till the IP
camera display the image properly.
9. Once the IP camera has detected the image,
use the L-type hex wrench slightly secure bolt
underneath the IP camera.
[Note] Do not fully tighten bolt underneath the IP
camera for it may damage the CS-mount ring.
