EH1116H-4 Nano

i

- All connected devices have their own power supply are necessary.

- EH1116H-4 Nano only supports first 4 channels (CH01~04) for IP cameras.


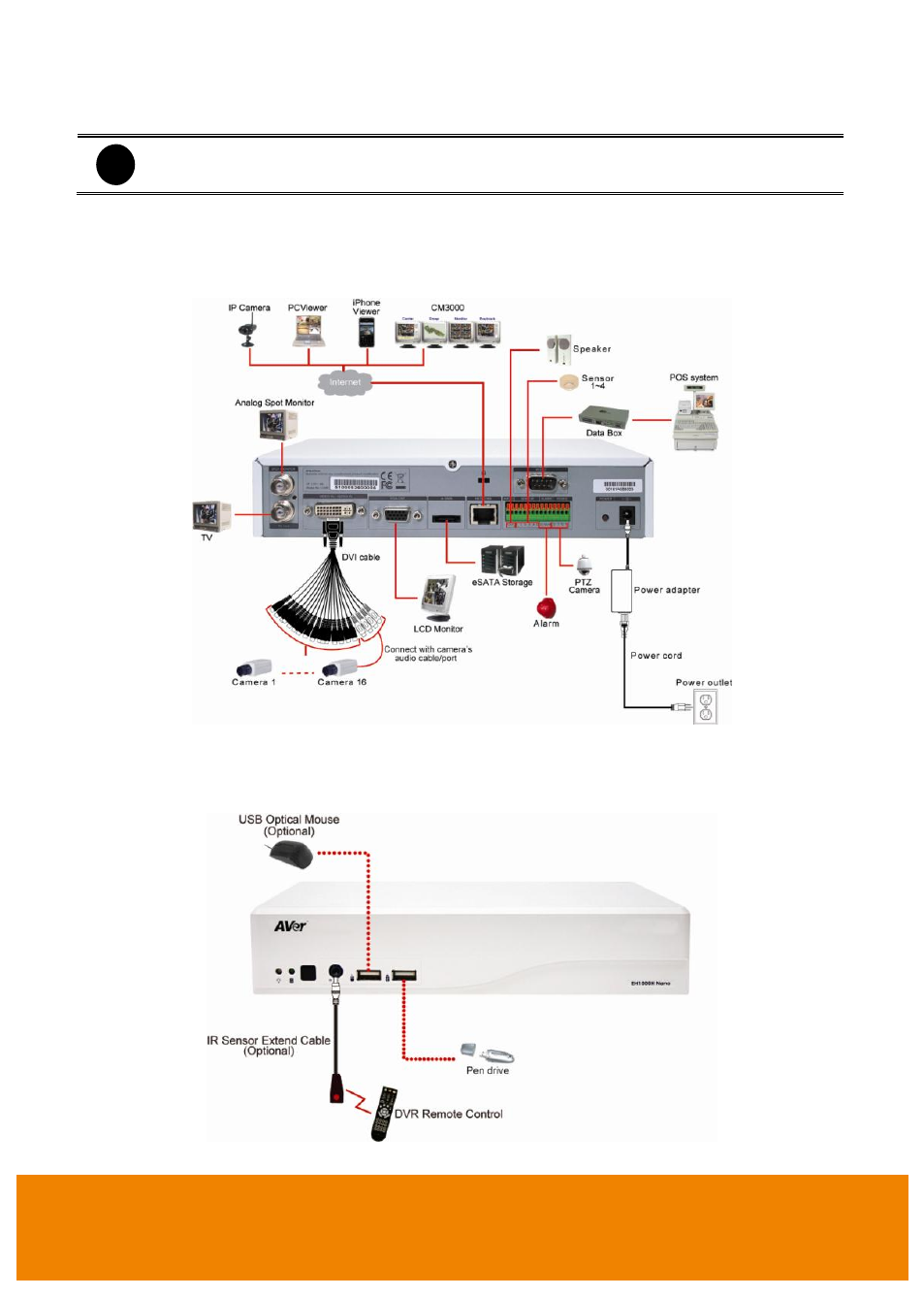

The back panel of the EH1116H-4 Nano user can connect up to 16 cameras in combination of analog
and IP camera. The DVR unit also can connect 4 sensor devices, 1 alarm devices, and output video to
a LCD monitor.

For backup recorded video, plugging the pen drive or external hard disk through USB port that are
located at front panel of DVR unit, and then, use the bundled software enables user to transfer,
playback and segment the video. Follow the illustration below to make the connection:
