8
INSTRUCTION MANUAL

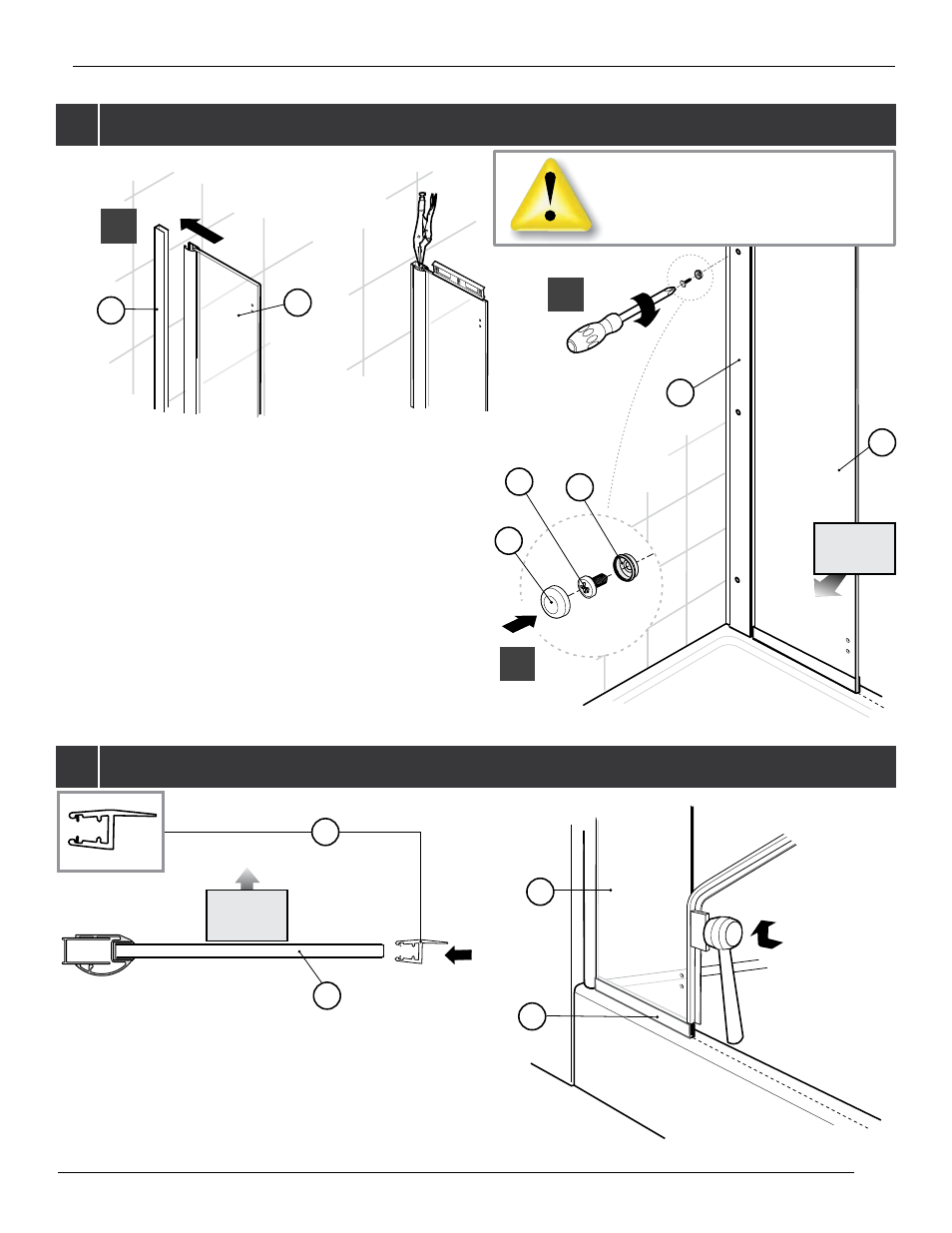

INSTALL THE FIXED PANEL.
3
INSERT THE FIXED PANEL GASKET.
4
4A. Align the fixed panel gasket to the top of the aluminum
“u” channel (#4). Insert it with a 2˝ x 6˝ x 1/2˝ block and
a mallet. Trim the excess using the cutting plier.
9
3
3
4
INTERIOR
SHOWER SIDE
3b
3B
3a
INTERIOR
SHOWER SIDE
12
11a
11b
3C
3A. Reposition the fixed panel on the wall jamb and in
the aluminum “u” channel. Secure it with the plier.
3B. Combine the 3 3/8˝ screws (#12) with the inner
screw caps (#11b). Fasten the fixed panel.
3C. Snap the screw caps (#11a) over the screws.
IF THE PANELS NEED MORE ADJUSTMENTS,
SHIM WITH 1/8” CLEAR SETTING BLOCKS
(ITEM#15), PRIOR TO FIXED PANEL.
2
3
3A
