7
INSTRUCTION MANUAL
FASTEN THE “U” CHANNEL.
2
OPTIONAL
RUN A BEAD OF SILICONE IN THE
ALUMINUM “U” CHANNEL.
COVER THE PLIER’S TEETH BEFOREHAND TO
AVOID SCRATCHING THE ALUMINUM PARTS.
2
4
3
2
3
4
2
2A
2B
2C
2B
2D
2E

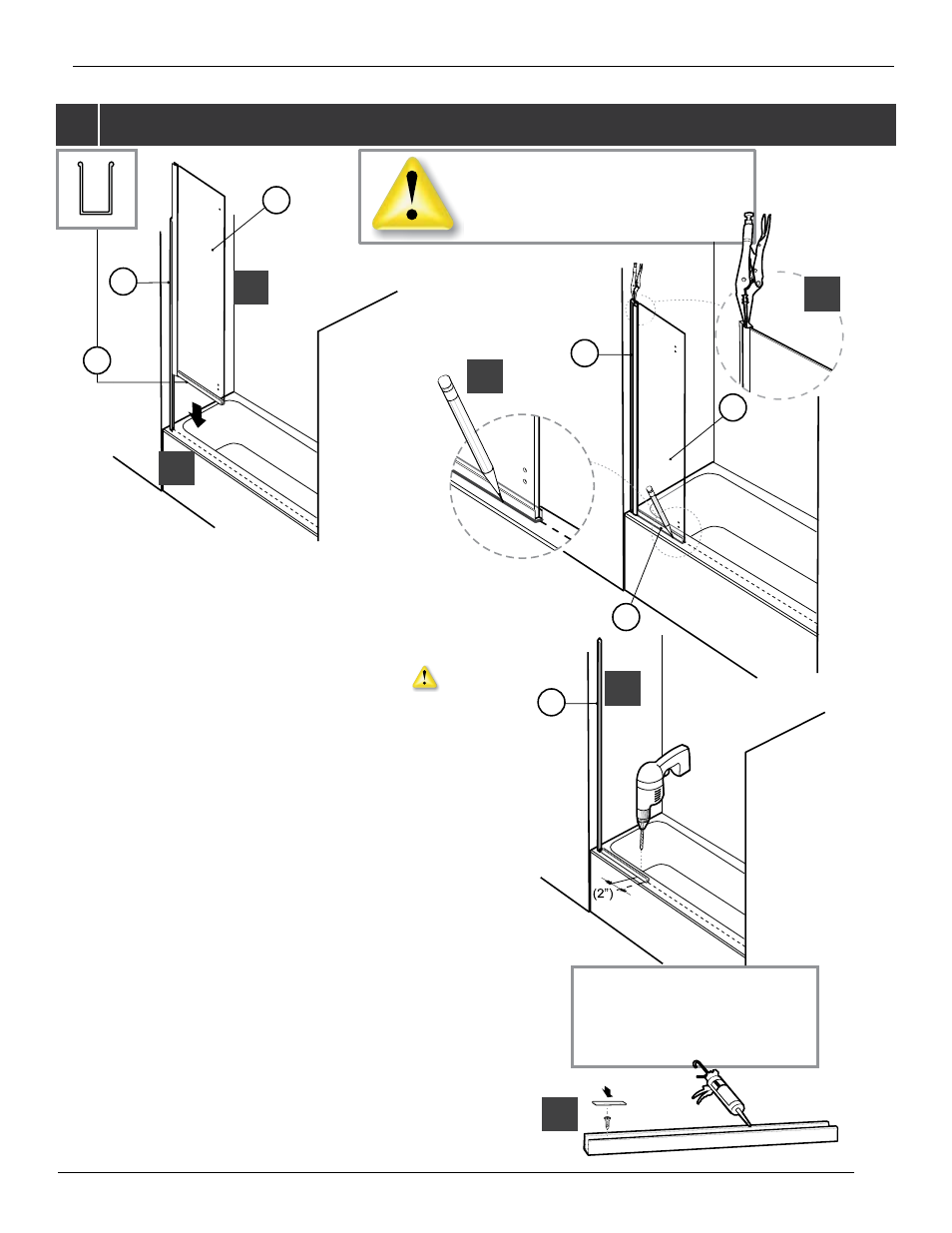

2A. Place the aluminum “u” channel (#4) on the fixed panel
and align it with the wall jamb.
2B. Slide the fixed panel over the wall jamb (#2). Secure the
fixed panel to the wall jamb using a locking plier.
2C. Trace the outer edges of the aluminum “u” channel (front
and side) on the tub threshold. Remove the fixed panel.
2D. Realign the aluminum “u” channel on the threshold
and drill a hole using a 1/8˝ drill bit at about 2˝ from the
edge. Put a drop of silicone in the hole and fasten the
aluminum “u” channel with a 3/4˝ long screw (#14).
2E. Place a clear setting block (#16) in the aluminum “u”
channel to cover the screw.
