INSTRUCTION MANUAL
1B

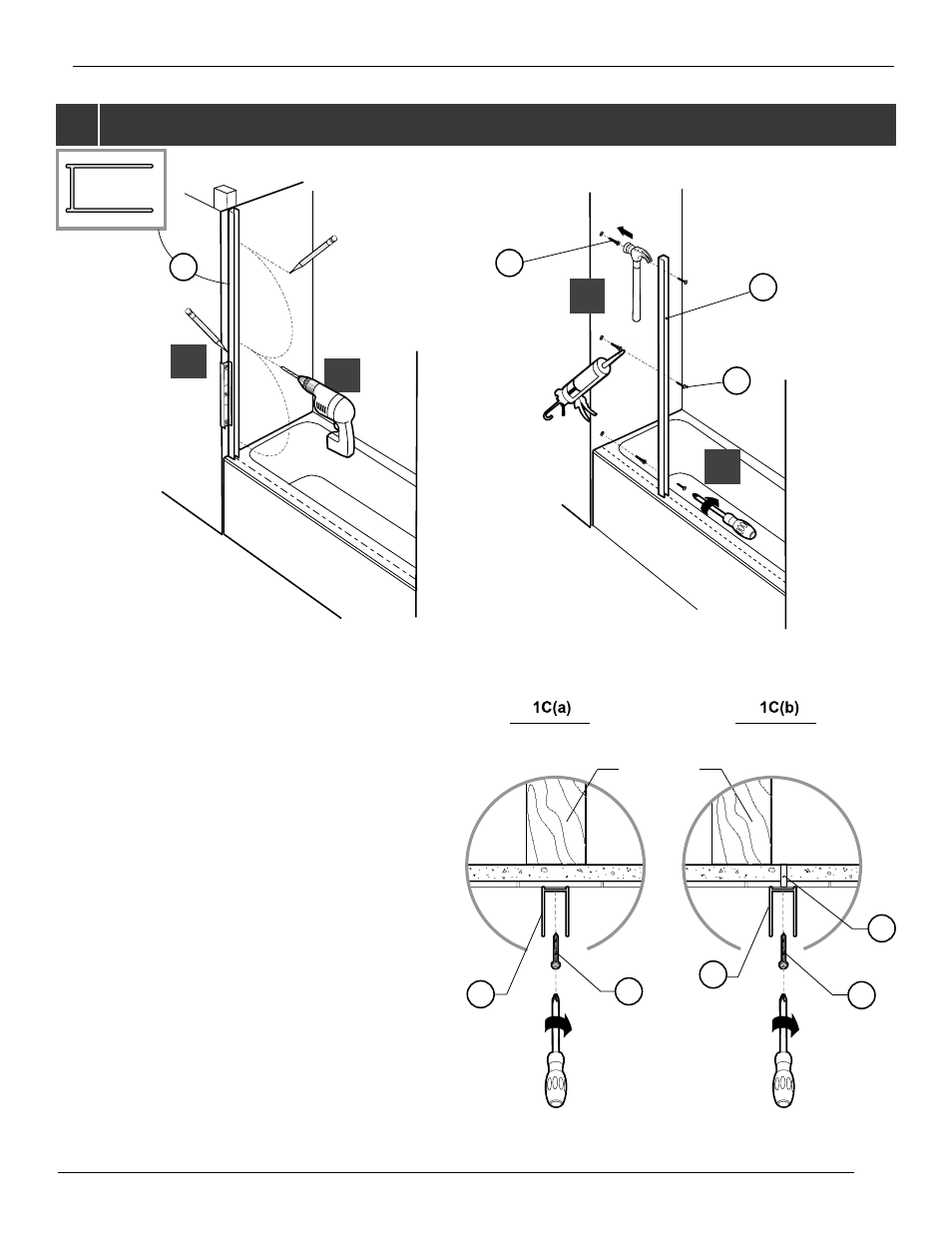

MOUNT THE WALL JAMB.
1
1A. Place the wall jamb (#2) on the center of the tub
ledge and align it using a level. Trace the outer
edge of the wall jamb and the holes onto the wall.
Remove the wall jamb.
1B. With a 1/4˝ drill bit, drill 3 holes into the wall using
the marks as a guide.
1C. (a) Should you find the wood studs directly behind
the drilled hole location, skip this step.
(b) Insert the wall plugs (#10) and put in each a
drop of silicone.
1D. Secure the wall jamb using the 1 1/4˝ screws (#13).
WALL STUD
TOP VIEW TOP VIEW
2
2 13
10
2
13
1A
10
2
13
1C
1D
