TILLER - - MODEL NUMBER 917.293310

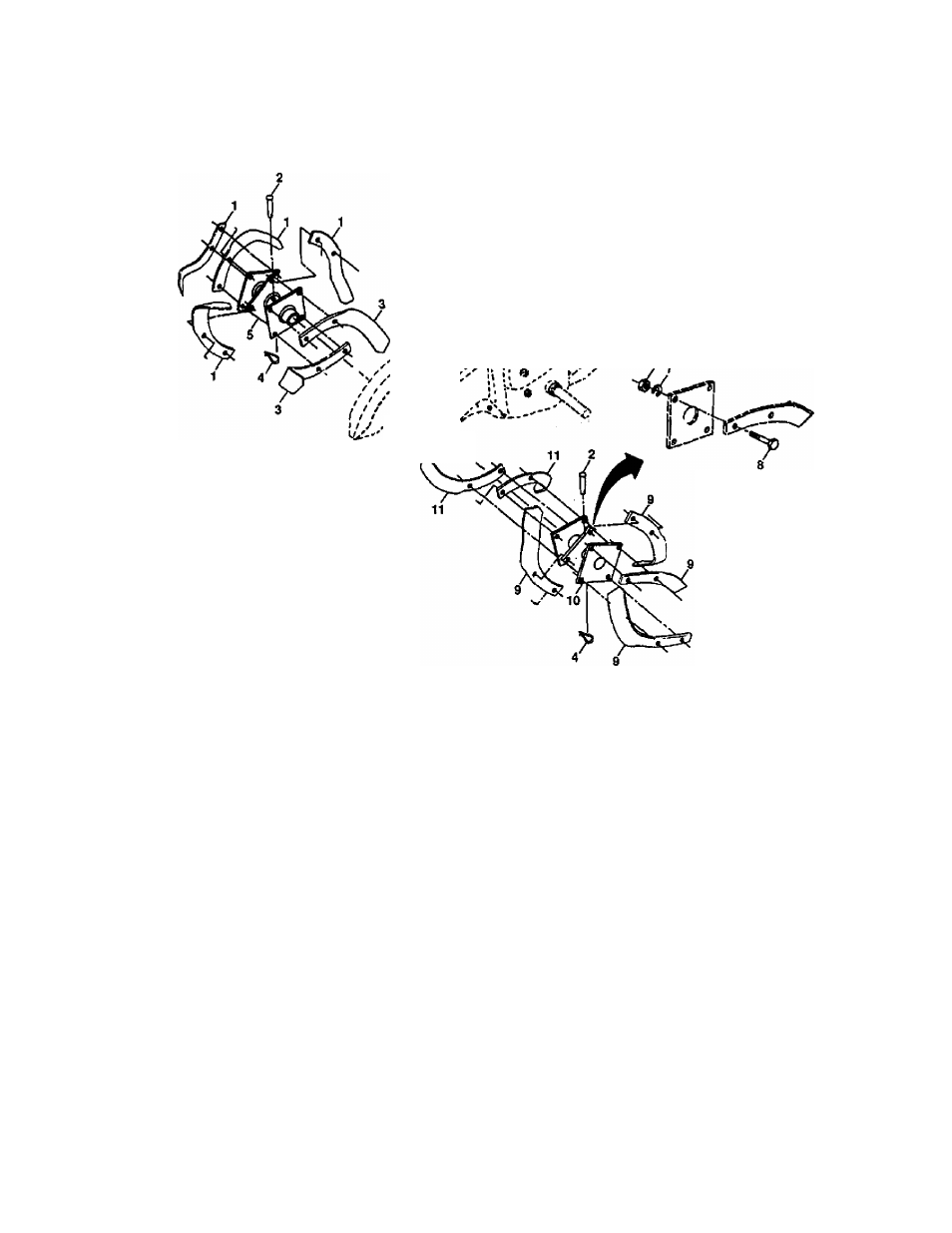

TINE ASSEMBLY
i ' ■
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 4459J Tine, Outer, L.H. 9 4460J Tine, Outer, R.H.
2 132673 Pin, Shear 10 132728 Assembly, Hub and Plate, R.H.
3 6554J Tine, Inner, LH. 11 6555J Tine, Inner, R.H.
4 163552 ’‘Clip, Halipin
5 132727 Assembly. Hub and Plate, LH.
6 73610600 Nut, Hex 3/8-24
• STANDARD HARDWARE - - PURCHASE LOCALLY
7 STD551137 ‘Washer, Lock 3/8
NOTE: All compohent dimensions given In U.S. Inches.
8 74610616 Bolt. Hex 3/8-24x1
If
1 lnch = 25.4 mm
