Craftsman 917.293310 - Manual (Page 24)

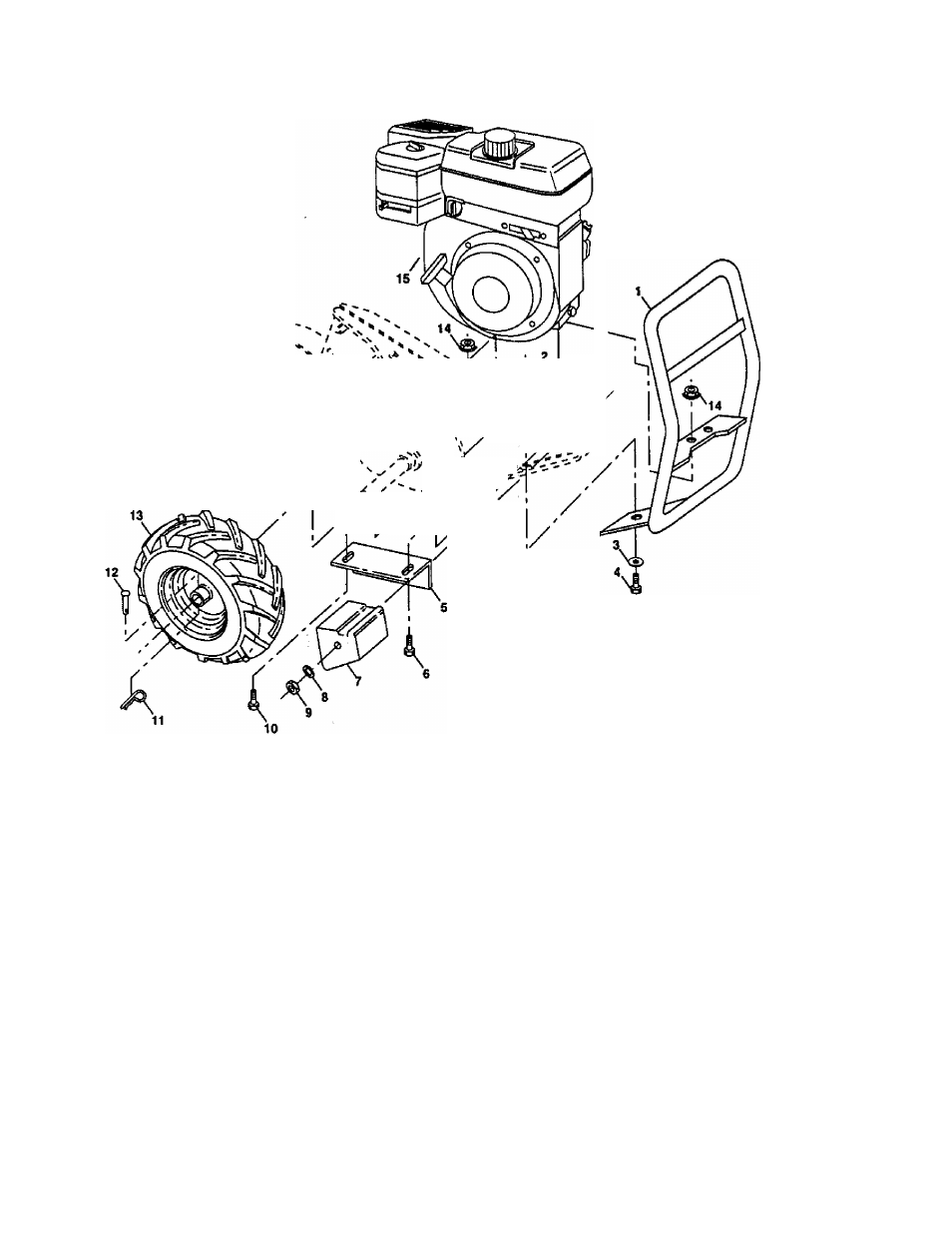

MAINFRAME, RIGHT SIDE
liRWIVliMbl I W I I tCvWWW ■
" I*’\ \ "<^i> ^L I
‘I / .' u V-
6> v\
i'i'-v-i
KEY PART
NO. NO.
1 166532
73970500
STD551031
STD523107
102332X
STD523120
102173X
8 STD551137
9 STD541037
10 74760524
2
3
4
5
6
7
DESCRIPTION
Bumper
Locknut, Hex, Flange 5/16-18
•Washer 11/32 x 11/16 x 16Ga.
Bolt, Hex 5/16-18x3/4
Bracket, Reinforcement
Bolt, Hex 5/16-18x2
Counter Weight, R.H.
•Washer, Lock 3/8
•Nut, Hex 3/8-16
Bolt, Hex 5/16-18x1-1/2
KEY PART
NO. NO. DESCRIPTION
11
12
13
14
15
STD624003 •Clip, Hairpin
126875X Rivet. Drilled
5015J Tire
128952 Rim
795R Tire Valve
STD541431 *Nut, Keps 5/16-18
...........
Engine, (See Breakdown)
Craftsman Model No.
121432-0124-El
STANDARD HWIDWARE - - PURCHASE LOCALLY
NOTE: All component dimensions given In U.S.inches.
1 inch = 25,4 mm
