TILLER - - MODEL NUMBER 917.293310

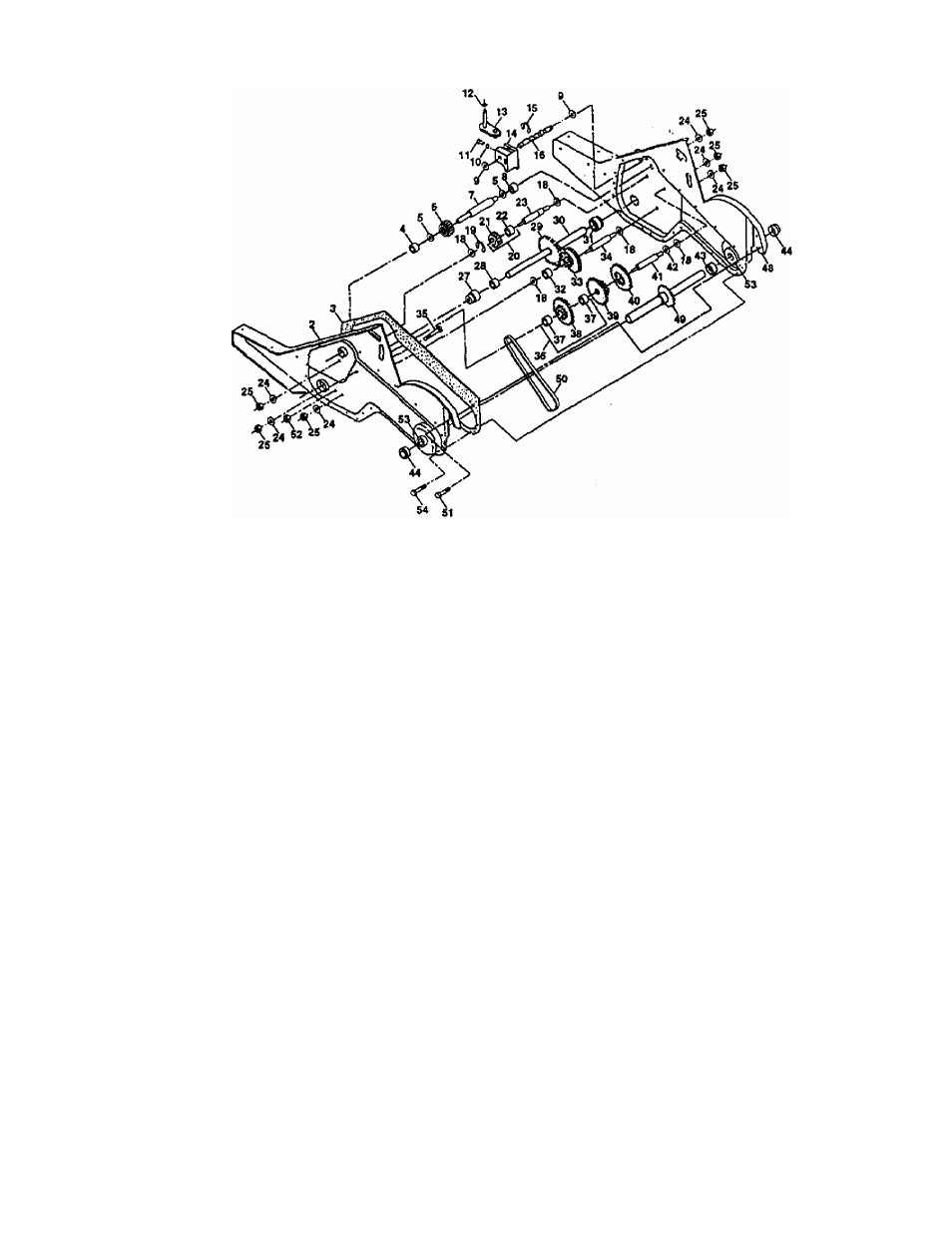

TRANSMISSION
KEY PART KEY PART
NO . NO. DESCRIPTION NO. NO. DESCRIPTION
1 165728 Transmission Assembiy (inciudes 30 150737 Ground Shaft Assembly
Key Nos. 2-52) 31 143008 Bearing, Shaft, Ground Drive R.H.
2 165729 Gearcase, LH. w/Bearing (Inciudes 32 106388X Spacer 0.70 x 1.00 x 1.150
Key No. 4) 33 102121X Sprocket and Gear Assembly
3 161963 Gasket, Gearcase 34 102112X Shaft, Reduction (2nd)
4 5020J Bearing, Needle 35 102101X Screw, Whiz, Lock 5/16-18x3-1/2
5 1370H Washer, Thrust 5/8 )< 1.10 x 1/32 36 154355 ^ Sprocket Assembiy w/Bearing
6 137335 Pinion, Input (Includes Key Nos. 37 and 38)
7 145101 Shaft, Input 37 4422J ■ Bearing, Ne^le
8 4895H Bearing, Needle 38 154356 Sprocket, Tine
9 154467 Washer, Seal 39 105345X . Gear, Cluster, Red 1st & 2nd
10 7392M Ball, Steel 40 105346X Gear, Reverse
11 100371K Spring, Shift, Fork 41 8358J Shaft, Reduction (1st)
12 106160X 0-Ring 42 4220R Washer, Thrust
13 142145 Arm, Shift 43 106146X Spacer 1.01 X 1.75x0.760
14 8353J Fork, Shift 44 155236 Seal Asm. OH
15 12000039 Ring, Klip 48 165732 Gearcase, R.H. w/Bearing (Include:
16 154466 Shafi Shift Key No. 8)
18 4358J Washer 49 132688 Shaft, Tine
19 12000040 Ring, Klip 50 106147X Chain, Roller #50-50 Pitch
20 102114X Gear, Assembly, Reverse Idler 51 17720408 Screw 1/4-20 X1/2
(Includes Key Nos. 21 and 22) 52 STD541031 •Nut, Hex 5/16-18
21 102115X Gear, Reverse Idler 53 165140 Beating Kit, Tine Shaft
22 6803J Bleating, Needle 54 17720412 Screw 1/4-20 x 3/4
23 102111X Shaft, Reverse Idler • ■ 6066J Grease, Plastilube #1
24 STD551143 •Washer, Lock 7/16
25 STD541143 •Nut, Hex 7/16-20 • STANDARD HARDWARE - - PURCHASE LOCALLY
27 143009 Bearing, Shaft, Ground Drive LH. NOTE: All component dimérisions given in U.S.inches.
28 106390X Spacer 0.765x1.125x1.23 11nch = 25.4 mm
29 102134X Chain #35-60 Pitch
45
