ASSEMBLY

THIS SNOW THROWER IS EQUIPPED WITH "TRAC-PLUS" AND ONLY

MOVES EFFECTIVELY WHEN ENGINE IS RUNNING

If your snow thrower must be moved without the aid of the engine, it will be easier to pull the snow thrower bnok-

ward by the handles, rather than pushing.

On start up, the track drive system may be tight and will loosen up as the snow thrower is used. After first use,
check the track for tension and adjust if necessary. See the Track Adjustment paragraph in the Service and Adjust-
mentá section of this manual. Check track adjustment and fasteners regularly.

CONTENTS OF SHIPPING CARTON

TOOLS REQUIRED FOR ASSEMBLY

1 - Snow thrower completely assembled except tor

tfte crank assembly, shifter lever knob, the upper

handle, and the chute deflector assembly.
P^rts Bag Containing:
Owner’s Manual (Not Shown)
Electric Starter Cord 9.5 Ft, (Not Shown)

1 - Knife (to cut carton and plastic ties)

2 - 1/2 inch Wrenches (or adjustable wrenches)
2 - 9/16 inch Wrenches (or adjustable wrenches)
2 - 3/4 inch Wrenches (or adjustable wrenches)

1 - Pair Pliers or Screwdriver (to spread cotter pin)

■■

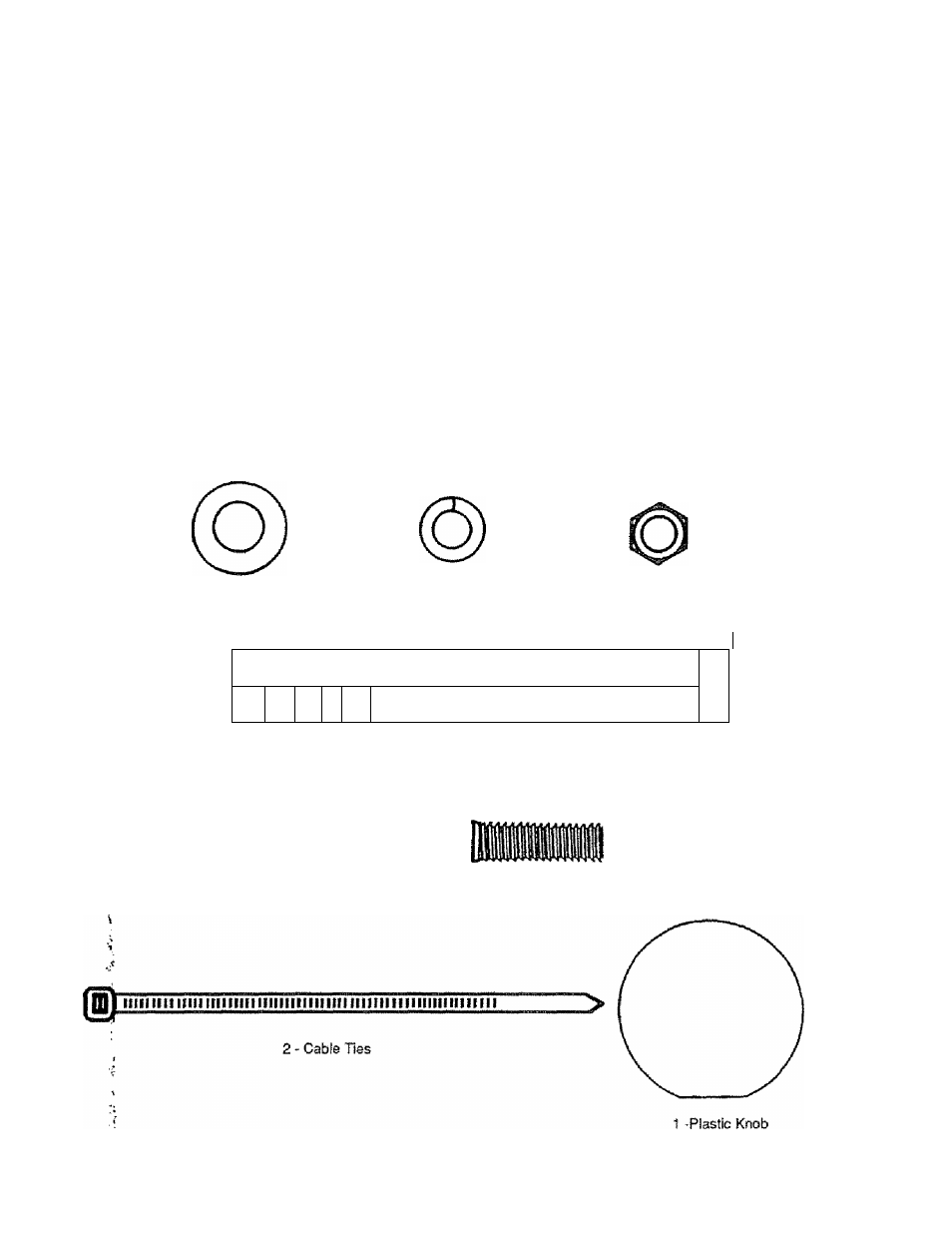

CONTENTS OF PARTS BAG

1 - 3/8 Inch
Flatwasher

1 - 3/8 Inch

Lockwasher

Hex Nut

^ ........................

/r^

1 1

( 5 / 1 6 - 1 8 x 2 inch Hex Head Boils)

2-5/16-18

Locknuts

1 - 3/8 -16 X 2 Inch

Hex Head Bolt
