CRAFTSMAN 8HP MODEL 987.889000 REPAIR PARTS

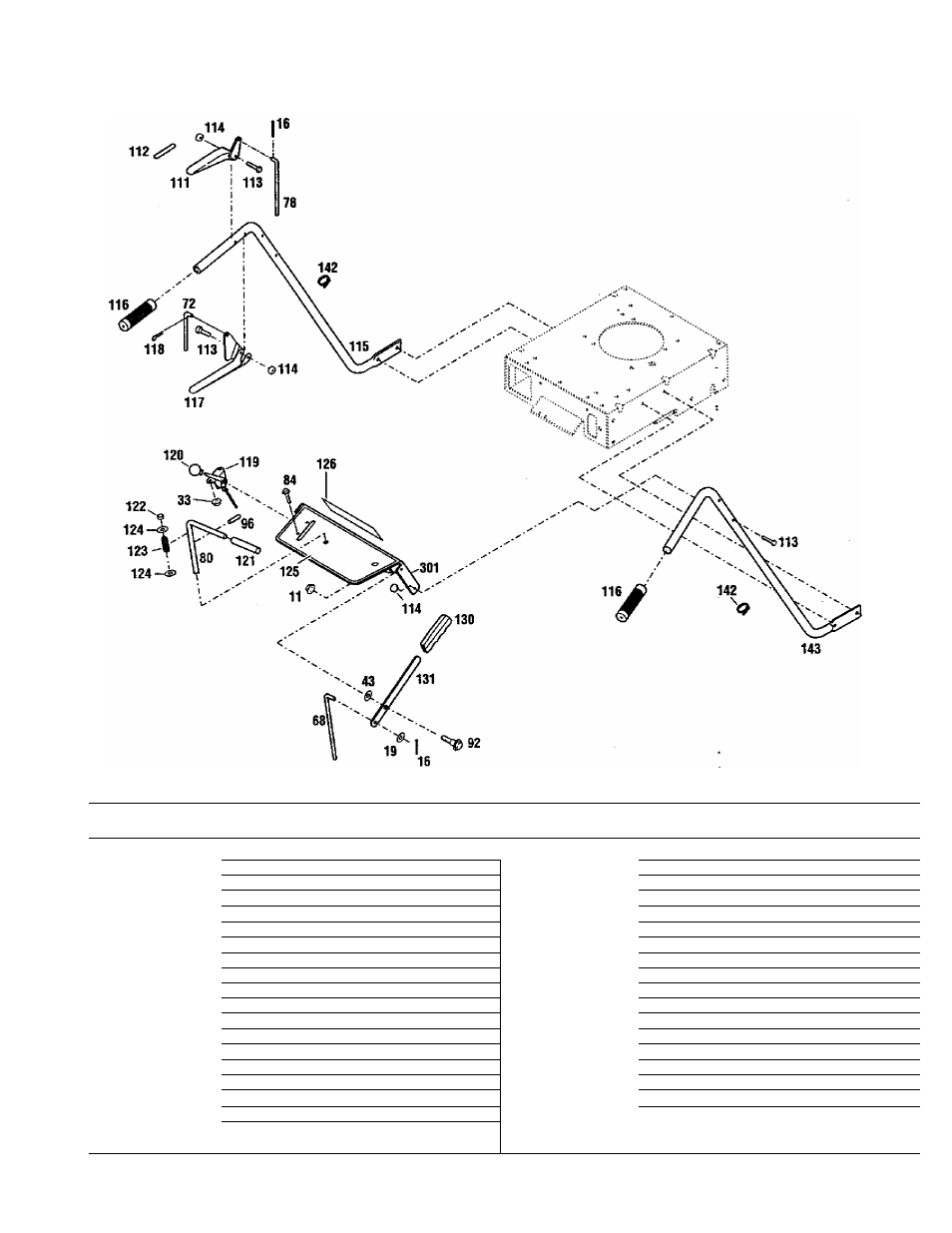

HANDLEBAR AND CONSOLE ASSEMBLY
110
Ref. Part Description Qty. Ref. Part Description Qty.
11 1186393 Flange Locknut, 3/8-16....................... .... 1 116 1703539 Handle Grip........................................ ... 2
16 1185147 Cotter Pin, 3/32 X 5/8........................ .... 2 117 1773605001 Control Handle.................................... ... 1
17 1721252 J-Clip............................................... .... 1 118 1717897 Hair Pin, 5/64..................................... ... 1
19 1107382 Flat Washer, 5/16.............................. .... 4 119 1915927 Throttle Control................................... ... 1
33 1186389 Flange Locknut. 1/4-20....................... .... 2 120 1737118 Knob................................................. ... 1
43 1702646 Flat Washer, 1/2................................ .... 1 121 1737041 Handle Grip........................................ ... 1
68 1769888 Upper Blade Rod................................ .... 1 122 1715716 Nylon Bushing...................................... ... 1
72 1773607 Upper Transmission Rod...................... .... 1 123 1721492 Compression Spring.............................. ... 1
78 1769872 Upper Brake Rod................................ .... 1 124 1107385 Flat Washer, 1/2.................................. .... 1
80 1769874 Shift Rod.......................................... .... 1 125 1768633 Warning Decal..................................... .... 1
84 1186308 Flange Lock Screw, 1/4-20 x 1/2........... .... 2 126 1915931 Logo Decal.......................................... .... 1
92 1703051 Shoulder Bolt.................................... .... 1 130 1764984 Handle Grip........................................ .... 1
96 1185279 Roll Pin, 1/4 X 2-1/4........................... .... 1 131 1768223 Mower Engage Lever............................. .... 1
110 1186329 Flange Lock Screw, 5/16 x 3/4.............. .... 4 142 1735531 Plastic Tie......... ................................ .... 5
111 1770445001 Control Handle.................................. .... 1 143 1764923001 Right Handlebar................................... .... 1
112 1768452 Operator Presence Control Decal.......... .... 1 172 1724491 Screw, 5/16-18x3/4"............................. .... 1
113 1915793 Screw, 1/4-20 x 1-3/4 - Grade 8........... .... 5 301 1915935 Console /tssembiy (Inct. Ref. 125) .... .... 1
114 1734398 Locknut, 1/4-20................................. .... 6
