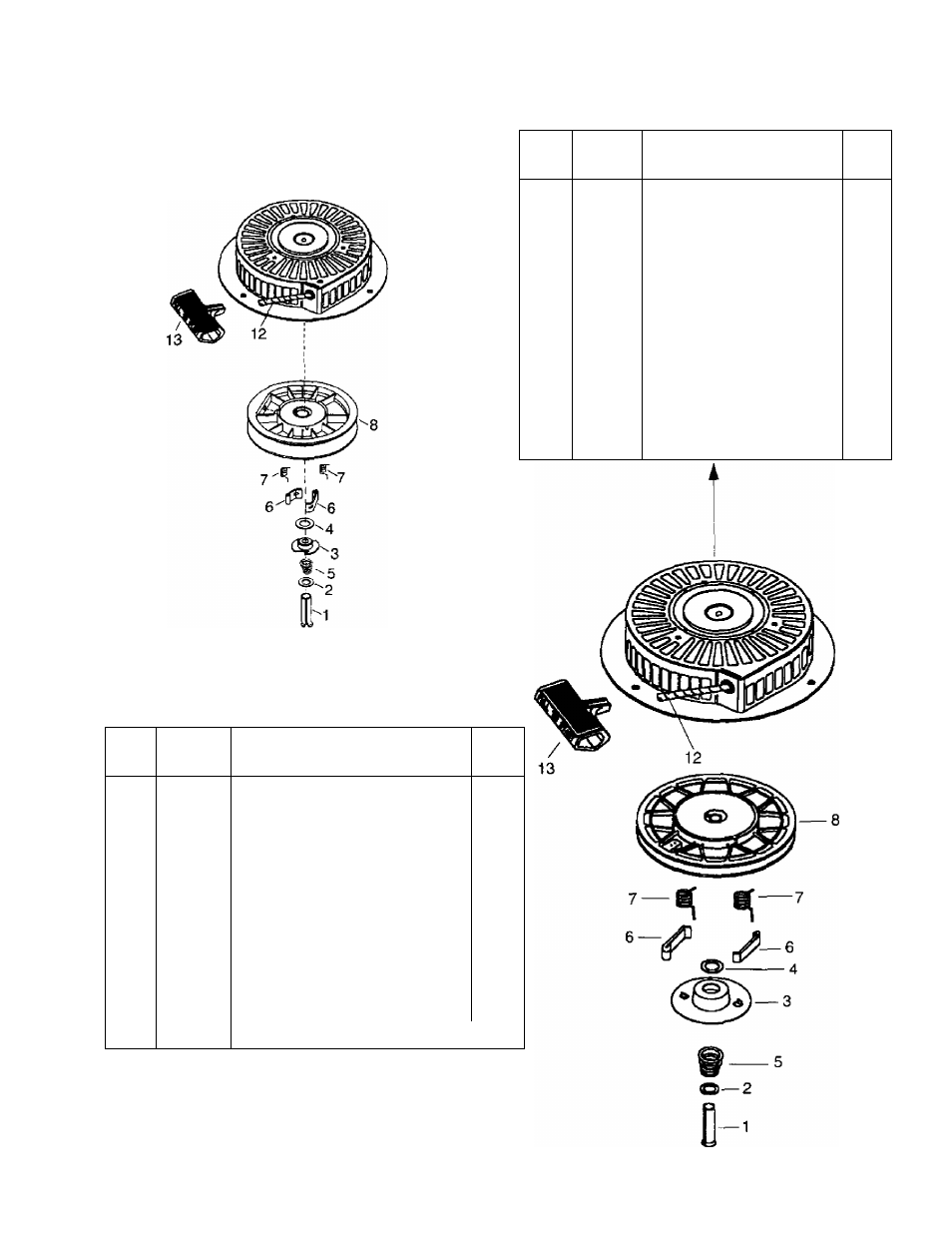

Craftsman 9 H.P. Horizontal Shaft Engine Model No. 143.999003 for Craftsman Log Splitter Model 247.794520
-11
Key
No.
Part No. Description Qty.
590746 Recoil Starter
1 590599A Spring Pin (IncI, 4) 1
2 590600 Washer 1
3 590679 Retainer 1
4 590601 Washer 1
5 590678 Brake Spring 1
6 590680 Starter Dog 2
7 590412 Dog Spring 2
8 590681 Pulley & Rewind Spring Assembly 1
11 590747 Starter Housing Assembly 1
12 590535 Starter Rope (Length 98" x 9/64" dia.)1
13 590701 Starter Handle 1
Key
No.
Part No. Description Qty.
590704 Recoil Starter
1 590599A Spring Pin (IncI. 4) 1
2 590600 Washer 1
3 590696 Retainer 1
4 590601 Washer 1
5 590697 Brake Spring 1
6 590698 Starter Dog 2
7 590699 Dog Spring 2
8 590700 Pulley & Rewind Spring Ass'y. 1
11 590705 Starter Housing Ass'y. 1
12 590535 Starter Rope ( 98” X 9/64" dia.) 1
13 590701 Starter Handle 1
