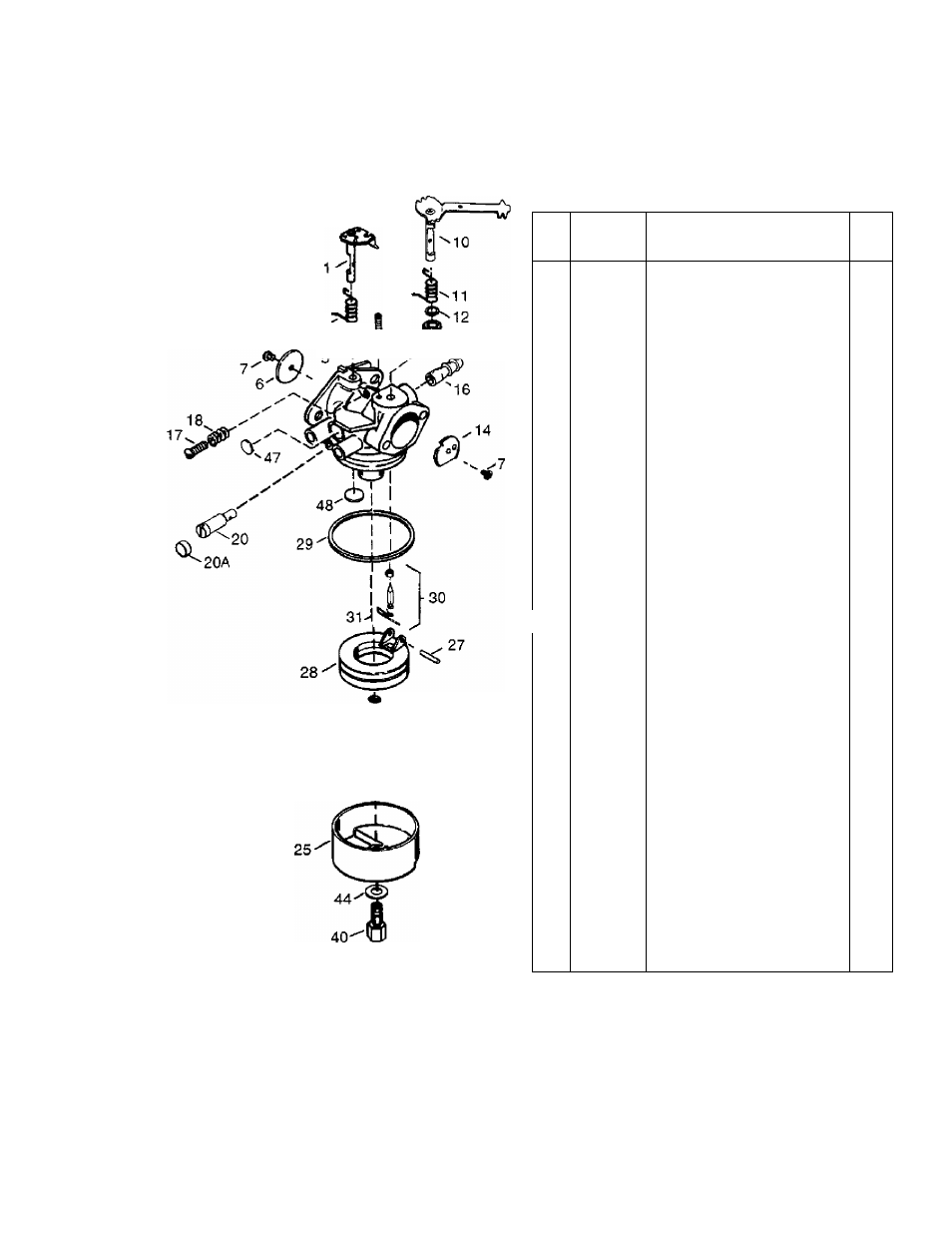

Craftsman 9 H.P. Horizontal Shaft Engine Model No. 143.999003 for Craftsman Log Splitter Model 247.794520
I'16 T'-3
'^37
36
*\37
Key
No.
Part No. Description Qty.
0 640112 Carburetor (IncI, 184 of Engine
Parts List)
1
1 631776A Throttle Shaft & Lever Assembly 1
2 631970 Throttle Return Spring 1
4 631184 Dust Seal Washer 1
5 631183 Dust Seal (Throttle) 1
6 640109 Throttle Shutter 1
10 632740 Choke Shaft & Lever Assembly 1
11 632043 Choke Return Spring 1
12 631184 Dust Seal Washer 1
13 631183 Dust Seal (Choke) 1
14 631753 Choke Shutter 1
15 630735 Choke Positioning Spring 1
16 632164 Fuel Fitting 1
17 651025 Throttle Crack Screw/ldle Speed
Screw
1
630766 Tension Spring 1
20 640027 Idle Restrictor Screw 1
20A 640053 Idle Restrictor Screw Cap 1
25 631867 Float Bowl 1
27 631024 Float Shaft 1
28 632019 Float 1
29 631028 Float Bowl "O" Ring 1
30 631021 Inlet Needle, Seat & Clip (IncI.
31)
1
31 631022 Spring Clip 1
36 640113 Main Nozzle Tube 1
37 632547 "O" Ring, Main Nozzle Tube 2
40 640114 High Speed Bowi Nut 1
44 27110 Bowl Nut Washer 1
47 630748 Welch Plug, Idle Mixture Well1
48 631027 Welch Plug, Atmospheric Vent 1
25
