UNITS WITHOUT BASE RAIL — If accessory rigging
brackets are to be used for rigging, install them as follows:
Secure screws and paint protectors solidly against unit
basepan to hold lifting brackets in position.
Never use lifting brackets when the temperature is be-
low −10 F.
Never exceed 200 lbs per bracket of lifting force.
Never use lifting brackets for lifting other models of air-
conditioning units.
Lifting point should be directly over the unit center of
gravity.
1. Position brackets as close to the corners of unit as pos-
sible. Be sure brackets are well outside of center of grav-
ity. (See Fig. 2, 4, 6, 8, and 12.).
2. Position paint protectors and foam strips between screws
and painted surface of unit. Tighten screws until they make
contact with the paint protectors.
3. Secure device or hook of sufficient strength to hole in bracket
as shown in detail ‘‘A’’ of Fig. 12.
4. If wood top is available, use it for a spreader bar to pre-
vent straps from damaging unit. If wood top is not avail-
able, use spreader bars of sufficient length.

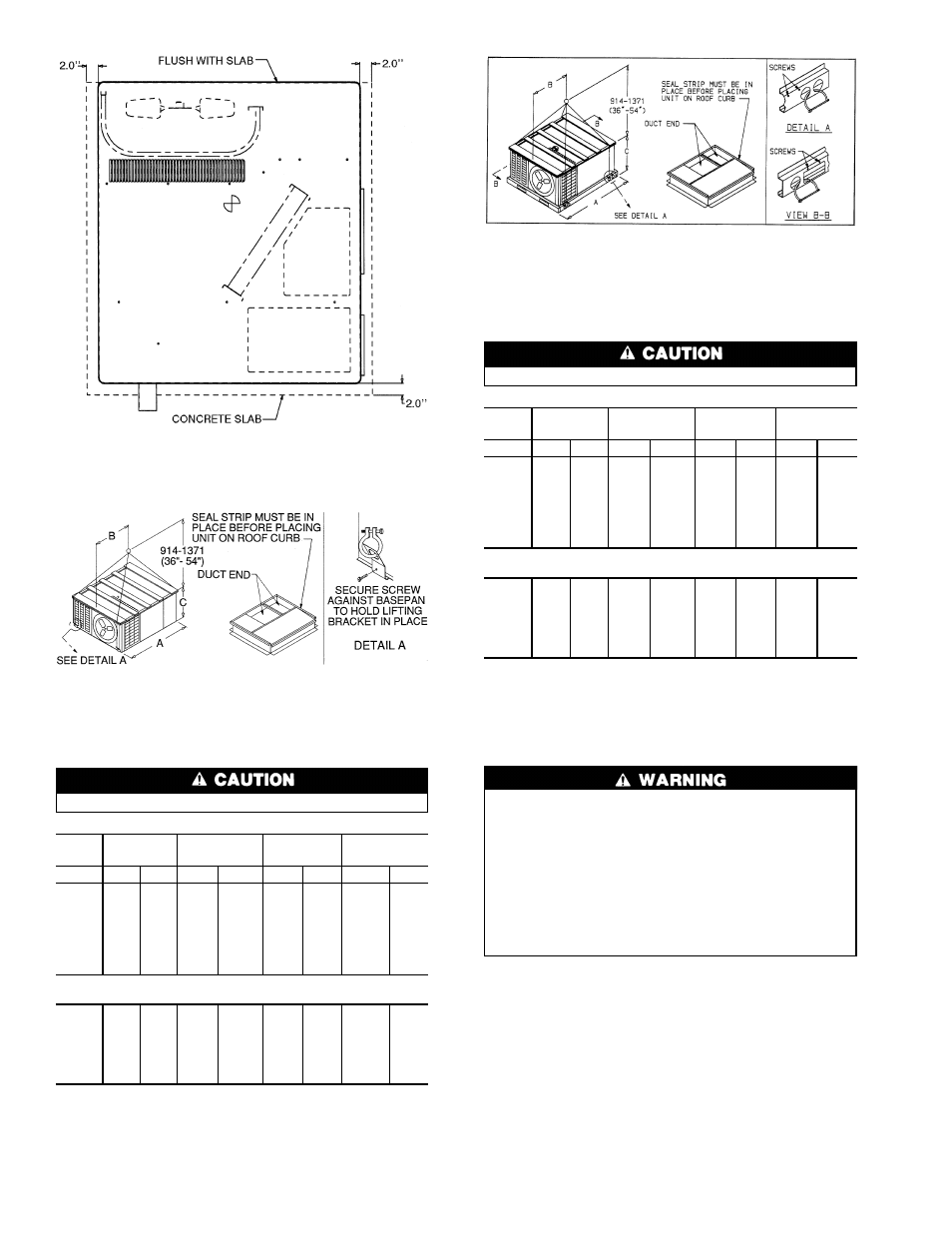

Fig. 11 — Slab Mounting Details
NOTICE TO RIGGERS
Hook rigging shackles through holes in lifting brackets, as shown in
Detail ‘‘A.’’ Lifting brackets to be centered around the unit center of
gravity. Use wooden top skid when rigging, to prevent rigging straps
from damaging unit.
All panels must be in place when rigging.
UNIT
48SS
MAX
WEIGHT
A B C
Size lb kg in. mm in. mm in. mm
018 332 150
49.4 1255
24.3 618 24.85 631
024 375 170 22.4 570 24.85 631
030 384 174 22.3 565 24.85 631
036 408 185 22.0 559 24.85 631
042 447 203 22.5 571 28.85 733
048 486 220 21.0 533 34.85 885
060 525 238 21.5 545 34.85 885
UNIT
48SX
024 405 184
49.4 1255
22.8 579 28.9 733
030 408 185 22.4 569 28.9 733
036 438 199 22.4 569 28.9 733
042 463 210 22.8 579 34.9 885
048 494 224 21.1 536 34.9 885
060 525 238 21.5 545 34.9 885
Fig. 12 — Suggested Rigging for Units Without
Base Rail
NOTICE TO RIGGERS
Hook rigging shackles through holes in lifting brackets, as shown in
Detail ‘‘A.’’ Lifting brackets to be centered around the unit center of
gravity. Use wood top skid when rigging, to prevent rigging straps
from damaging unit. Remove 4 screws to slide wood support through
rectangular hole in rail.
All panels must be in place when rigging.
UNIT
48SS
MAX
WEIGHT
A B C
Size lb kg in. mm in. mm in. mm
018 320 145
49.4 1255
24.4 619 28.2 715
024 363 165 22.6 574 28.2 715
030 380 172 22.5 571 28.2 715
036 396 180 22.2 563 28.2 715
042 435 197 22.6 574 32.2 816
048 474 215 21.2 538 38.2 969
060 513 233 21.6 549 38.2 969
UNIT
48SX
024 393 178
49.4 1255
22.9 582 32.2 816
030 396 180 22.6 574 32.2 816
036 426 193 22.5 571 32.2 816
042 451 205 22.9 582 38.2 969
048 482 219 21.3 540 38.2 969
060 513 233 21.6 549 38.2 969
Fig. 13 — Suggested Rigging for Units With
Optional Base Rail
