PART NUMBER ‘‘A’’
FLAT
CURB
CPRFCURB001A00 8 Љ [203]
CPRFCURB002A00 11 Љ [279]
CPRFCURB003A00 14 Љ [356]
NOTES:
1. Roof curb must be set up for unit being installed.
2. Seal strip must be applied as required for unit being installed.
3. Dimensions in [
] are in millimeters.
4. Roof curb is made of 16 gage steel.
5. Attach ductwork to curb (flanges of duct rest on curb).
6. Service clearance 4 ft on each side.
7. Direction of airflow.
8. Insulated panels: 1-in. thick fiberglass 1 lb density.

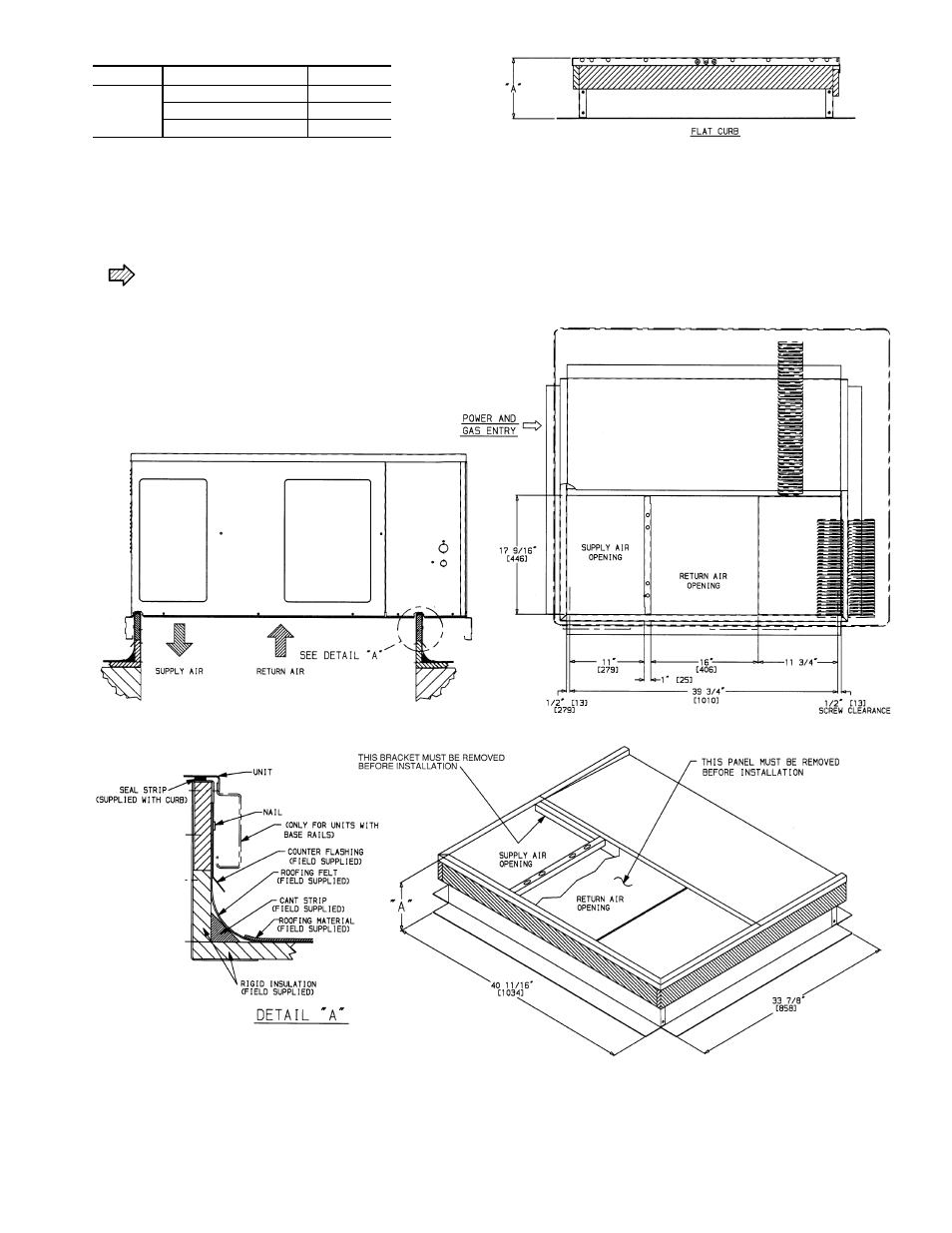

Fig. 10 — Roof Curb Dimensions
11
