These symbols may appear on your Tiller or in literature supplied with the product.

Learn and understand their meaning.

i F M B ^ © e

■niilNQ fOfiWAM) MEUTWL BEVERS6 CAWiON BtölMS EWINE FAST

CSRWAHNMa « OFF

SÌ.OW

CHOKE FUa OIL

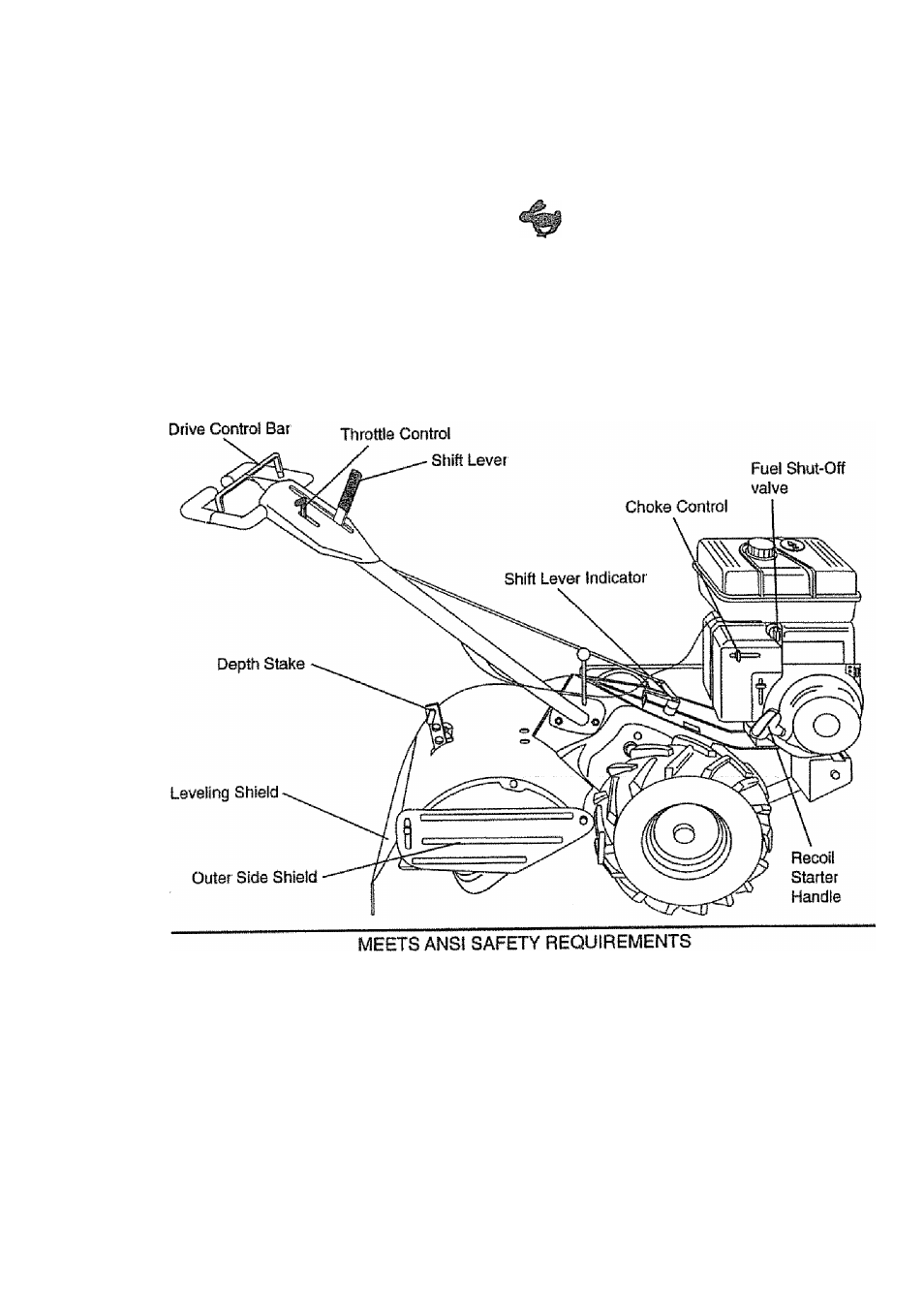

KNOW VOUR TILLER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TILLER.

Compare the illustrations with your tiller to familiarize yourself with the location of vari
ous controls and adjustments. Save this manual for future reference.

Our tillers conform to the safety standards of the American National Standards Institute.

DRIVE CONTROL BAR - Used to engage

tines.

DEPTH STAKE « Controls depth at which

tier will dig.

LEVELING SHIELD - Levels tilled soil.

OUTER SIDE SHIELD - Adjustable to pro

tect small plants from being buried.

THROTTLE CONTROL - Used to control

erìgine speed.

SHIFT LEVER - Used to shift transmission
gears.

SHIFT LEVER INDICATOR - Shows which
gear the transmission is in.

RECOIL STARTER HANDLE - Used to

start the engine.

CHOKE CONTROL - Used when starting
a cold engine.
