Craftsman 917.293301 - Manual (Page 25)

TILLER - » MODEL NUMBER 917.293301

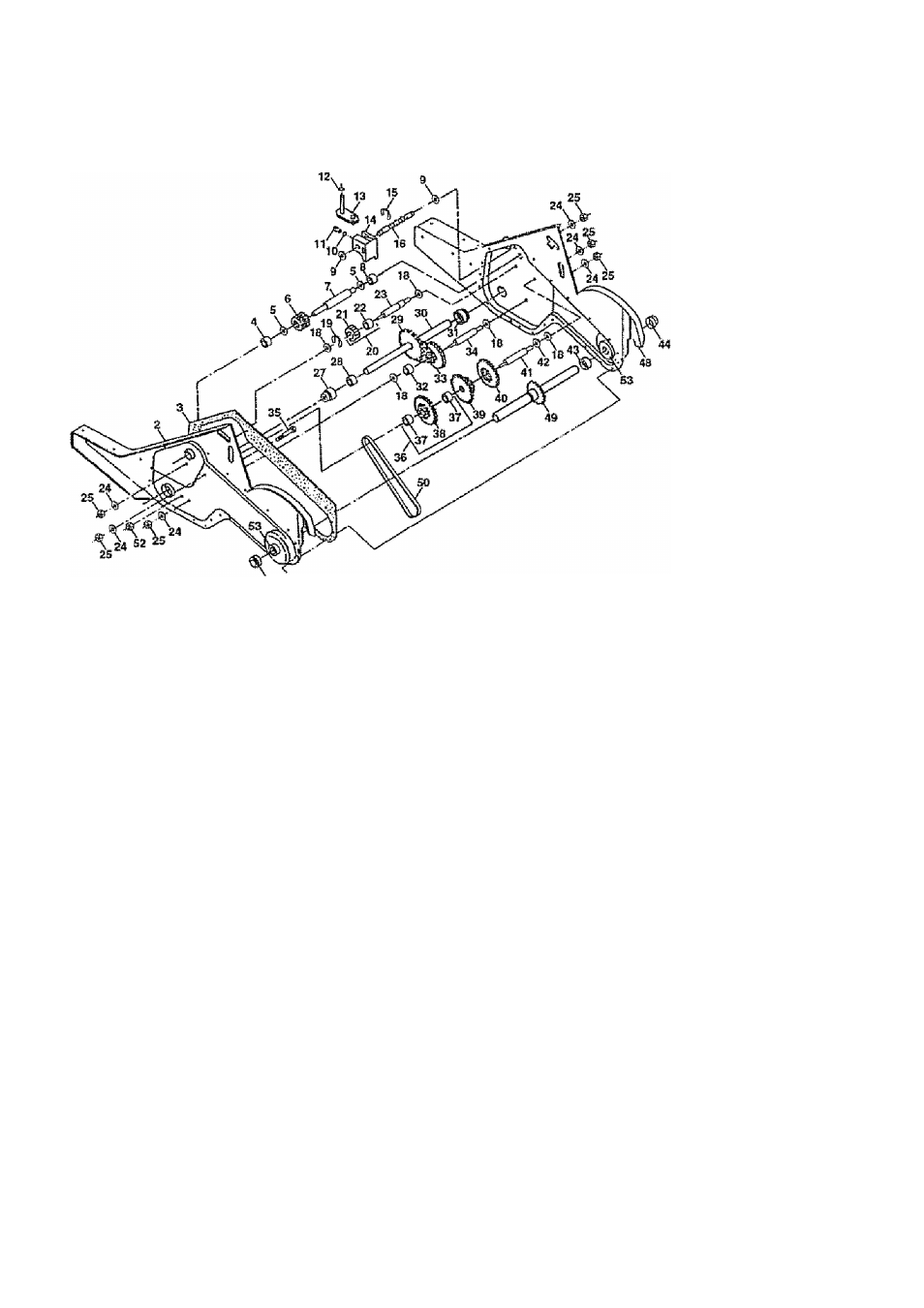

TRANSMISSION
44 >
Si
KEY PART DESCRIPTION 26 106390X Spacer 0,765 X 1,125 X 1.23
29 102134X Chain #35-50 Pitch
I^Wii
30 150737 Ground Shaft Assembly
1 154354 Transmission Assembiy
31 143008 Bearing, Shaft, Ground Drive
(Includes Key Nos. 2*52)
R.H
2 150698 Gearcase, L H. w/Beartng
32 106388X Spacer 0,70x1.00x1.150
(Includes Key No. 4)
33 102121X Sprocket and Gear Assembly
3 106211X Gasket, Gearcase
34 102112X Shaft, Reduction (2nd)
4 5020J Bearing, Needle
35 102101X Screw, Whiz, Look 5/16*18 x 3-
5 1370H Washer, Thrust 5/8 x 1.10 x
1/2
1/32
36 1543S5 Sprocket Assembly w/Bearing
6 13f33S Pinion, Input
(Includes Key Nos, 37 and 38)
7 145101 Shaft, Input
37 4422J Bearing, Needle
8 4895H Bearing, Needle
38 154356 Sprocket, Tine
9 154467 Washer, Seal
39 105345X Gear, Cluster, Red 1st & 2nd
10 7392M Ball, Steel
40 105346X Gear, Reverse
11 100371K Spring, Shift, Fork
41 8358J Shaft, Reduction (1st)
12 106160X 0*Rlng
42 4220R Washer, Thrust
13 142145 Arm, Shift
43 106146X Spacer 1.01 X 1.75x0.760
14 8353J Fork, Shift
44 155236 Seal Asm. Oil
15 12000039 Ring, Kitp
48 150700 Gearcase, RH. w/Bearing
16 15446B Shaft, Shift (Includes Key No, 8)
16 4358J Washer 49 132688 Shaft, Tine
19 12000040 Ring, Klip
50 106147X Chain, Roller #50-50 Pitch
20 102114X Gear, Assembly, Reverse idler
51 17720408 Screw 1/4-20 x 1/2
(Includes Key Nos 21 and 22)
52 73220500 'Nut, Hex 5/16-18
21 102115X Gear, Reverse Idler
53 122204X Bearing Kit, Tine Shaft
22 6803J Searing, Needie
6066J Grease, Piastilube #1
23 102111X Shaft, Reverse Idler
24 STD551143 'Washer, Lock 7/16
' STANDARD HARDWARE - - PURCHASE LOCALLY
25 STD541143 'Nut, Hex 7/16-20
NOTE: All component dimensions Given in U.S.inches.
27 143009 Bearing, Shaft, Ground Drive
LH, .
1 inch =25.4 mm
25
